Features: small floor area, simple and convenient installation, large batch operation can be realized for materials with simple drying process. For the replacement and transformation of old drying (coal, fuel, firewood, etc.), the investment cost is low, the performance price ratio is high, and the operation is simple and durable. Normal temperature or low temperature units can be selected.
Application fields: agricultural and sideline product processing, forest product processing, aquatic product processing, pharmaceutical and food processing, industrial product processing, etc;
烘干类型
循环送风式（5P/15P）
运行温度范围
-10～43°C
烘干温度范围
10～75°C
产品型号
ZKH-18GY
制热量（Kw）
18
输入功率（Kw）
5
运行电流（A）
8.8
电源型式V/ph/Hz
380V/3N～/50Hz
压缩机形式
涡旋
压缩机数量（台）
1
冷媒
R134a
外形尺寸（L/M/H）（mm）
1500*1560*2060
托盘尺寸（mm）
自选
托盘层数（mm）
自选
净重（kg）
245
额定风量（m³/h）
8000
送风静压（Pa）
400
电加热功率（Kw）
6
除湿量（Kg/h）
18
烘干类型
循环送风式（5P/15P）
运行温度范围
-10～43°C
烘干温度范围
10～75°C
产品型号
ZKH-60GY
制热量（Kw）
60
输入功率（Kw）
12
运行电流（A）
22
电源型式V/ph/Hz
380V/3N～/50Hz
压缩机形式
涡旋
压缩机数量（台）
1
冷媒
R134a
外形尺寸（L/M/H）（mm）
1850*1250*1700
托盘尺寸（mm）
自选
托盘层数（mm）
自选
净重（kg）
450
额定风量（m³/h）
12000
送风静压（Pa）
400
电加热功率（Kw）
12
除湿量（Kg/h）
40

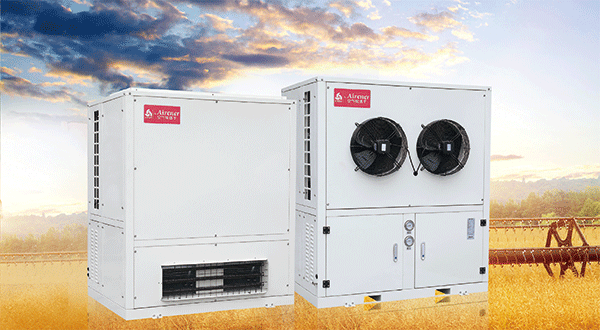

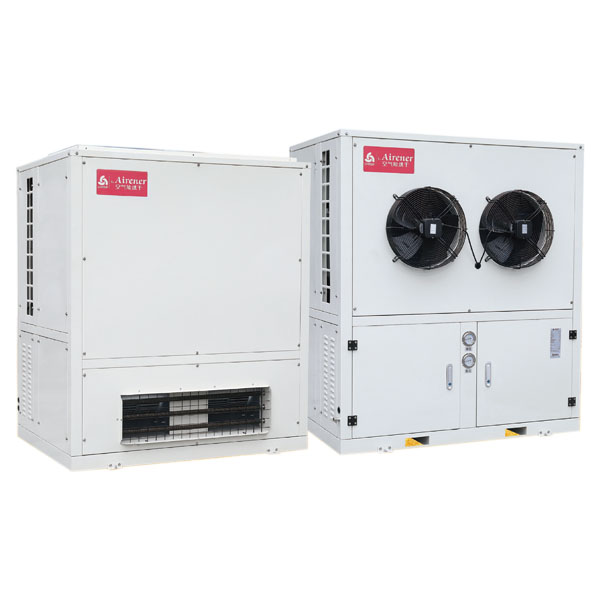

| Split open-loop unit (moisture exhaust type) | ||||||
| Drying type | Circulating air supply type | Drying type | Circulating air supply type | |||
| Drying temperature range | —10～43℃ | Drying temperature range | —10～43℃ | |||
| Drying temperature range | 10～75℃ | Drying temperature range | 10～75℃ | |||
| Product model | Company | ZKH-18GY | Product model | Company | ZKH-60GY | |
| Heating capacity | Kw | 18 | Heating capacity | Kw | 60 | |
| Input power | Kw | 5 | Input power | Kw | 12 | |
| Operating current | A | 8.8 | Operating current | A | 22 | |
| Power supply type | V/ph/Hz | 380V/3N～/50Hz | Power supply type | V/ph/Hz | 380V/3N～/50Hz | |
| Compressor type | / | vortex | Compressor type | / | vortex | |
| Number of compressors | platform | 1 | Number of compressors | platform | 1 | |
| Refrigerant | / | R134A | Refrigerant | / | R134A | |
| Overall dimensions | mm | 1500X1560X2060 | Overall dimensions | mm | 1850X1250X1700 | |
| （L/M/H） | （L/M/H） | |||||
| Tray size | mm | Optional | Tray size | mm | Optional | |
| Number of pallet layers | layer | Optional | Number of pallet layers | layer | Optional | |
| Net weight | kg | 245 | Net weight | kg | 450 | |
| Rated air volume | ㎥/h | 8000 | Rated air volume | ㎥/h | 12000 | |
| Static pressure of air supply | Pa | 400 | Static pressure of air supply | Pa | 400 | |
| Electric heating power | Kw | 6 | Electric heating power | Kw | 12 | |
| Dehumidification capacity | Kg/h | 18 | Dehumidification capacity | Kg/h | 40 | |
