Features: 1. Special site, high cost performance, simple operation.
2. No exhaust gas will be discharged, and toxic and polluting materials will not be leaked when drying, so as not to pollute the environment.
3. Siemens (PLC) industrial control system, automatic streamlined operation, modular design, high-efficient dehydration,
Application field: domestic sludge and industrial sludge (customized production unit)
类型
风冷机组热泵
产品型号
RFM-30
制热量（Kw）
32
制冷量（Kw）
30
制热额定功率（Kw）
10.8
制冷额定功率（Kw）
11.1
最大输入功率（Kw）
16
最大输入电流（A）
29
工作电源（A）
380V/3N～/50HZ
进出水压降（kPa）
30
排/吸气侧最高工作压力（Mpa）
3.2/1.0
高/低压侧最大允许压力（Mpa）
3.2
运行制冷剂及注入量（kg）
R22/7
防触电等级
1类
防护等级
IPX4
防水等级
IPX4
机组噪音（dB(A)）
62
重量（kg）
320
机组尺寸（mm）
1160*900*2105
类型
风冷机组热泵
产品型号
RFM-65T
制热量（Kw）
80
制冷量（Kw）
65
制热额定功率（Kw）
65
制冷额定功率（Kw）
8.6
最大输入电率（A）
22
最大输入电流（A）
28
工作电源（A）
380V-415V/3N～/50HZ
进出水压降（kPa）
46
排/吸气侧最高工作压力（Mpa）
3.2/1.0
高/低压侧最大允许压力（Mpa）
3.2
运行制冷剂及注入量（kg）
R22/7.0
防触电等级
1类
防护等级
IPX4
防水等级
IPX4
机组噪音（dB(A)）
68
重量（kg）
650
机组尺寸（mm）
1994*894*2105
类型
风冷机组热泵
产品型号
RFM-130/F
制热量（Kw）
140
制冷量（Kw）
130
制热额定功率（Kw）
43
制冷额定功率（Kw）
44
最大输入电率（A）
56
最大输入电流（A）
102
工作电源（A）
380V-415V/3N～/50HZ
进出水压降（kPa）
40
排/吸气侧最高工作压力（Mpa）
4.2/1.6
高/低压侧最大允许压力（Mpa）
4.2
运行制冷剂及注入量（kg）
R22/24.8
防触电等级
1类
防护等级
IPX4
防水等级
IPX4
机组噪音（dB(A)）
68
重量（kg）
1100
机组尺寸（mm）
1990*1680*2105

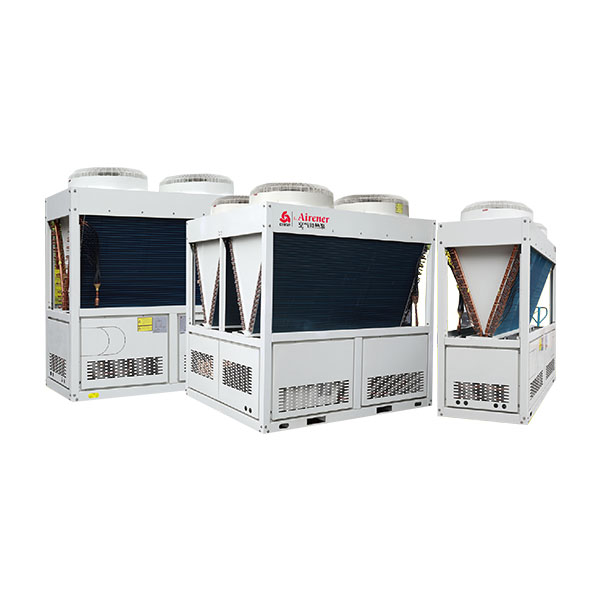

| Air cooled double temperature heat pump unit | ||
| type | Air cooled double temperature heat pump | |
| Product model | Company | RFM-130/F |
| Heating capacity | kW | 32 |
| Refrigerating capacity | kW | 30 |
| Heating rated power | kW | 10.8 |
| Refrigeration rated power | kW | 11.1 |
| Maximum input power | kW | 16 |
| Maximum input current | A | 29 |
| Working power supply | V/ph/Hz | 380V/3N～/50HZ |
| Inlet and outlet water pressure drop | kPa | 30 |
| Maximum working pressure at exhaust/suction side | Mpa | 2.8/1.0 |
| Maximum allowable pressure at high/low pressure side | Mpa | 2.8 |
| Operating refrigerant and injection amount | kg | R22/7 |
| Anti electric shock level | / | Category 1 |
| Degree of protection | / | IPX4 |
| Waterproof grade | / | IPX4 |
| Unit noise | dB(A) | 62 |
| weight | kg | 320 |
| Unit size | mm | 1160*900*2105 |
| Air cooled double temperature heat pump unit | ||
| type | Air cooled double temperature heat pump | |
| Product model | Company | RFM-65T |
| Heating capacity | kW | 69 |
| Refrigerating capacity | kW | 65 |
| Heating rated power | kW | 18.6 |
| Refrigeration rated power | kW | 22 |
| Maximum input power | kW | 23 |
| Maximum input current | A | 51 |
| Working power supply | V/ph/Hz | 380V/3N～/50HZ |
| Inlet and outlet water pressure drop | kPa | 30 |
| Maximum working pressure at exhaust/suction side | Mpa | 2.8/1.0 |
| Maximum allowable pressure at high/low pressure side | Mpa | 2.8 |
| Operating refrigerant and injection amount | kg | R22/12.4 |
| Anti electric shock level | / | Category 1 |
| Degree of protection | / | IPX4 |
| Waterproof grade | / | IPX4 |
| Unit noise | dB(A) | 68 |
| weight | kg | 850 |
| Unit size | mm | 2000*900*2200 |
| Air cooled double temperature heat pump unit | ||
| type | Air cooled double temperature heat pump | |
| Product model | Company | RFM-130/F |
| Heating capacity | kW | 140 |
| Refrigerating capacity | kW | 130 |
| Heating rated power | kW | 43 |
| Refrigeration rated power | kW | 44 |
| Maximum input power | kW | 56 |
| Maximum input current | A | 102 |
| Working power supply | V/ph/Hz | 380V/3N～/50HZ |
| Inlet and outlet water pressure drop | kPa | 40 |
| Maximum working pressure at exhaust/suction side | Mpa | 2.8/1.0 |
| Maximum allowable pressure at high/low pressure side | Mpa | 2.8 |
| Operating refrigerant and injection amount | kg | R22/24.8 |
| Anti electric shock level | / | Category 1 |
| Degree of protection | / | IPX4 |
| Degree of protection | / | IPX4 |
| Unit noise | dB(A) | 68 |
| weight | kg | 1100 |
| Unit size | mm | 1990*1680*2105 |
