Selling points of heating
One machine for multiple purposes, heating in winter, cooling in summer
Patented defrosting technology, more stable heating
Under low temperature environment, the outlet water temperature can still reach 50 ℃, which can not only meet the requirements of floor heating and fan panel heating water temperature, but also meet the requirements of radiator heating water temperature
Modular design to meet different heating needs
Twelve protection functions, fault self diagnosis and information prompt, faster and more convenient after-sales maintenance
Adopt environment-friendly refrigerant, zero emission to the atmosphere
The technology of air supplement and enthalpy increase is adopted to ensure stable operation above - 30 ℃ and low operating noise;
Applicable to: household and central heating (such as families, schools, governments, hospitals, factories, hotels, villas, beauty salons, etc.)
型号
DKZCN-14/DF
额定工况(7°C) 制热量
14000W
输入功率/电流
4200W/19.7A
COP
3.33W/W
名义工况（-12°C） 制热量
9500W
输入功率/电流
4298W/20.1A
COP
2.21W/W
IPLV(H)
2.71W/W
制冷工况（35°C） 制冷量
10600W
输入功率/电流
4233W/19.7A
COP
2.51W/W
建议供热面积
60~100m³
电源规格
220V/50Hz
工作温度范围
-30~43°C
制冷剂
R410A
压缩机
变频（滚动活塞）旋转式压缩机×1
水路接口
DN25（内牙）
水流量（-12°C）
1.64m³/h
换热器 水侧
高效罐
风侧
翅片式换热器
噪音
65dB(A)
风机类型
轴流风机x2
出风形式
侧出
外形尺寸
1120x430x1265mm（含底脚）
净重
148kg
| Technical parameters of heating constant frequency low temperature cooling and heating water circulation | ||
| Product model | DKZCN-14/DF | |
Rated working condition (7℃) | Heating capacity | 14000W |
| Input power/current | 4200W/19.1A | |
| COP | 3.33W/W | |
Nominal working condition (-12℃) | Heating capacity | 8600W |
| Input power/current | 3891W/18.2A | |
| COP | 2.21W/W | |
| IPLV(H) | 2.73W/W | |
Refrigeration condition (35℃) | Refrigerating capacity | 10000W |
| Input power/current | 4000W/18.8A | |
| COP | 2.51W/W | |
| Power specifications | 220V/50Hz | |
| Operating temperature range | -30～43℃ | |
| cryogen | R22 | |
| Waterway interface | DN25 (internal tooth) | |
| Water flow (35 ℃ cooling is recommended) | 1.72m³/h | |
Heat exchanger | Water side | High efficiency tank |
| Windward side | Finned heat exchanger | |
| noise | 64dB(A) | |
| Fan type | Axial flow fan × two | |
| Air outlet form | be born of a concubine | |

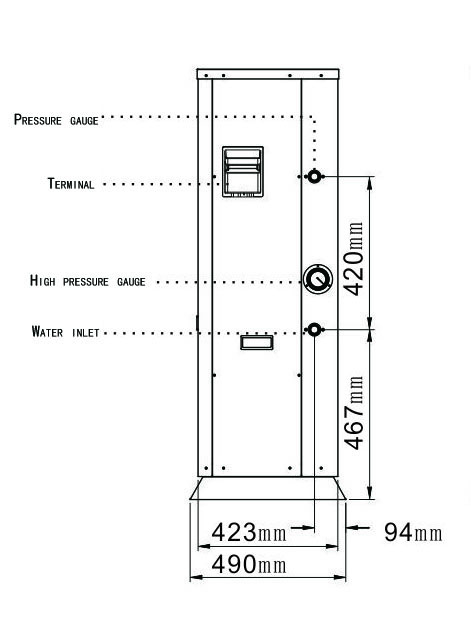

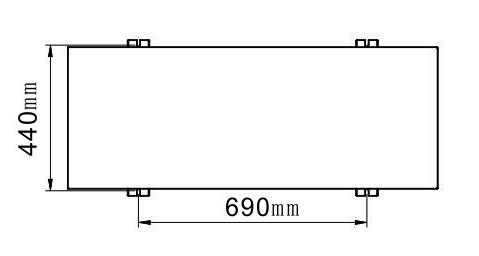

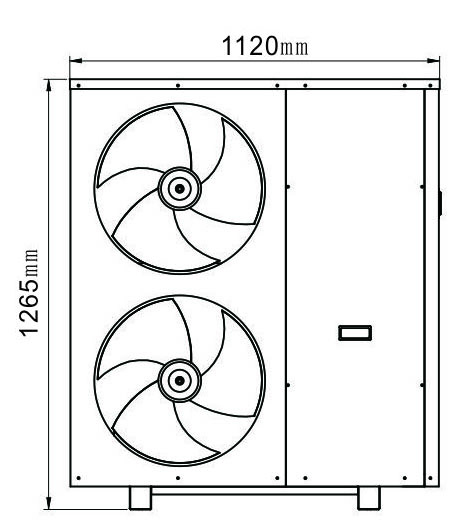

| Overall dimensions | one thousand one hundred and twenty × four hundred and thirty × 1265mm (including footing) | |
| Net weight | 148kg | |
Rated working condition: under the ambient temperature of 7 ℃/6 ℃ and the effluent temperature of 45 ℃; Nominal working condition: under the ambient temperature of - 12 ℃/- 14 ℃, the water temperature is 41 ℃; Refrigeration working condition: under the ambient temperature of 35 ℃, the water temperature is 7 ℃; The above parameters are for reference only, see the nameplate of the product body for details | ||
