① Intelligent automatic control;
② Fluorine circulating unit is designed without water, water pump and pipeline are not required, and there is no risk of frost cracking;
③ Capillary heating, high energy efficiency, fast heating;
④ The host is installed outdoors, with small floor area and simple installation;
⑤ Low maintenance cost and stable equipment performance;
⑥ The end adopts anti-corrosion copper pipe, which is safe and reliable;
型号
KF210-LC
额定工况(20°C)
制热量
7200W
输入功率/电流
1800W/8.5A
COP
4.00W/W
制热水能力
160L/h
电源规格
220V/50Hz
工作温度范围
-7~43°C
制冷剂
R22
压缩机
旋转式压缩机×1
水路接口
DN40(内牙)
水流量（20°C）
13.8m³/h
氟路接口
DN10+DN4
换热器风侧
翅片式换热器
换热器末侧
毛细管
噪音
55dB(A)
风机类型
轴流风机×1
出风形式
侧出
外形尺寸
850×295×608mm
净重
48kg
型号
KF210-LC
额定工况(20°C)
制热量
9200W
输入功率/电流
2370W/11.2A
COP
3.88W/W
制热水能力
210L/h
电源规格
220V/50Hz
工作温度范围
-7~43°C
制冷剂
R22
压缩机
旋转式压缩机×1
水路接口
DN40(内牙)
水流量（20°C）
13.8m³/h
氟路接口
DN13+DN8
换热器风侧
翅片式换热器
换热器末侧
毛细管
噪音
56dB(A)
风机类型
轴流风机×1
出风形式
侧出
外形尺寸
900×330×840mm
净重
65kg
型号
KF210-LC(低温型）
额定工况(20°C)
制热量
9200W
输入功率/电流
2370W/11.2A
COP
3.88W/W
制热水能力
210L/h
电源规格
220V/50Hz
工作温度范围
-30~43°C
制冷剂
R410A
压缩机
旋转式压缩机×1
水路接口
DN40(内牙)
水流量（20°C）
13.8m³/h
氟路接口
DN13+DN8
换热器风侧
翅片式换热器
换热器末侧
毛细管
噪音
56dB(A)
风机类型
轴流风机×1
出风形式
侧出

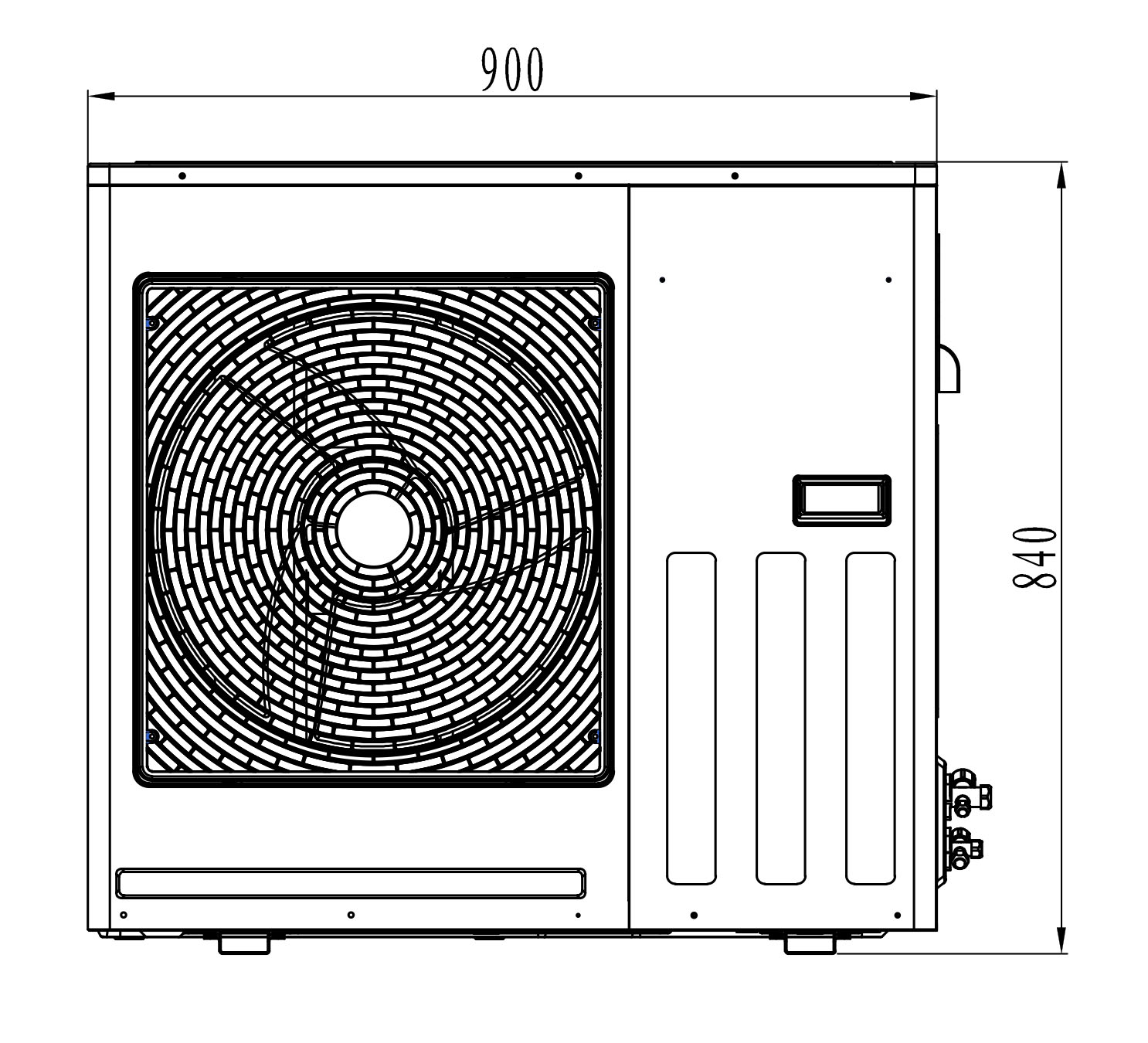

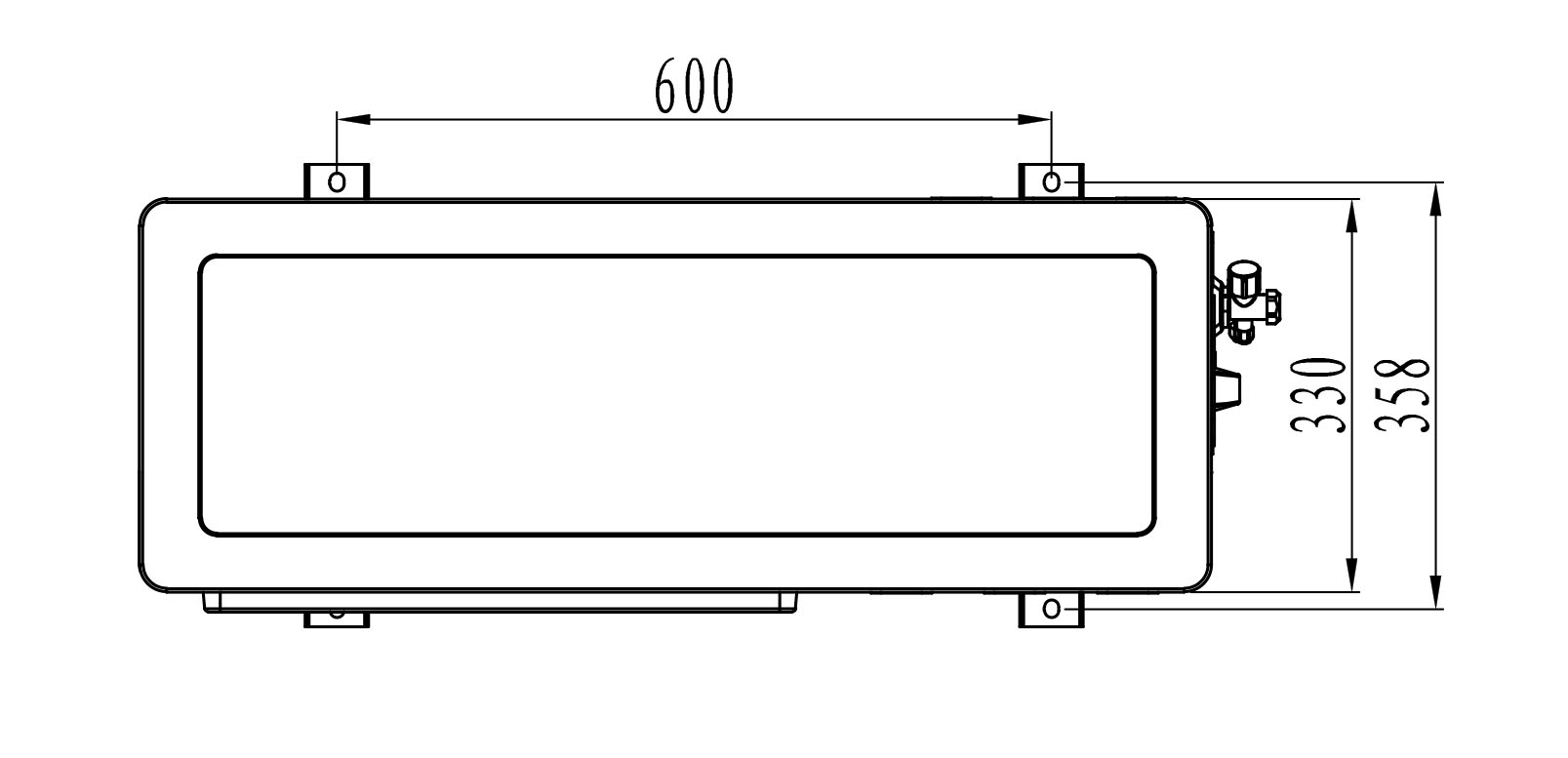

外形尺寸
900×330×840mm
净重
67kg
| Product model | KF210-LC | |
Rated working condition | Heating capacity | 9200W |
| Input power/current | 2370W/10.7A | |
| COP | 3.88W/W | |
| Power specifications | 220V/50Hz | |
| Operating temperature range | -7～43℃ | |
| R410A | ||
| Fluorine circuit interface | DN13+DN8 | |
| Heat exchanger | Windward side | Finned heat exchanger |
| end | capillary | |
| noise | 56dB(A) | |
| Fan type | Axial flow fan × one | |
| Air outlet form | be born of a concubine | |
| Overall dimensions | 900×330×840mm | |
| Net weight | 65kg | |
Under rated working condition, the average condensation temperature is 35 ℃ under the ambient temperature of 20 ℃; under nominal working condition, the average condensation temperature is 35 ℃ under the ambient temperature of 7 ℃: The above parameters are for reference only, see the nameplate of the product body for details | ||
