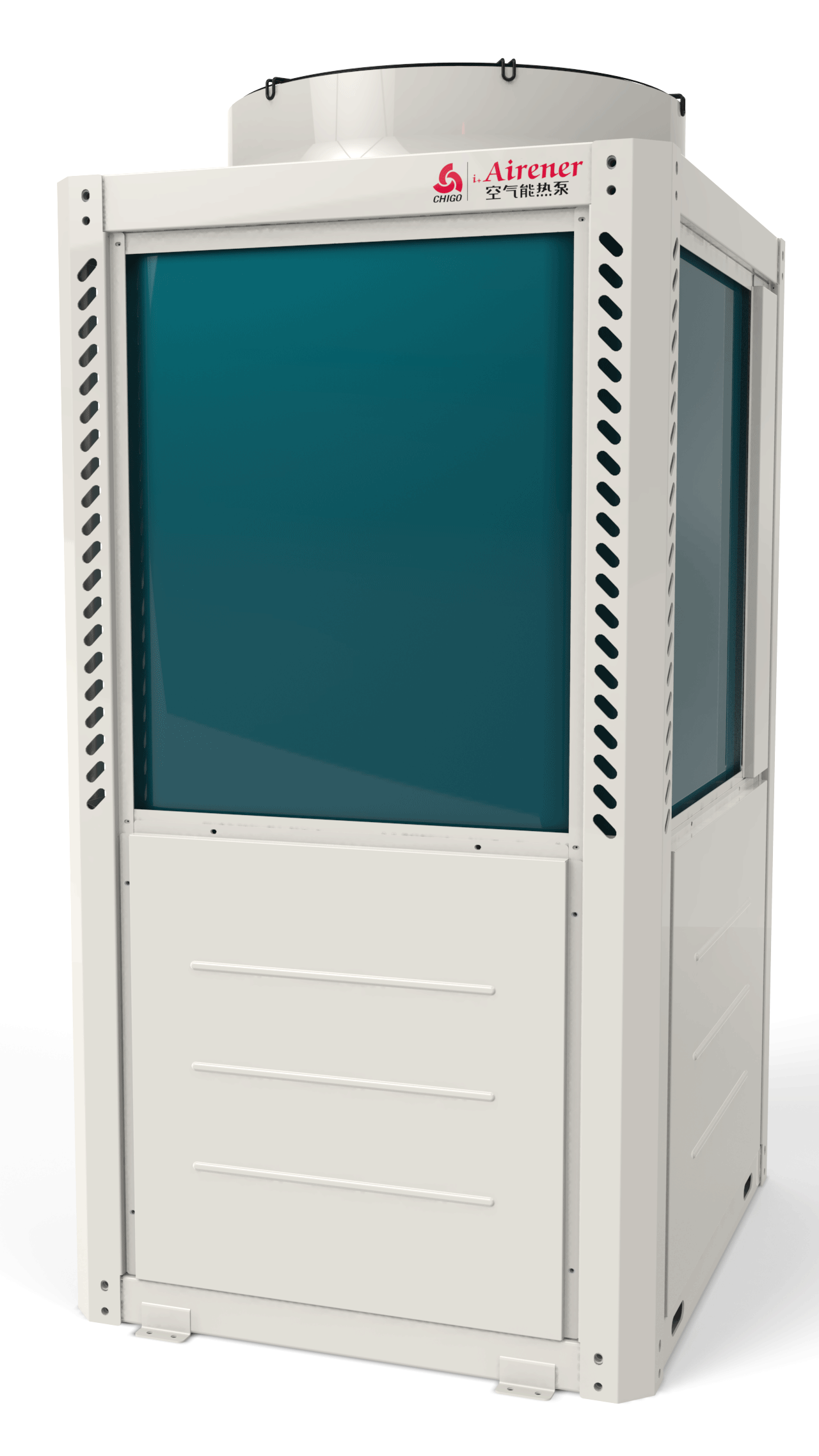

Technical parameters of heating constant frequency low temperature cooling and heating water circulation | ||
model | DKZCN-40S/D3 | |
Rated working condition (7℃) | Heating capacity | 40000W |
Input power/current | 11080W/20.5A | |
COP | 3.61W/W | |
Nominal working condition (-12℃) | Heating capacity | 26000W |
Input power/current | 10000W/18.5A | |
COP | 2.6W/W | |
IPLV(H) | 2.81W/W | |
Nominal refrigeration condition (35℃) | Refrigerating capacity | 32000W |
Input power/current | 9876W/18.3A | |
COP | 3.24W/W | |
IPLV© | 4.01W/W | |
Power specifications | 380V/50Hz | |
Operating temperature range | -25℃~43℃ | |
cryogen | R410A | |
Waterway interface | DN40 (external tooth) | |
Water flow (- 12 ℃) | 4.5m³/h | |
Heat exchanger | Water side | Casing heat exchanger |
Windward side | Finned heat exchanger | |
Inlet and outlet water pressure drop | 45kPa | |
noise | 68dB(A) | |
Fan type | Axial flow fan × one | |
Air outlet form | Ejection | |

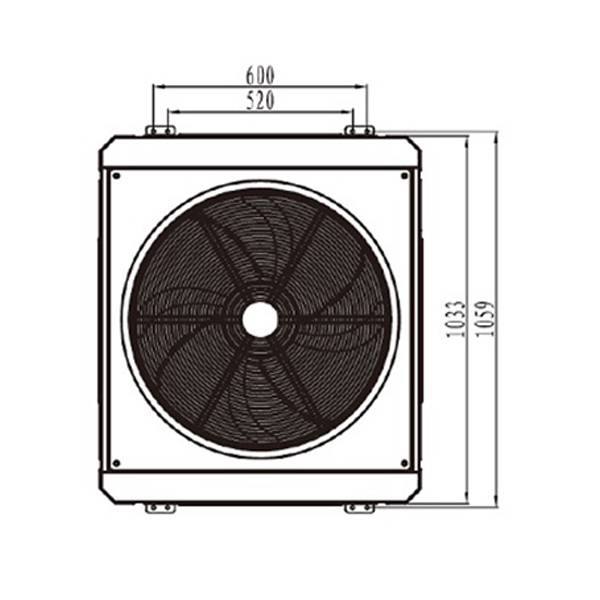

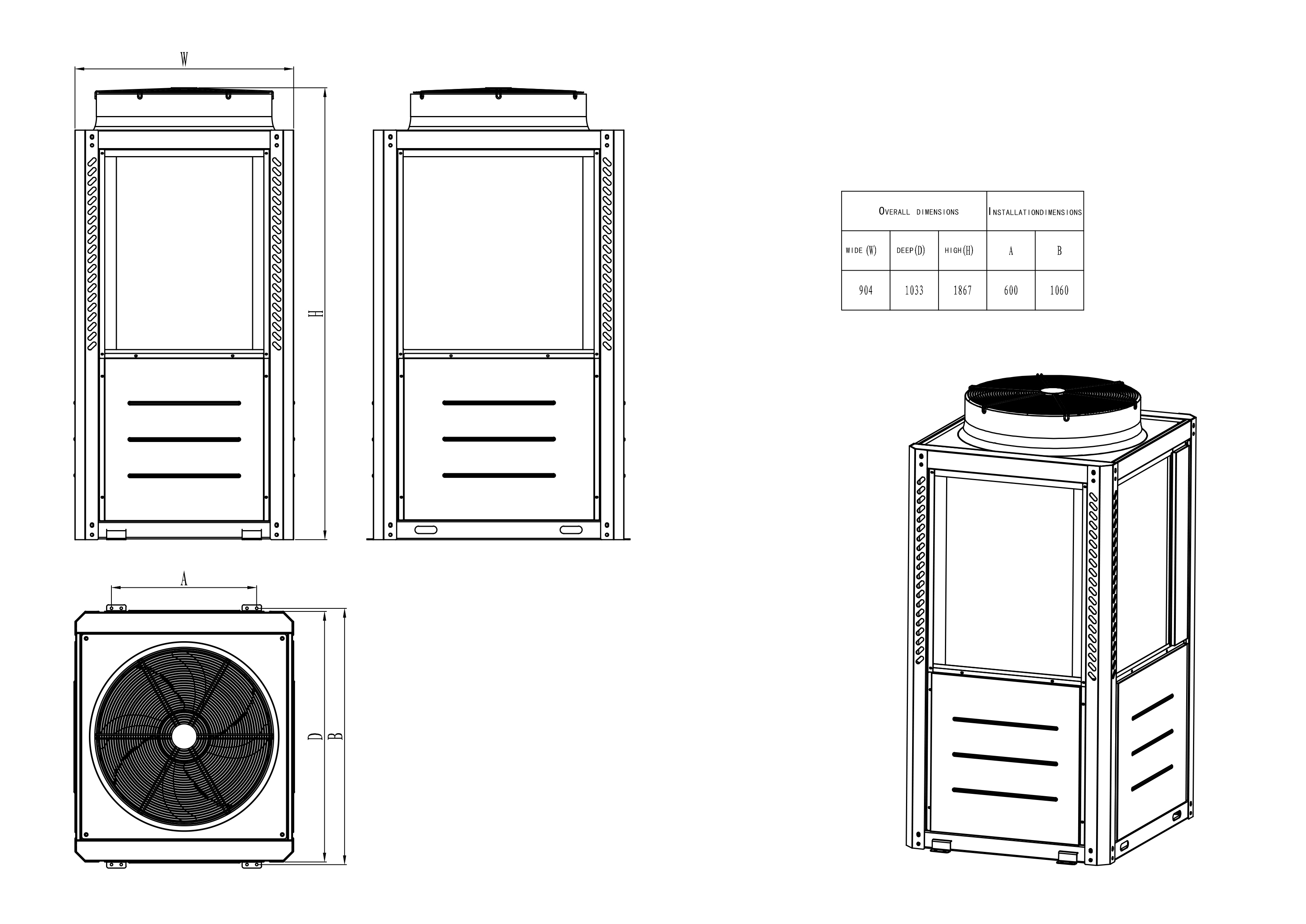

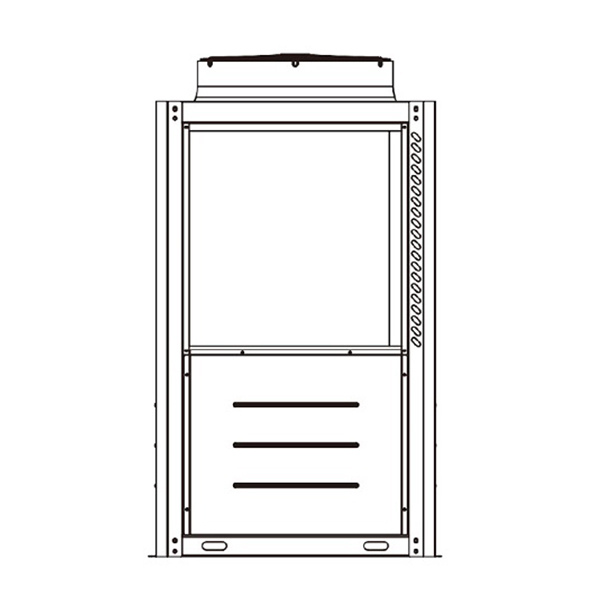

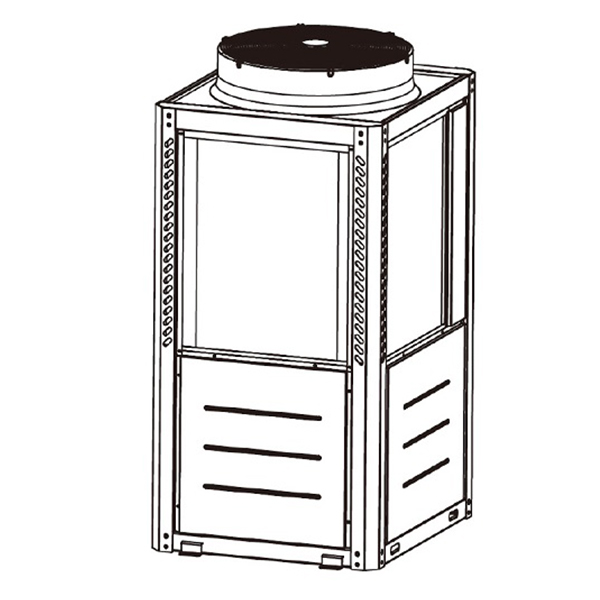

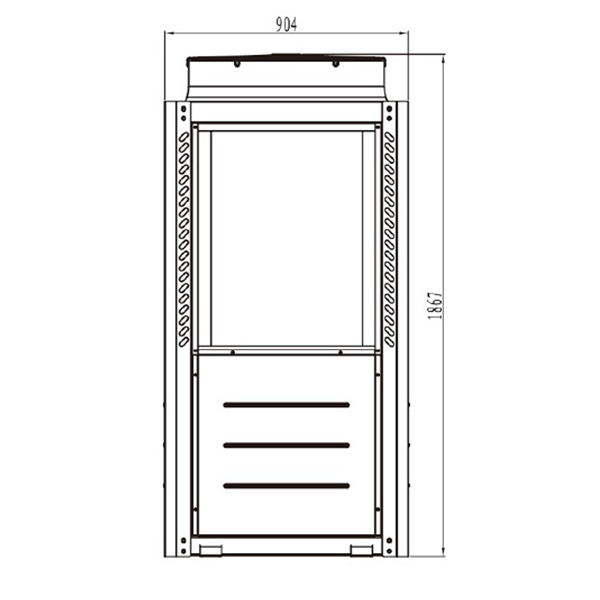

Overall dimensions | one thousand and thirty-six × nine hundred and two × 1867 (including footing) | |
Net weight | 380kg | |
Rated working condition: under the ambient temperature of 7 ℃/6 ℃ and the effluent temperature of 45 ℃; Nominal working condition: under the ambient temperature of - 12 ℃/- 14 ℃, the water temperature is 41 ℃; Refrigeration working condition: under the ambient temperature of 35 ℃, the water temperature is 7 ℃; The above parameters are for reference only, see the nameplate of the product body for details |
