DKZCN-18/TF (DC frequency conversion)

  • 1

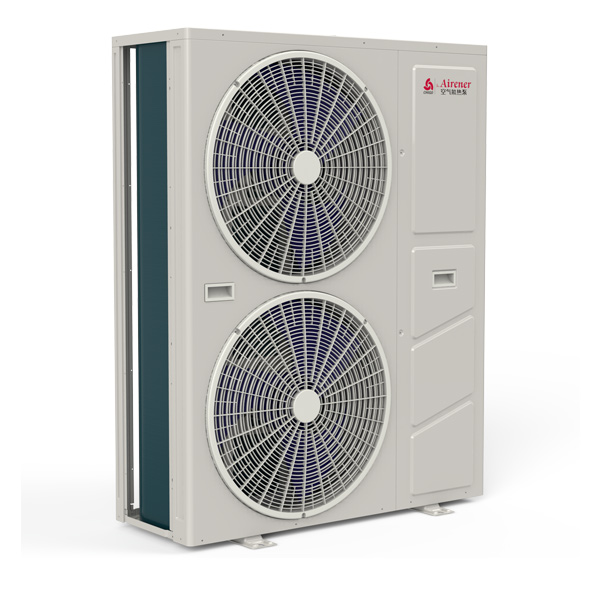

    Product main drawing

  • 2

    Product features

  • 3

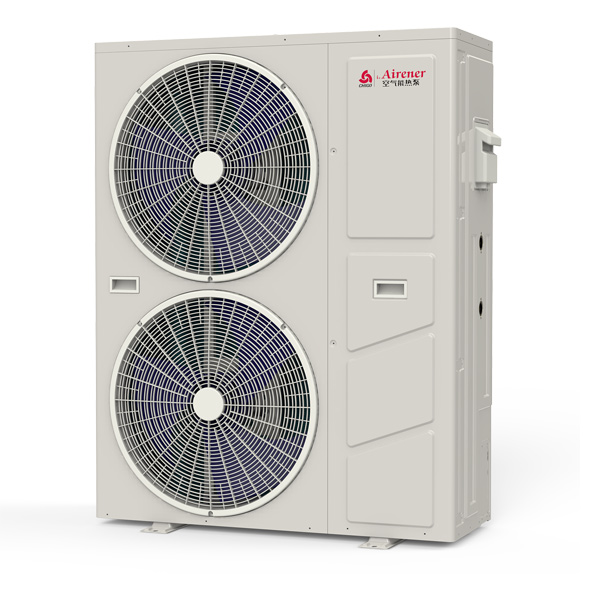

    Detail drawing1

  • 4

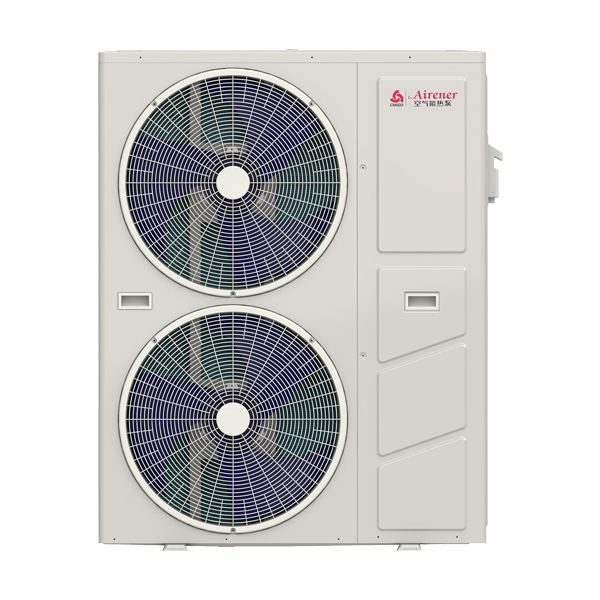

    Detail drawing2

  • Heating selling point

    One machine for multiple purposes, heating in winter and cooling in summer

    Patented defrosting technology, more stable heating supply

    The outlet water temperature can still reach 50 °C in the low temperature environment, which not only meets the requirements of floor heating and wind plate heating water temperature, but also meets the requirements of radiator heating water temperature

    Modular design to meet different heating needs

    Twelve major protection functions, fault self-diagnosis and information prompt, after-sales maintenance is faster and more convenient

    Environmentally friendly refrigerant is used to have zero emissions to the atmosphere

    Using air enthalpy increase technology, stable operation above -30 °C, and low operating noise;

    Suitable for: sub-household and central heating fields, (such as homes, schools, governments, hospitals, factories, hotels, villas, beauty salons, etc.) North and south universal





technical parameter

Technical parameters of heating-frequency conversion low-temperature cold and warm water circulation
  Product modelDKZCN-18/TF


Rated working conditions

(7℃)


Heating capacity16000W
Input power/current5200W/24.4A
COP3.07W/W



Nominal condition

(-12℃)

Heating capacity12000W
Input power/current5194W/24.3A
COP2.31W/W
IPLV(H)2.71W/W


Refrigeration conditions

(35℃)

Cooling capacity11000W
Input power/current4382W/20.5A
COP2.51W/W
Power supply specifications220V/50Hz
Operating temperature range-30~43℃
RefrigerantR410A
Waterway interfaceDN25(Inner teeth)
Water flow rate (recommended at low temperature (-12°C)2.06m³/h

Heat exchanger

Water sideSleeve heat exchanger
Wind sideFinned heat exchangers
noises≤65dB(A)
Fan typeAxial fan × 2
Air outlet formSide out

Form factor

1030×380×1330mm(Feet included)

net weight116kg

Rated working conditions: under the ambient temperature of 7 °C/6 °C, the effluent is 45 °C test;
Nominal working conditions: under the ambient temperature of -12 °C/-14 °C, the effluent is tested at 41 °C;
Refrigeration conditions: at an ambient temperature of 35 °C, the effluent is tested at 7 °C;

The above parameters are for reference only, see the product body nameplate for details;

Nominal working condition: under the ambient temperature of - 12 ℃/- 14 ℃, the water temperature is 41 ℃;

Refrigeration working condition: under the ambient temperature of 35 ℃, the water temperature is 7 ℃;

The above parameters are for reference only, see the nameplate of the product body for details
