Runxin series

  • 1

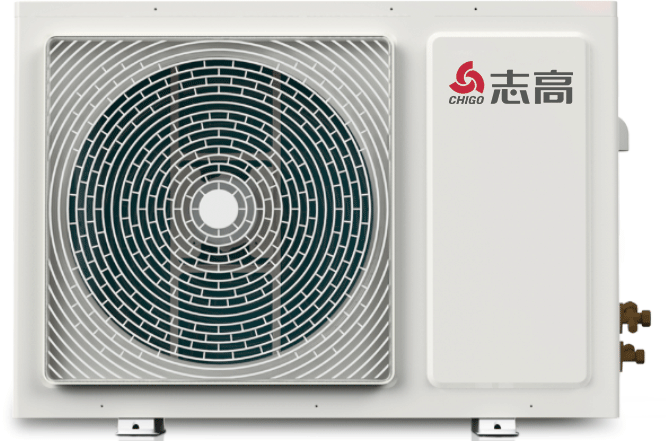

    Product main drawing

  • 2

    Product features

  • 3

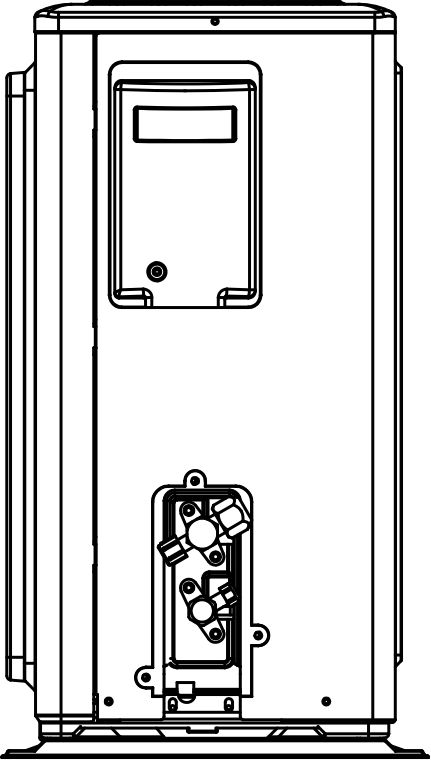

    Detail drawing1

  • 4

    Detail drawing2

  • 5

    Detail drawing3

  • 6

    Detail drawing4





technical parameter

  • 产品主机型号

    KF70-RB/5

  • 产品水箱型号

    RSX-150/200B1RB/5

  • 制热量(W)

    3200

  • 热水产量(L/h)

    70

  • 额定功率(W)

    941

  • 电源规格(V/Hz)

    220/50

  • 性能系数(W/W)

    3.40

  • 4出水温度(°C)

    55

  • 主机重量(kg):

    30

  • 水箱重量(kg)

    61 74

  • 产品主机尺寸(mm)

    700×225×500

  • 产品水箱尺寸(mm)

    Φ470×1585 Φ510×1690

  • 水箱容量(L)

    150 200

  • 水箱外形(颜色)

    水金白

  • 能效级别

    二级

  • 机组噪音dB(A)

    52

  • 适用人数(人)

    2-3/3-5

Power supply specification (V/Hz)Hot water output (L/h)Water tank capacity (L)Water tank shape (color)

Host product modelKF70-H/1
water tankRSX-150N1H/1
220/50
Power supply specification (V/Hz)3200
Rated power (W)723
Coefficient of performance (W/W)4.42

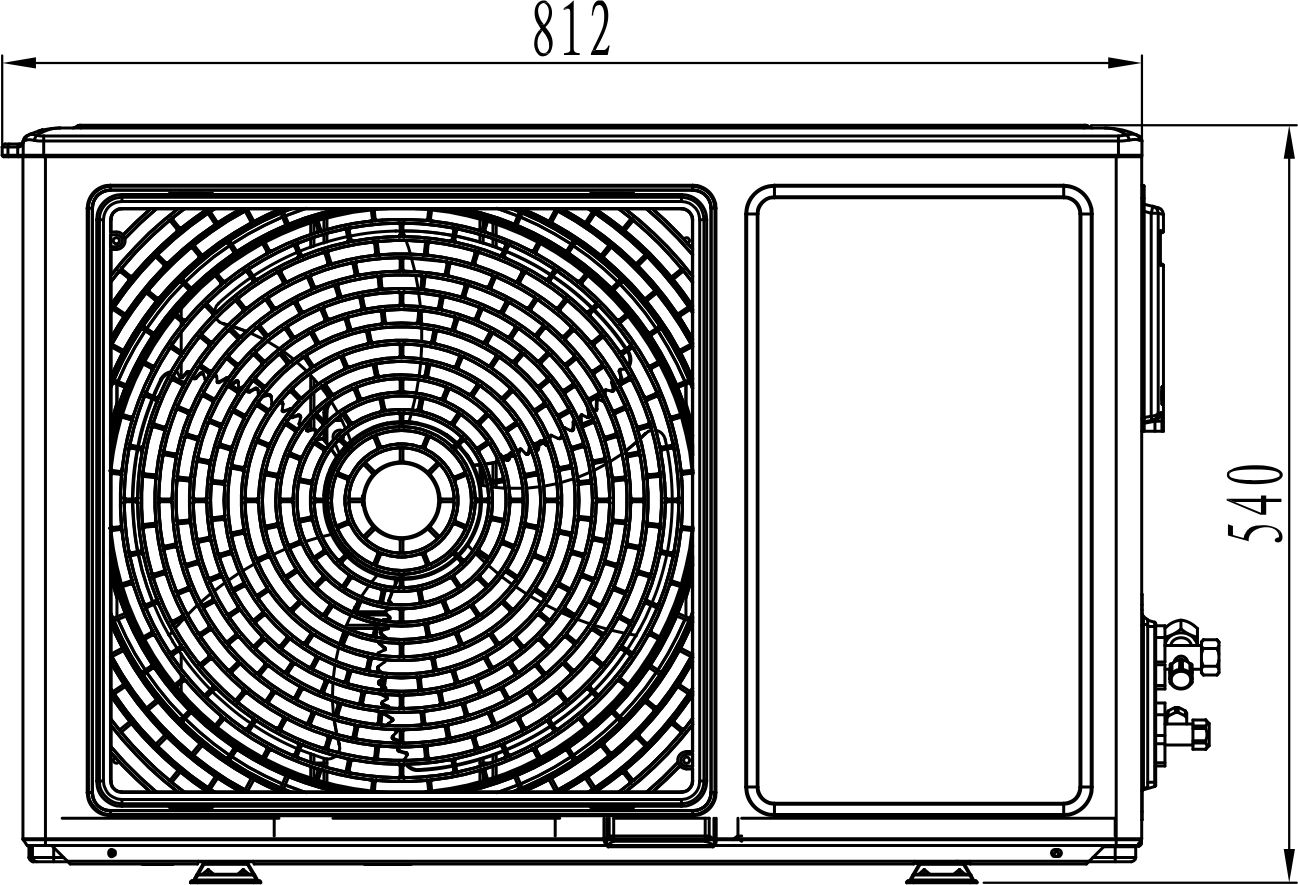

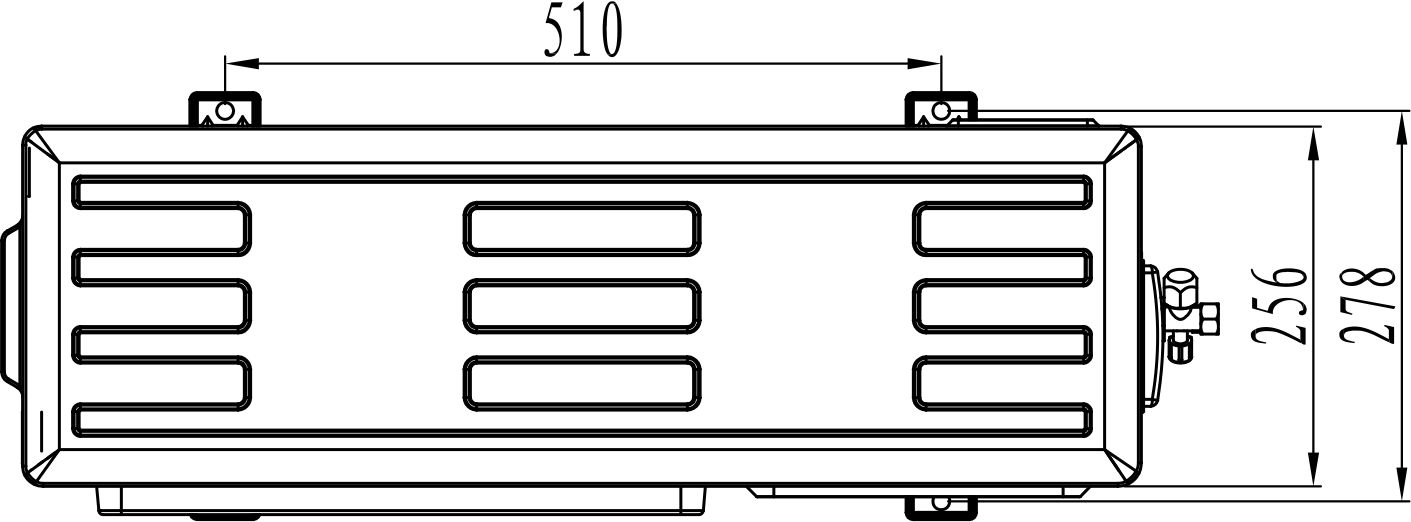

Main machine product size (mm)812×256×540
Main engine weight (kg)34
Unit noise dB (A)52
Energy efficiency levelclass a
70L/h
Outlet water temperature (℃)75
150
enamel
Water tank product size (mm)Φ470×1510
Weight of water tank (kg)56
Recommended Number of Applicants (person)2-3
