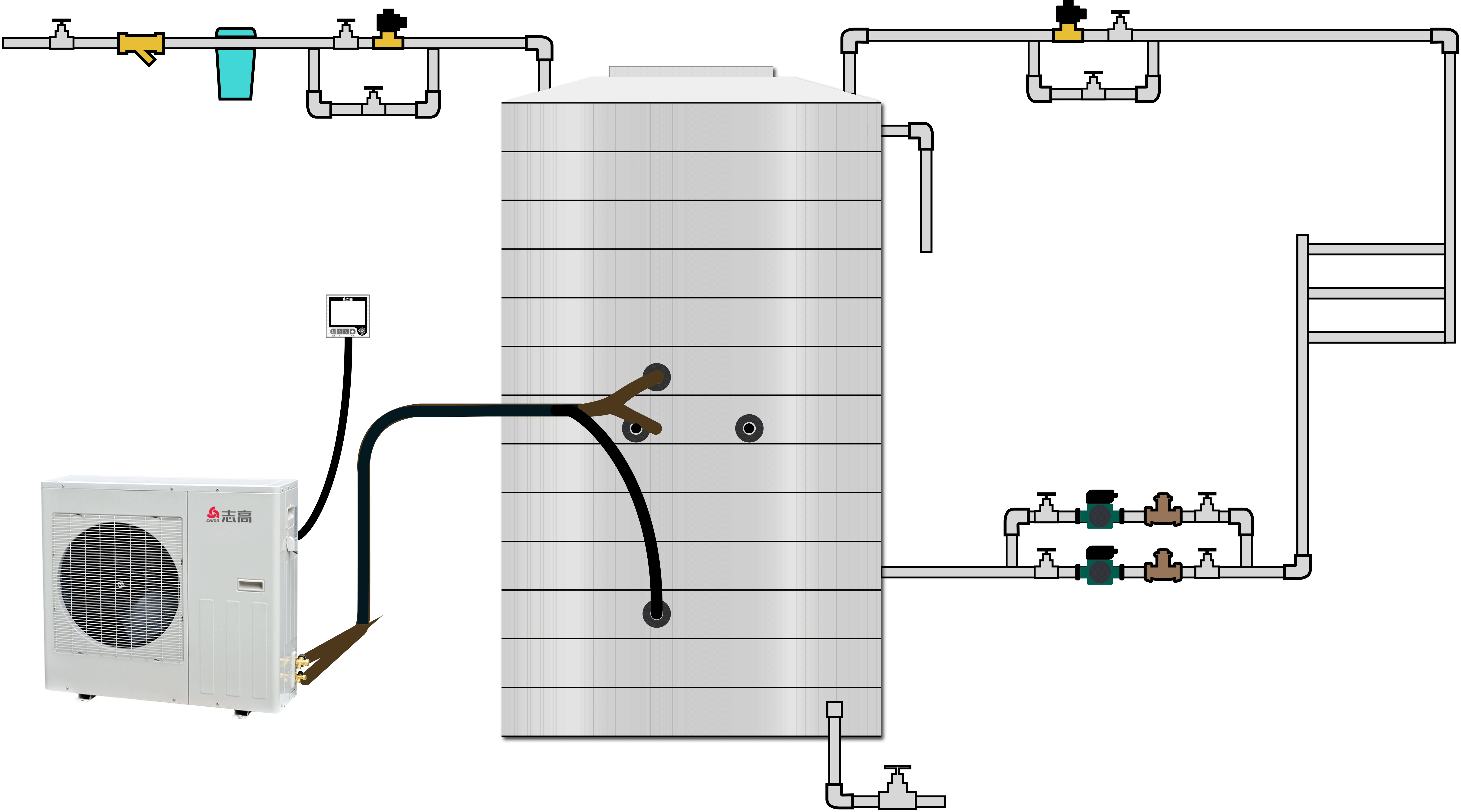

1. The main machine and water tank are connected by copper pipe, which is easy to install
2. High efficiency flexible scroll compressor of global famous brand with outstanding performance
3. The direct immersion condenser is used to provide water all day long. The COP value is between 3.5 and 4.5, and the operation cost is more energy-saving
4. Automatic defrosting, power failure memory function and other 12 fold safety protection
5. Modular networking, standardized integrated delivery, simple installation
6. Small floor area, short installation time
7. No water pump, low failure rate
产品主机型号
KF70-RB/5
产品水箱型号
RSX-150/200B1RB/5
制热量（W)
3200
热水产量（L/h)
70
额定功率（W)
941
电源规格（V/Hz)
220/50
性能系数（W/W)
3.40
4出水温度（°C)
55
主机重量（kg):
30
水箱重量（kg)
61 74
产品主机尺寸（mm)
700×225×500
产品水箱尺寸（mm)
Φ470×1585 Φ510×1690
水箱容量（L)
150 200
水箱外形（颜色）
水金白
能效级别
二级
机组噪音dB（A）
52
适用人数（人）
2-3/3-5

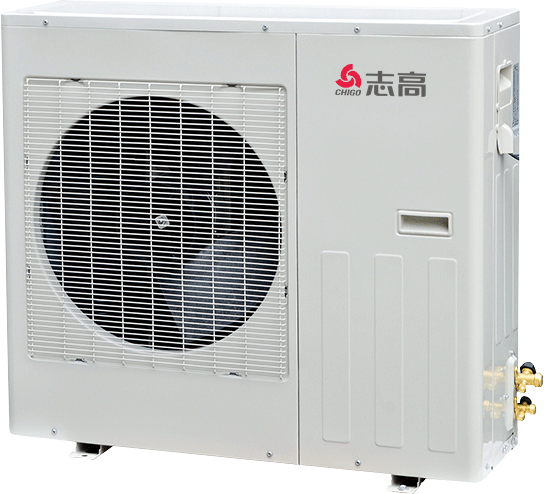

| model | KF210-LC | |
Rated working condition （20℃） | Heating capacity | 9200W |
| Input power/current | 2370W/10.7A | |
| COP | 3.88W/W | |
| Hot water production capacity | 210L/h | |
| supply water temperature | 55℃ | |
| Power specifications | 220V/50Hz | |
| Operating temperature range | -7~43℃ | |
| cryogen | R410A | |
| Fluorine circuit interface | DN13+DN8 | |
| Heat exchanger | Water side | Stainless steel high efficiency heat exchanger/hydraulic module |
| Windward side | Finned heat exchanger | |
| noise | 56dB（A） | |
| Fan type | Axial flow fan * 1 | |
| Air outlet form | be born of a concubine | |

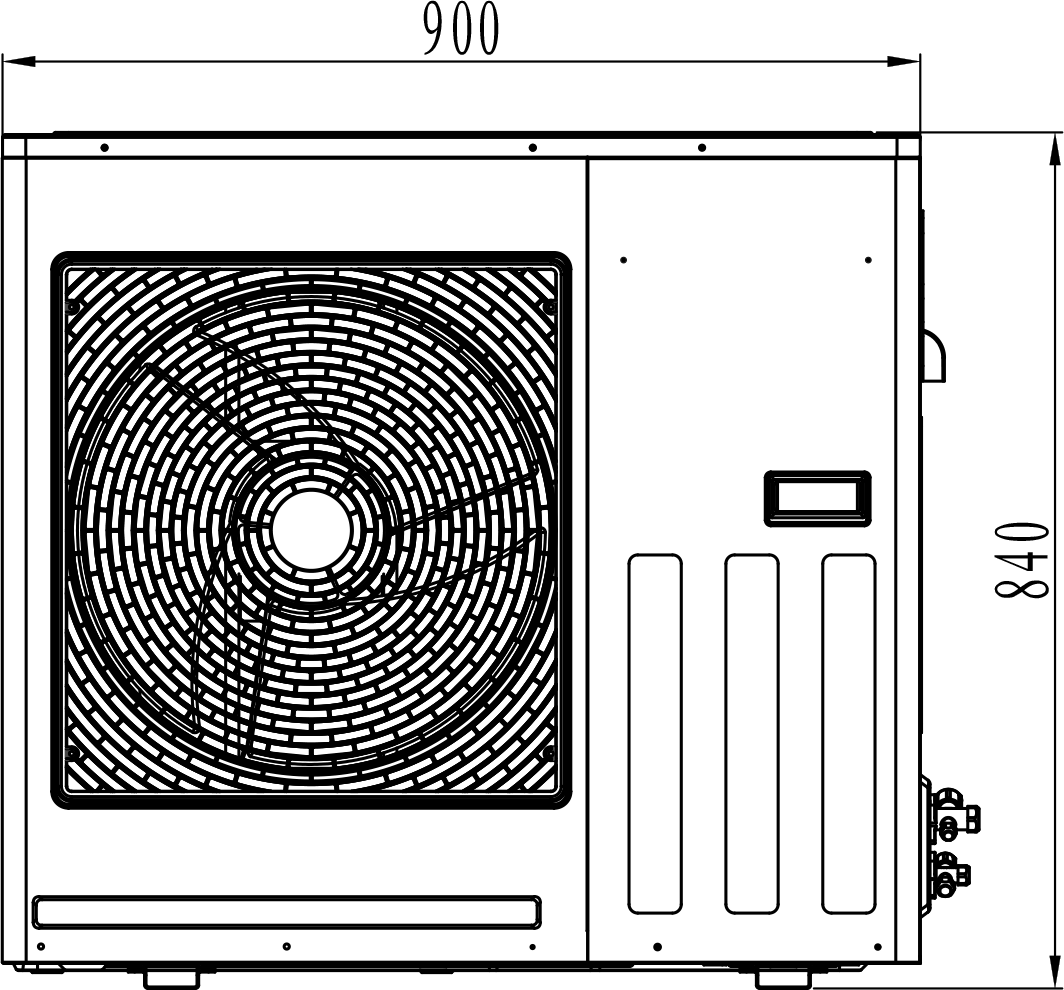

| Overall dimension (mm) | 900*330*840 | |
| Net weight (Kg) | 65 | |
