KF410-LC6

  • 1

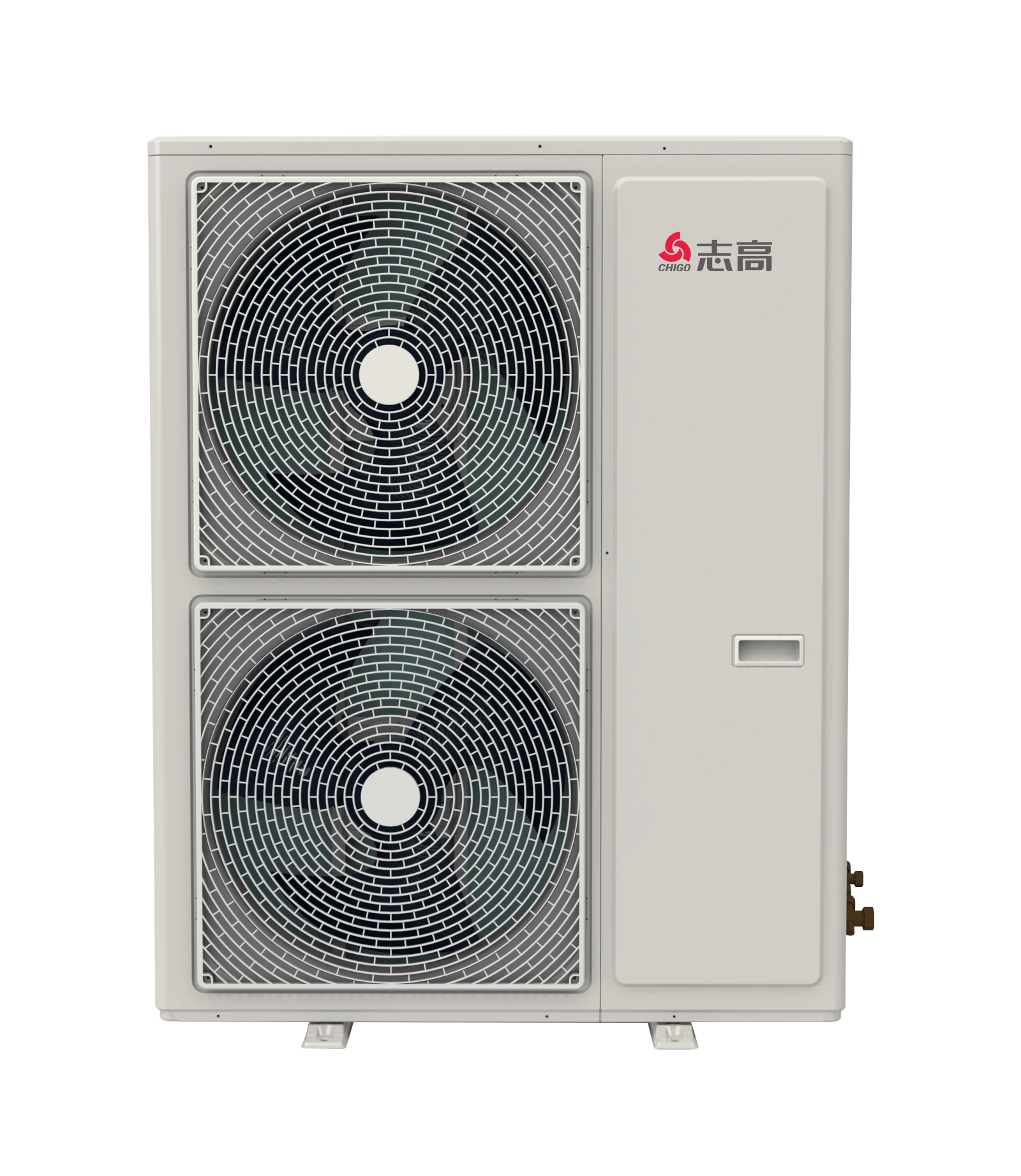

    Product main drawing

  • 2

    Product features

  • 3

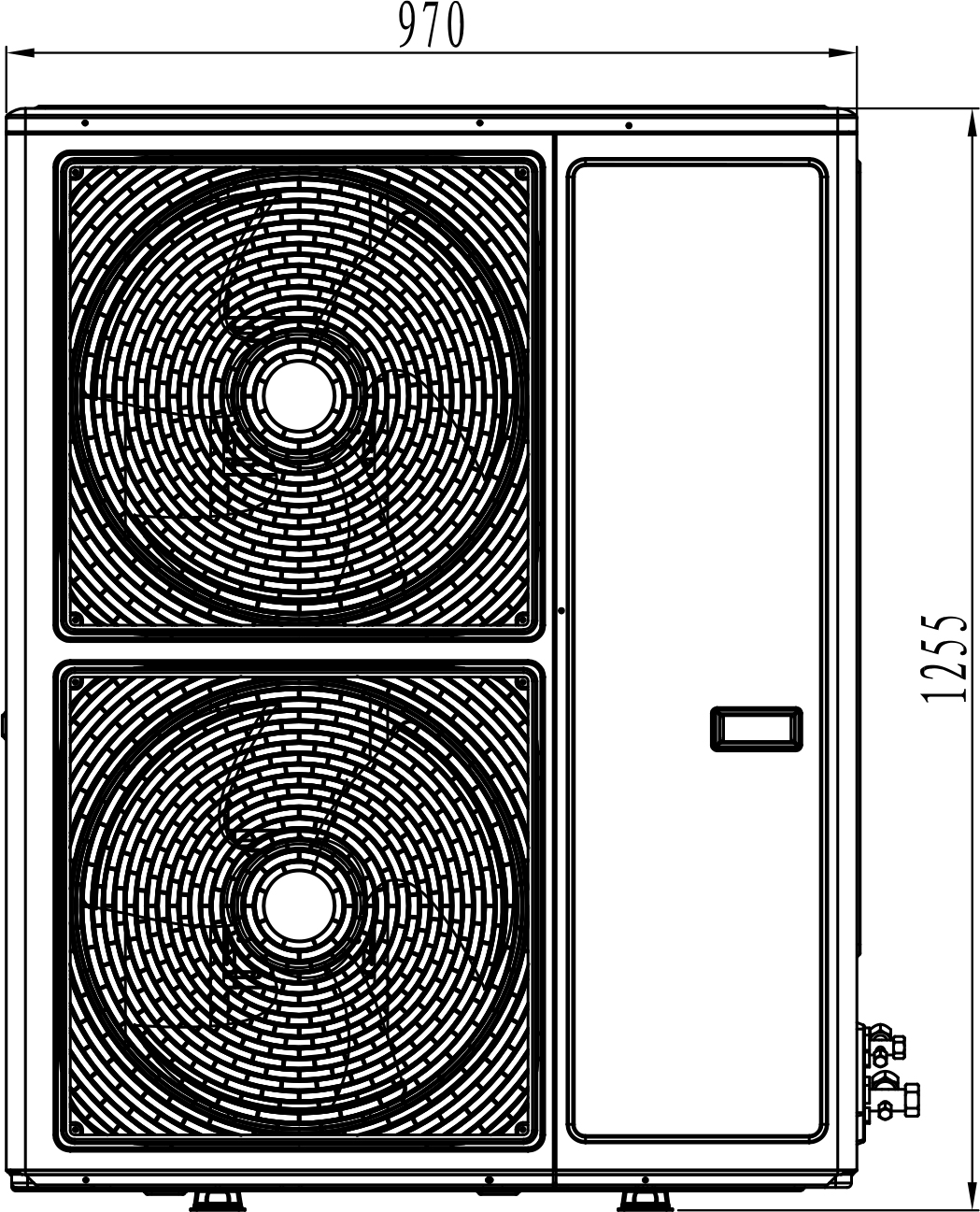

    Detail drawing1

  • 4

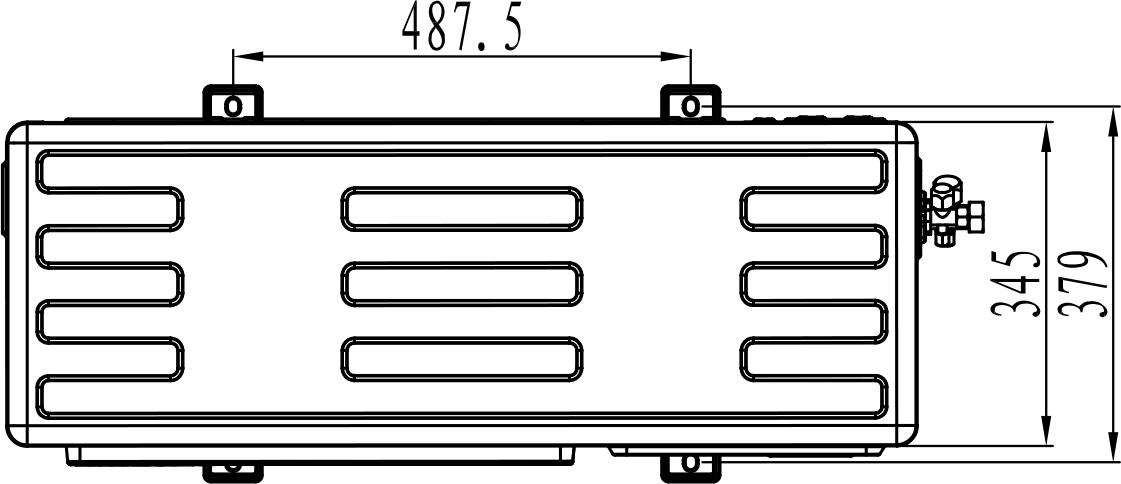

    Detail drawing2

  • 5

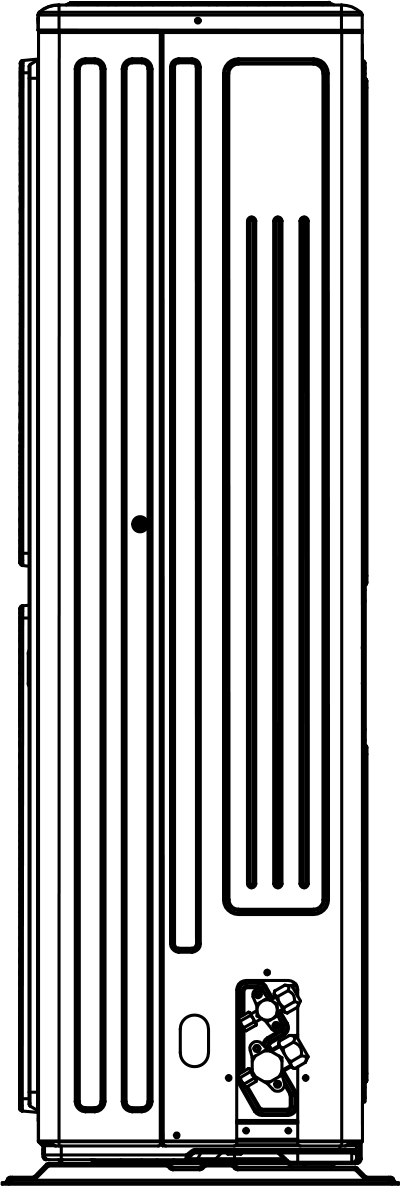

    Detail drawing3

  • 6

    Detail drawing4

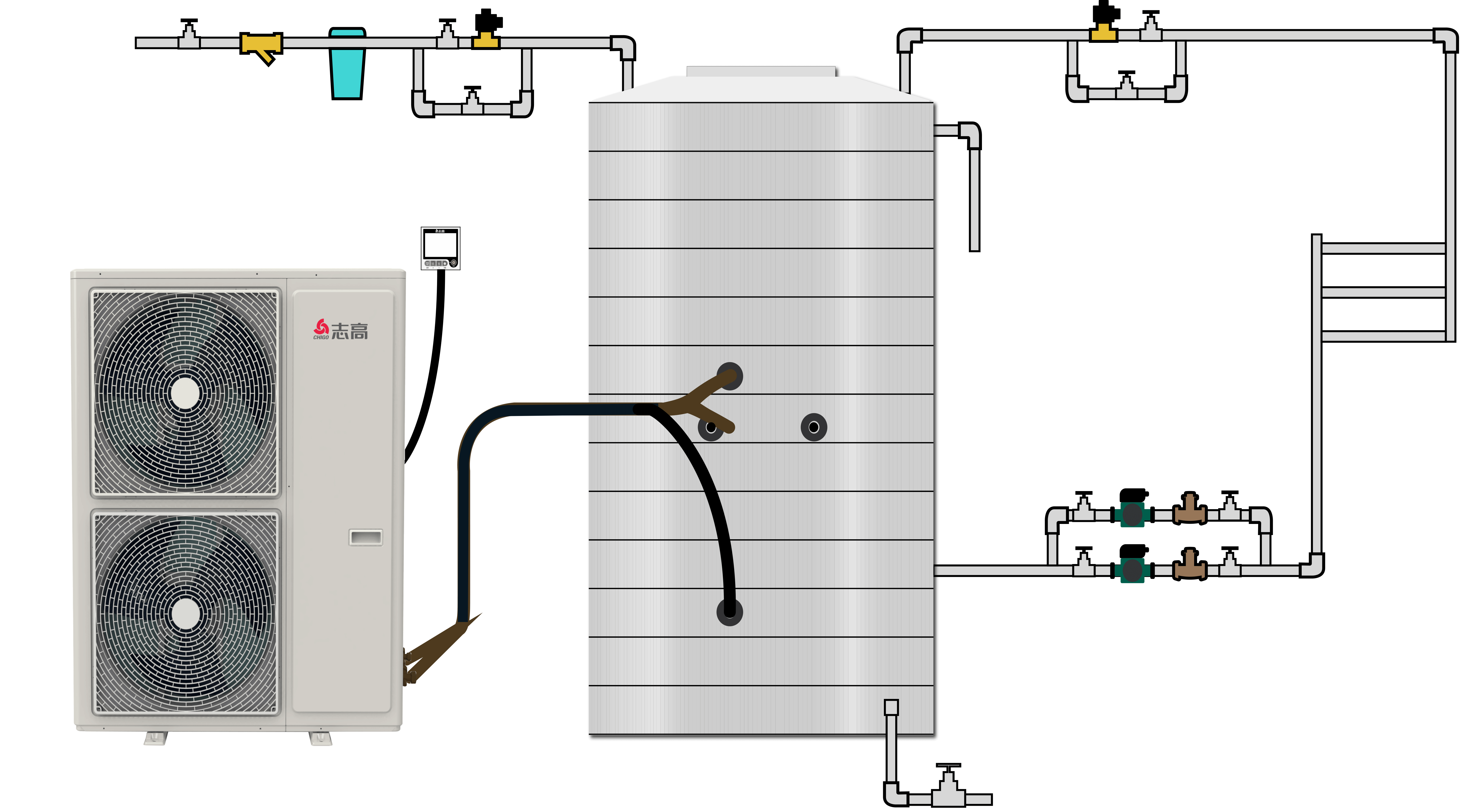

  • 1. The main machine and water tank are connected by copper pipe, which is easy to install

    2. High efficiency flexible scroll compressor of global famous brand with outstanding performance

    3. The direct immersion condenser is used to provide water all day long. The COP value is between 3.5 and 4.5, and the operation cost is more energy-saving

    4. Automatic defrosting, power failure memory function and other 12 fold safety protection

    5. Modular networking, standardized integrated delivery, simple installation

    6. Small floor area, short installation time

    7. No water pump, low failure rate






technical parameter

modelKF410-LC6

Rated working condition

(20℃)


Heating capacity18000W
Input power/current4660W/8.6A
COP3.86W/W
Hot water production capacity410L/h
supply water temperature55℃
Power specifications

380V/50Hz

Operating temperature range-7~43℃
cryogenR22
Fluorine circuit interfaceDN16+DN10
Heat exchangerWater sideStainless steel high efficiency heat exchanger/hydraulic module
Windward sideFinned heat exchanger
noise58dB(A)
Fan typeAxial flow fan * 2
Air outlet formbe born of a concubine
Overall dimension (mm)970*345*1255
Net weight (Kg)92
