KF210-LC (low temperature type)

  • 1

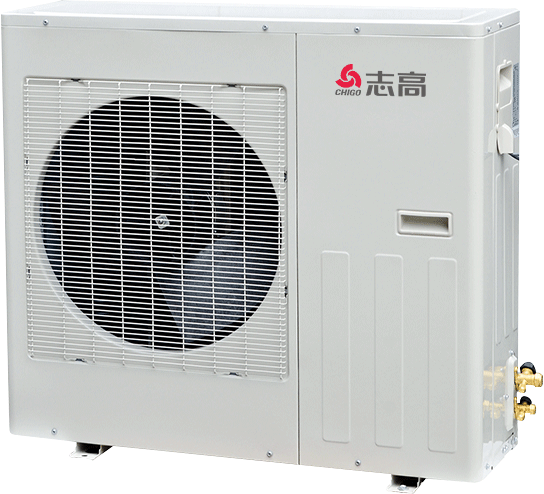

    Product main drawing

  • 2

    Product features

  • 3

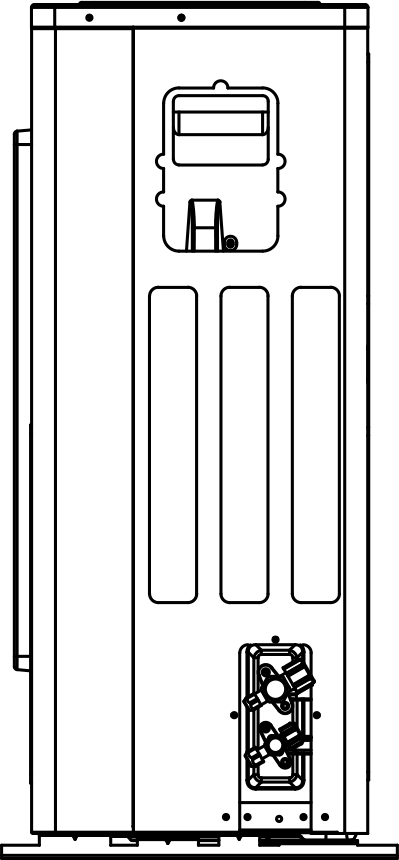

    Detail drawing1

  • 4

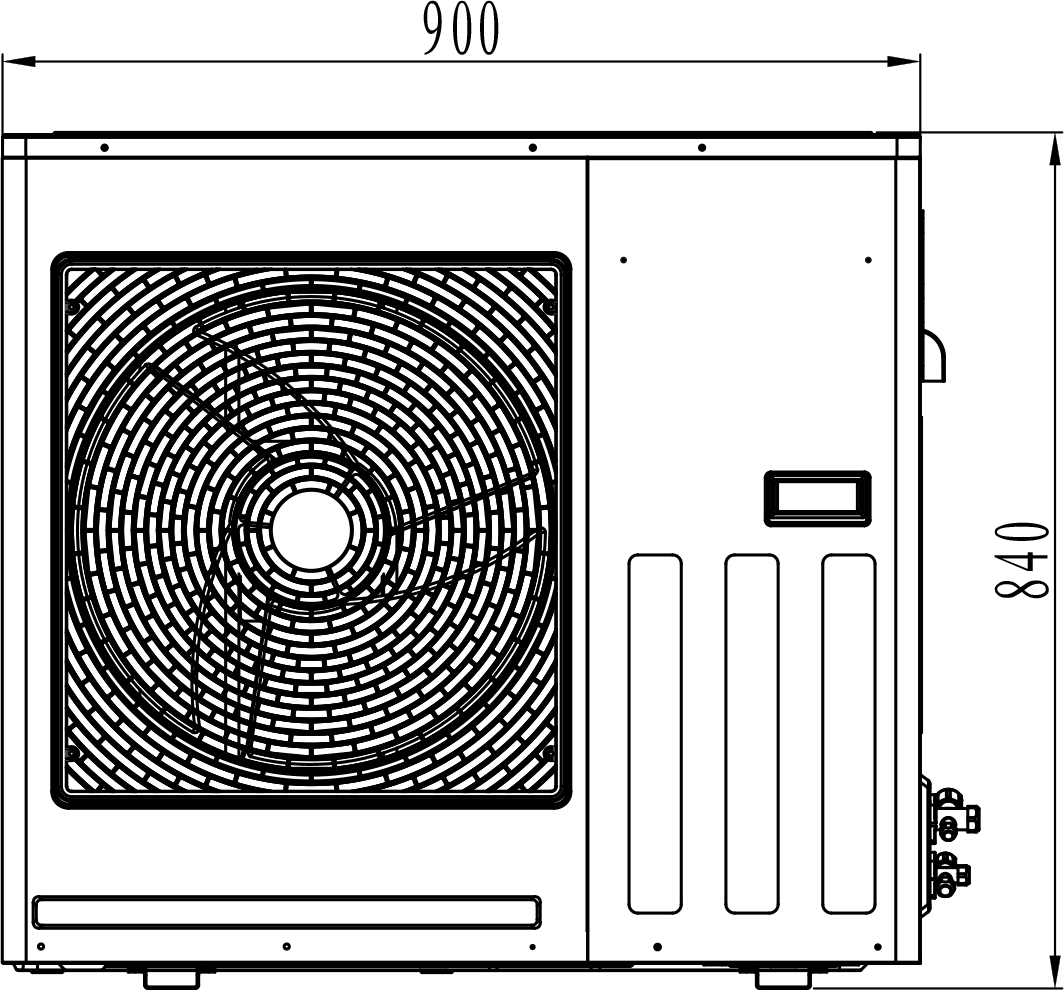

    Detail drawing2

  • 5

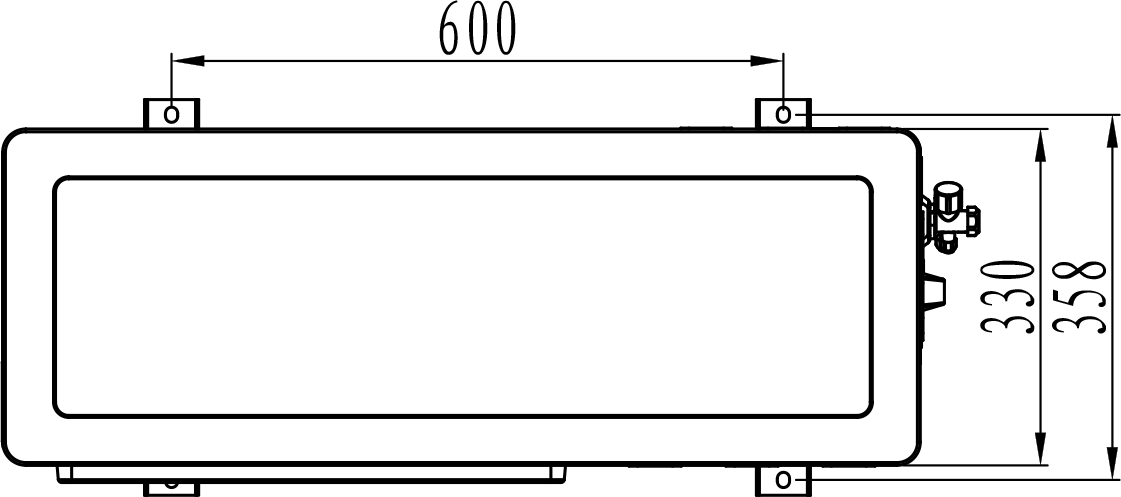

    Detail drawing3

  • 6

    Detail drawing4

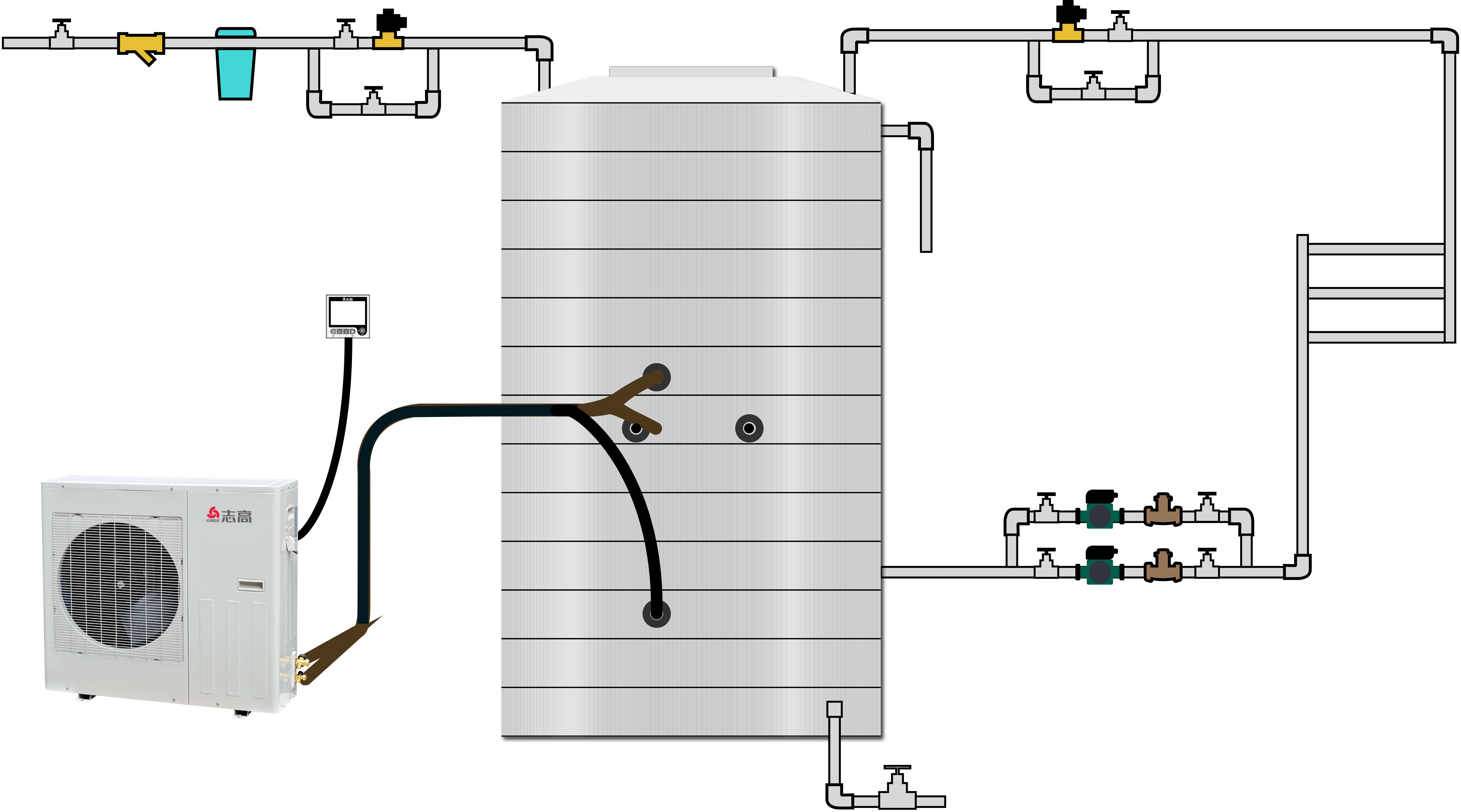

  • 1. The main machine and water tank are connected by copper pipe, which is easy to install

    2. High efficiency flexible scroll compressor of global famous brand with outstanding performance

    3. In low temperature environment, COP value remains above 2.0, 20% higher than that of ordinary heat pumps, and operation cost is more energy-saving

    4. 500 step brand electronic expansion valve is used to precisely control the refrigerant flow, with more stable performance

    5. Under extremely cold conditions of - 25 ℃, no electrical assistance is needed, and the water outlet of the main engine can reach 55 ℃

    6. Automatic defrosting, power failure memory function and other 12 fold safety protection

    7. Modular networking, standardized integrated delivery, simple installation

    8. Small floor area, short installation time

    9. No water pump required, low failure rate






technical parameter

modelKF210-LC

Rated working condition

(20℃)


Heating capacity9200W
Input power/current2370W/10.7A
COP3.88W/W
Hot water production capacity210L/h

Nominal working condition

(7℃)

Heating capacity9000W
Input power/current2650W/12.5A
supply water temperature55℃
Power specifications

220V/50Hz

Operating temperature range-25~43℃
cryogenR410A
Fluorine circuit interfaceDN13+DN8
Heat exchangerWater sideStainless steel high efficiency heat exchanger/hydraulic module
Windward sideFinned heat exchanger
noise56dB(A)
Fan typeAxial flow fan * 1
Air outlet formbe born of a concubine
Overall dimension (mm)900*330*840
Net weight (Kg)72
