| model | KFXRS-70II/F3B | |
Nominal working condition (20 ℃) | Heating capacity | 70000W |
| Input power/current | 16666W/31.7A | |
| COP | 4.20W/W | |
| Hot water production capacity | 1500L/h | |
| Rated/maximum outlet water temperature | 55℃/60℃ | |
| Power specifications | 380/50Hz | |
| Operating temperature range | -7～43℃ | |
| cryogen | R410A | |

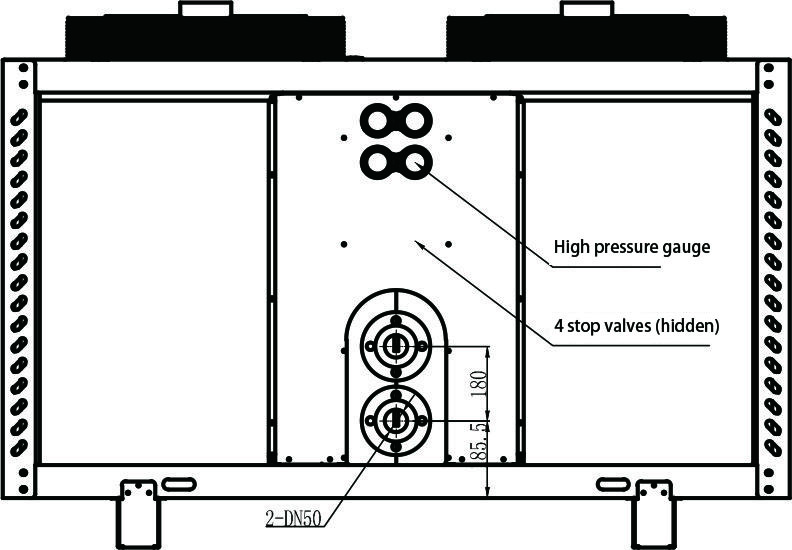

| Waterway interface | DN50 (flange) | |
| discharge | 12m³/h | |
Heat exchanger | Water side | High efficiency tank |
| Windward side | Finned heat exchanger | |
| noise | ≦68dB(A) | |
| Fan type | Axial flow fan * 2 | |
| Air outlet form | Ejection | |

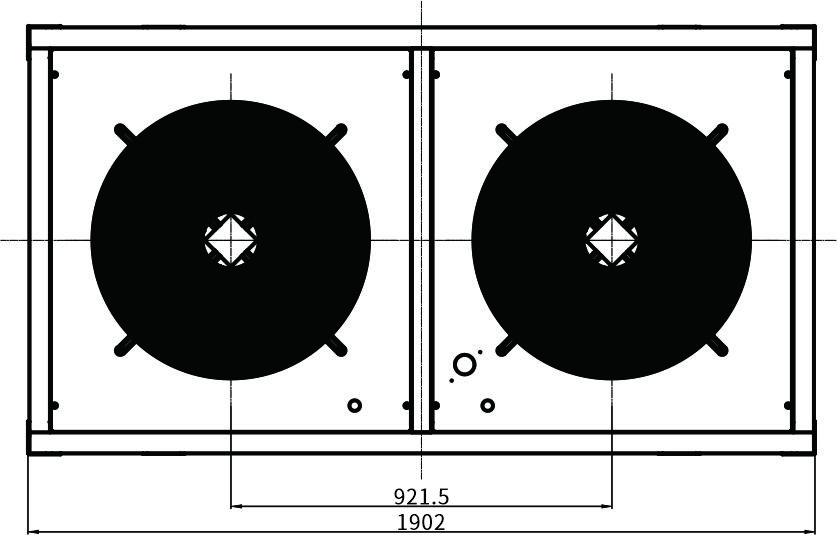

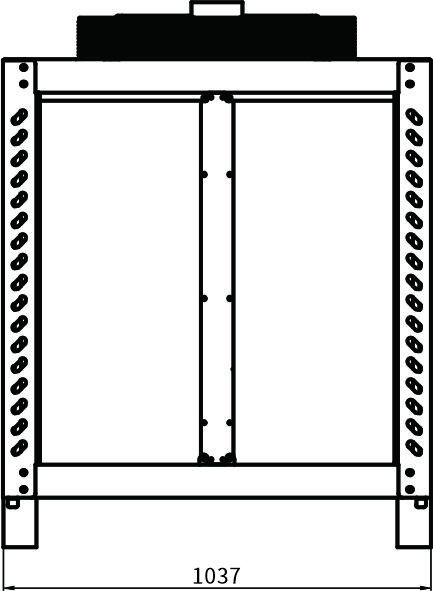

| Overall dimension (mm) | 1902x1037x1318 | |
| Net weight | 430kg | |
Nominal working condition: under the ambient temperature of 20 ℃, water inlet temperature of 15 ℃, and heating to 55 ℃; The above parameters are for reference only, see the nameplate of the product body for details | ||
