KFXRS-90II/F3M

  • 1

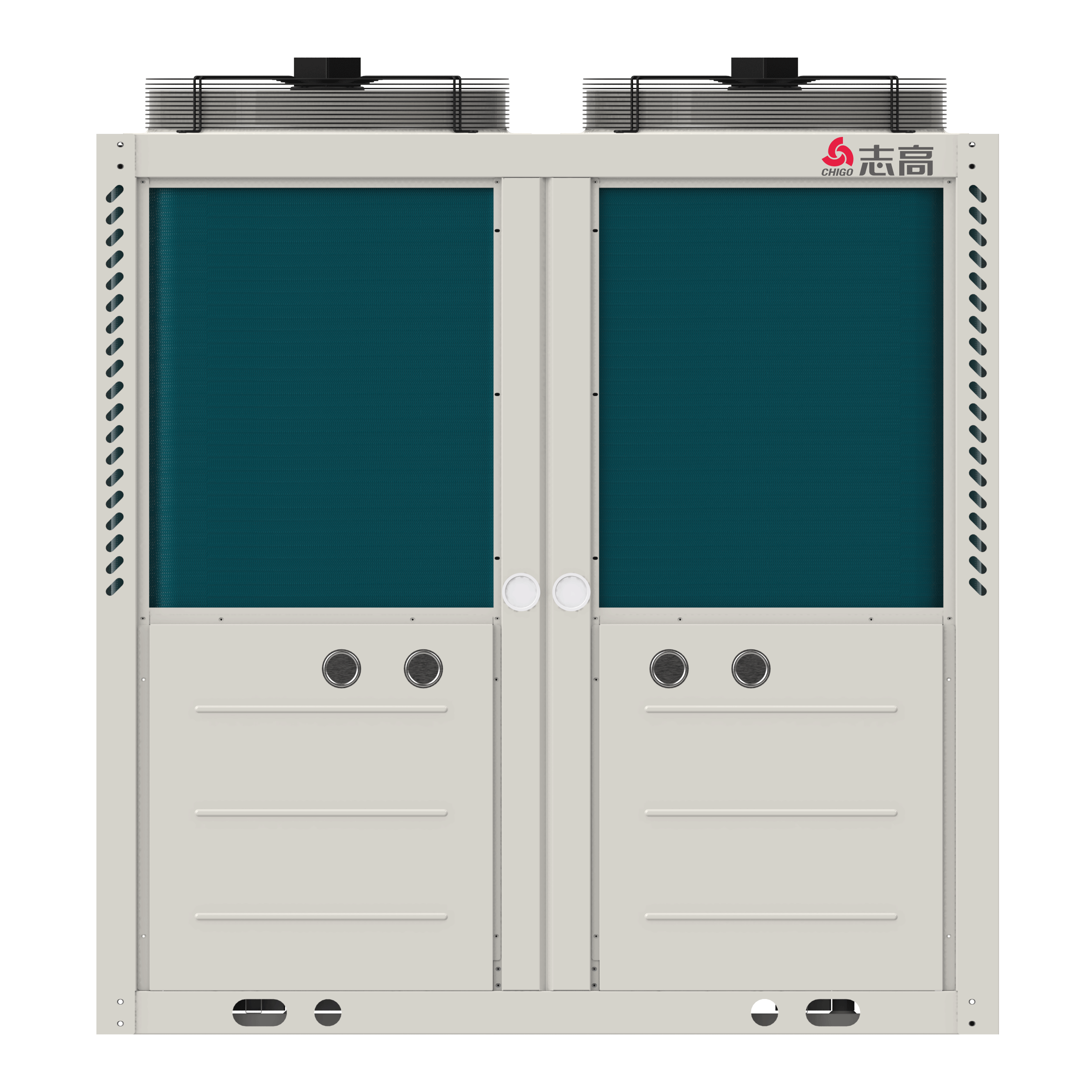

    Product main drawing

  • 2

    Product features





technical parameter

modelKFXRS-90II/F3B


Nominal working condition (20 ℃)


Heating capacity80000W
Input power/current

19040W/35.3A

COP4.20W/W
Hot water production capacity1720L/h
Rated/maximum outlet water temperature55℃/60℃
Power specifications380/50Hz
Operating temperature range-7～43℃
cryogenR410A
Waterway interfaceDN50 (flange)
discharge13.8m³/h

Heat exchanger

Water sideHigh efficiency tank
Windward sideFinned heat exchanger
Sound noise≦68dB(A)
Fan typeAxial flow fan * 2
Air outlet form

Ejection

Overall dimension (mm)1661x1037x1790
Net weight500kg


Nominal working condition: under the ambient temperature of 20 ℃, water inlet temperature of 15 ℃, and heating to 55 ℃;



The above parameters are for reference only, see the nameplate of the product body for details
