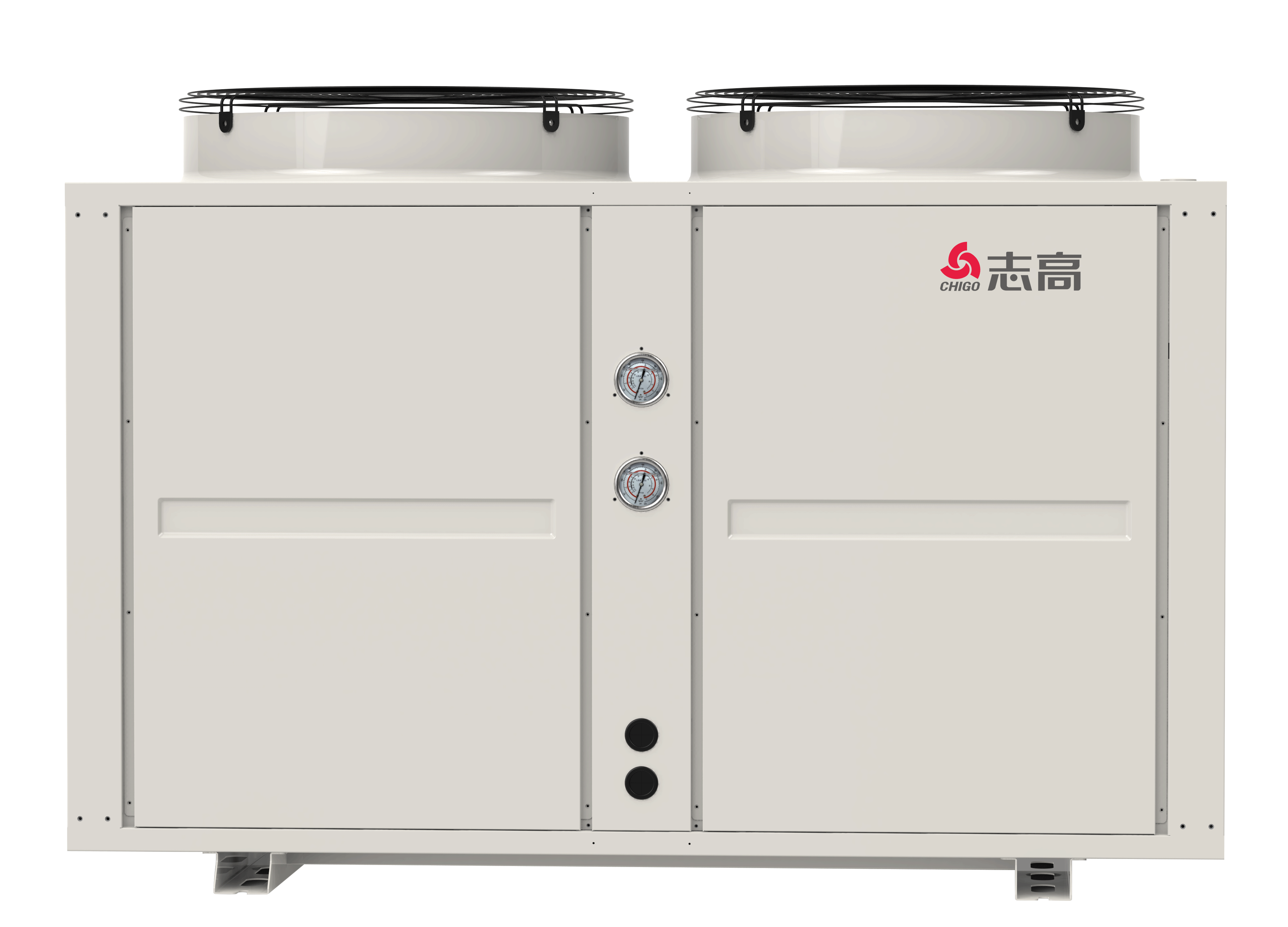

| model | KFXRS-40II/T3Q | |
Nominal working condition (7 ℃) | Heating capacity | 32000W |
| Input power/current | 10158W/18.8A | |
| COP | 3.15W/W | |
Rated working condition (20 ℃) | Heating capacity | 40000W |
| Input power/current | 9520W/17.6A | |
| COP | 4.20W/W | |
| Hot water production capacity (ambient temperature~20 ℃) | 600~855L/h | |
| Rated/maximum outlet water temperature | 55℃/60℃ | |
| Power specifications | 380/50Hz | |
| Operating temperature range | -25～43℃ | |
| cryogen | R410A | |
| Waterway interface | DN40 (internal tooth) | |
| Water flow (nominal 7 ℃ is recommended) | 5.5m³/h | |
Heat exchanger | Water side | High efficiency tank |
| Windward side | Finned heat exchanger | |
| noise | 66dB(A) | |
| Fan type | Axial flow fan * 2 | |
| Air outlet form | Ejection | |

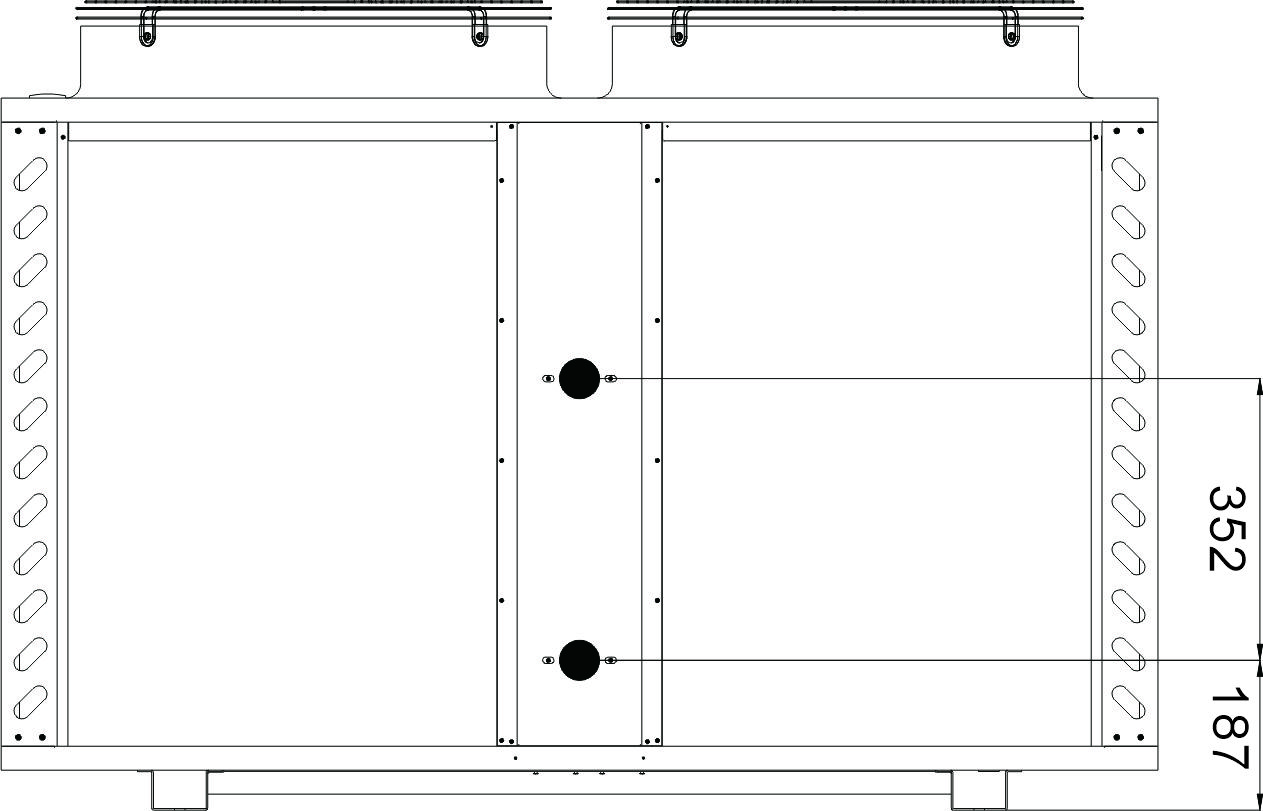

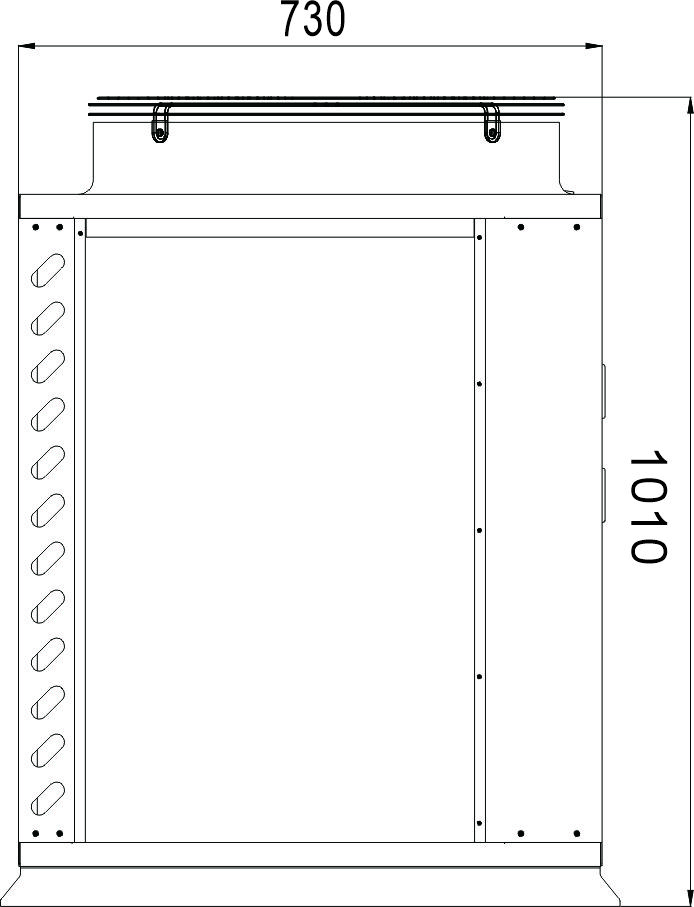

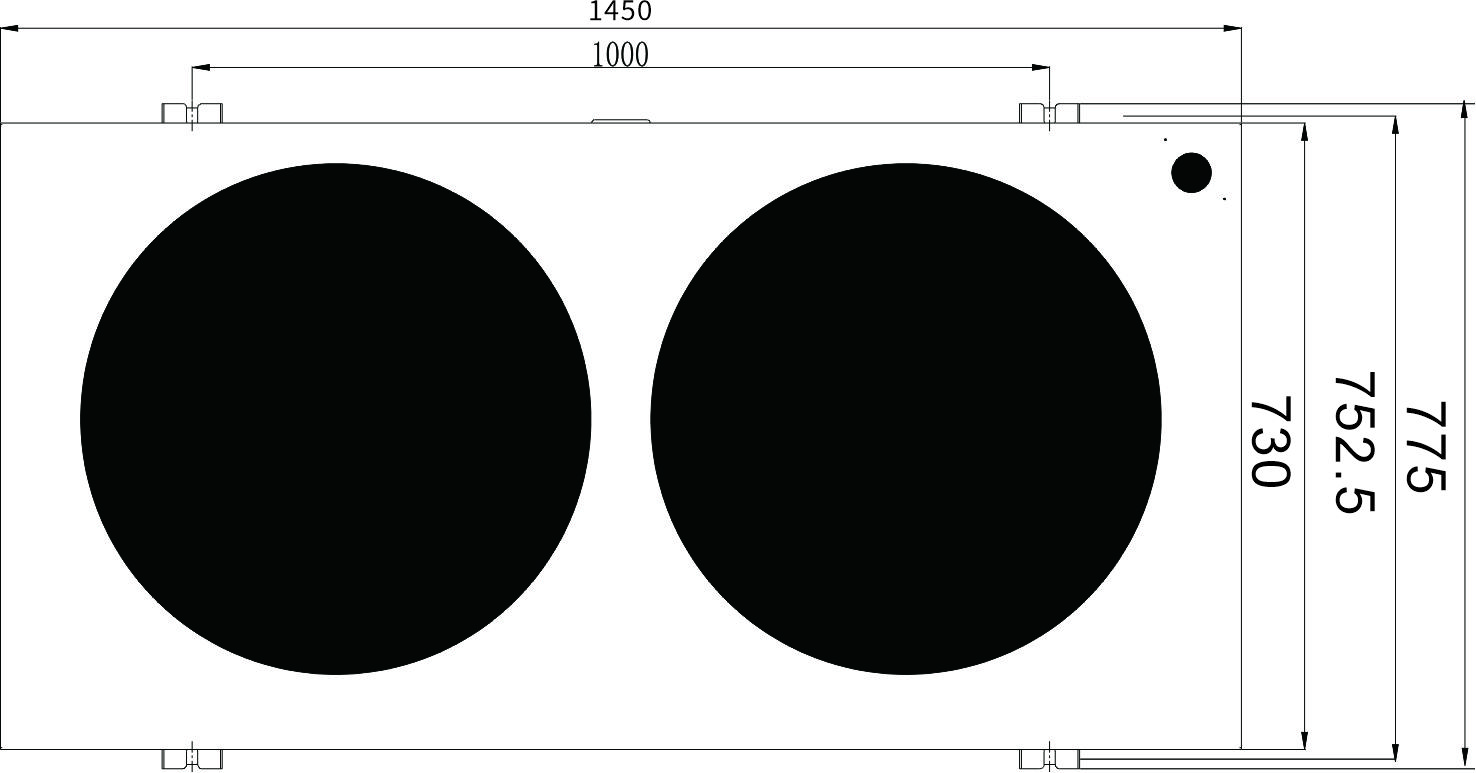

| Overall dimension (mm) | 1450x730x1010 (including footing) | |
| Net weight | 290kg | |
The above parameters are for reference only, see the nameplate of the product body for details | ||
