| model | KFXRS-80II/F3M | |
Nominal working condition (7 ℃) | Heating capacity | 59000W |
| Input power/current | 18910W/34.9A | |
| COP | 3.12W/W | |
Rated working condition (20 ℃) | Heating capacity | 73000W |
| Input power/current | 17590W/32.5A | |
| COP | 4.15W/W | |
| Hot water production capacity (ambient temperature~20 ℃) | 1100~1570L/h | |
| Rated/maximum outlet water temperature | 55℃/60℃ | |
| Power specifications | 380/50Hz | |
| Operating temperature range | -25～43℃ | |
| cryogen | R410A | |
| Waterway interface | DN50 (flange) | |
| Water flow (nominal 7 ℃ is recommended) | 10.1m³/h | |
Heat exchanger | Water side | High efficiency tank |
| Windward side | Finned heat exchanger | |
| noise | 68dB(A) | |
| Fan type | Axial flow fan * 2 | |
| Air outlet form | Ejection | |

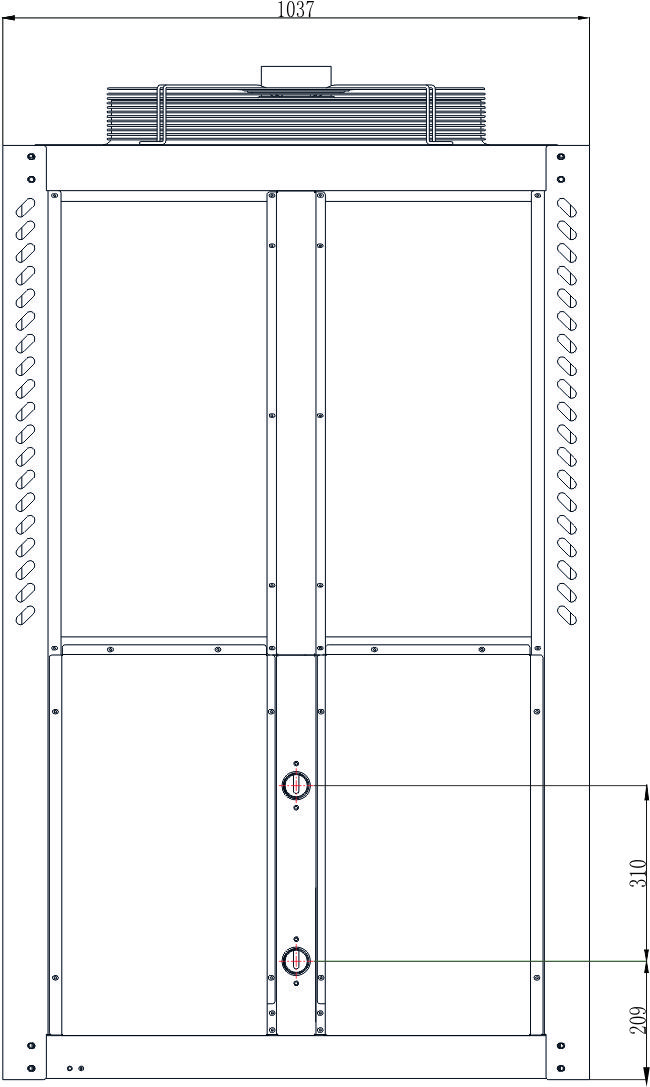

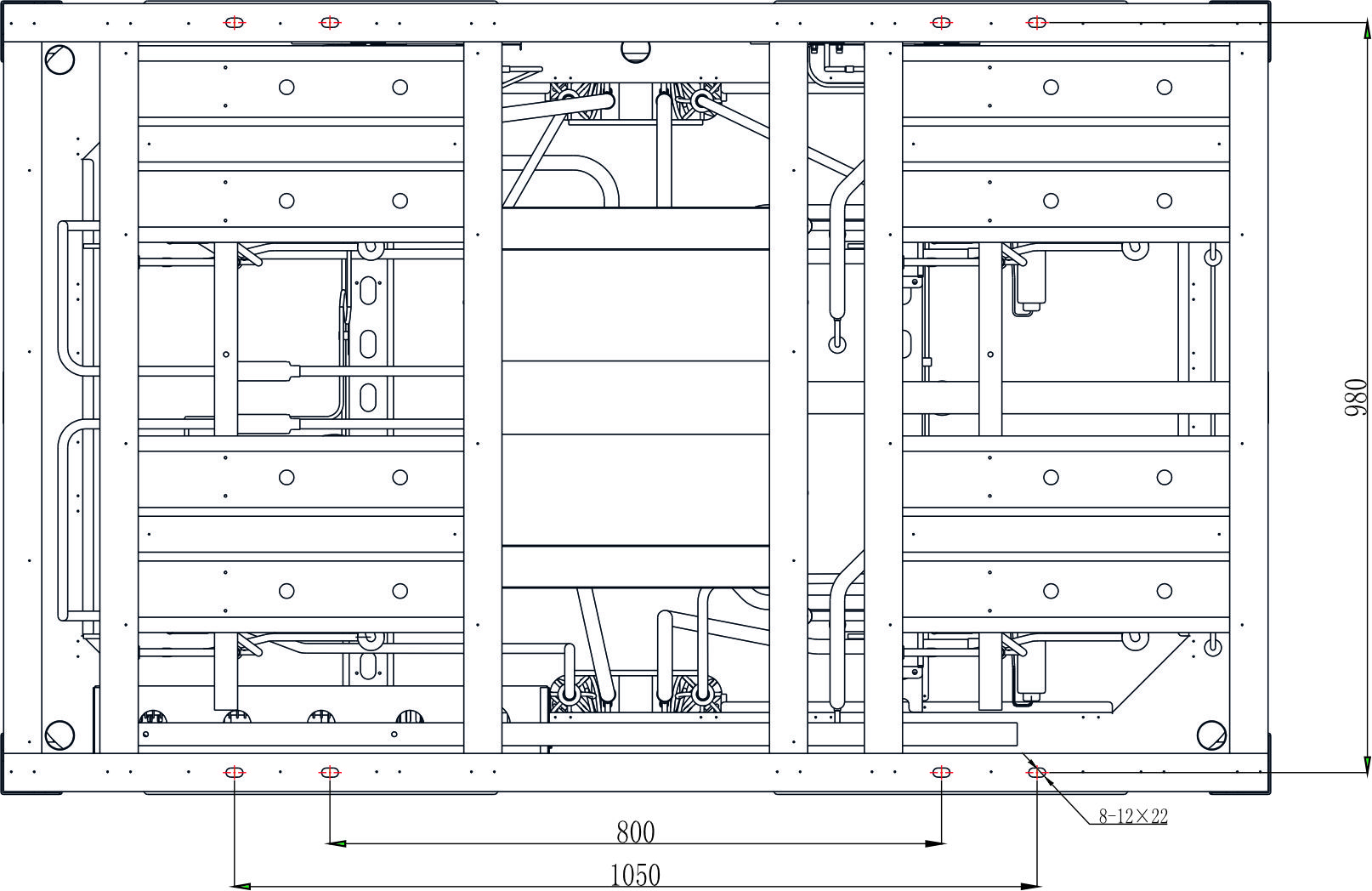

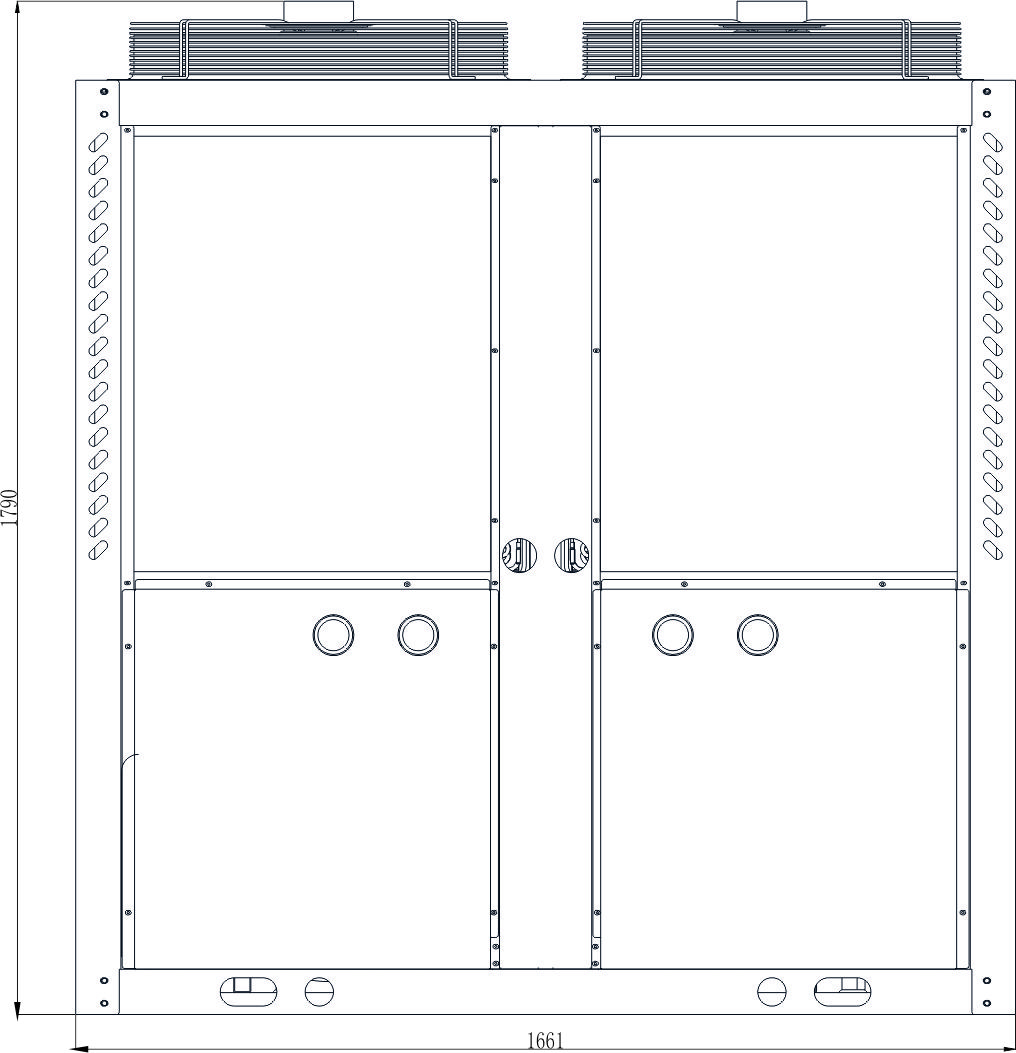

| Overall dimension (mm) | 1661x1037x1790 | |
| Net weight | 500kg | |
The above parameters are for reference only, see the nameplate of the product body for details | ||
