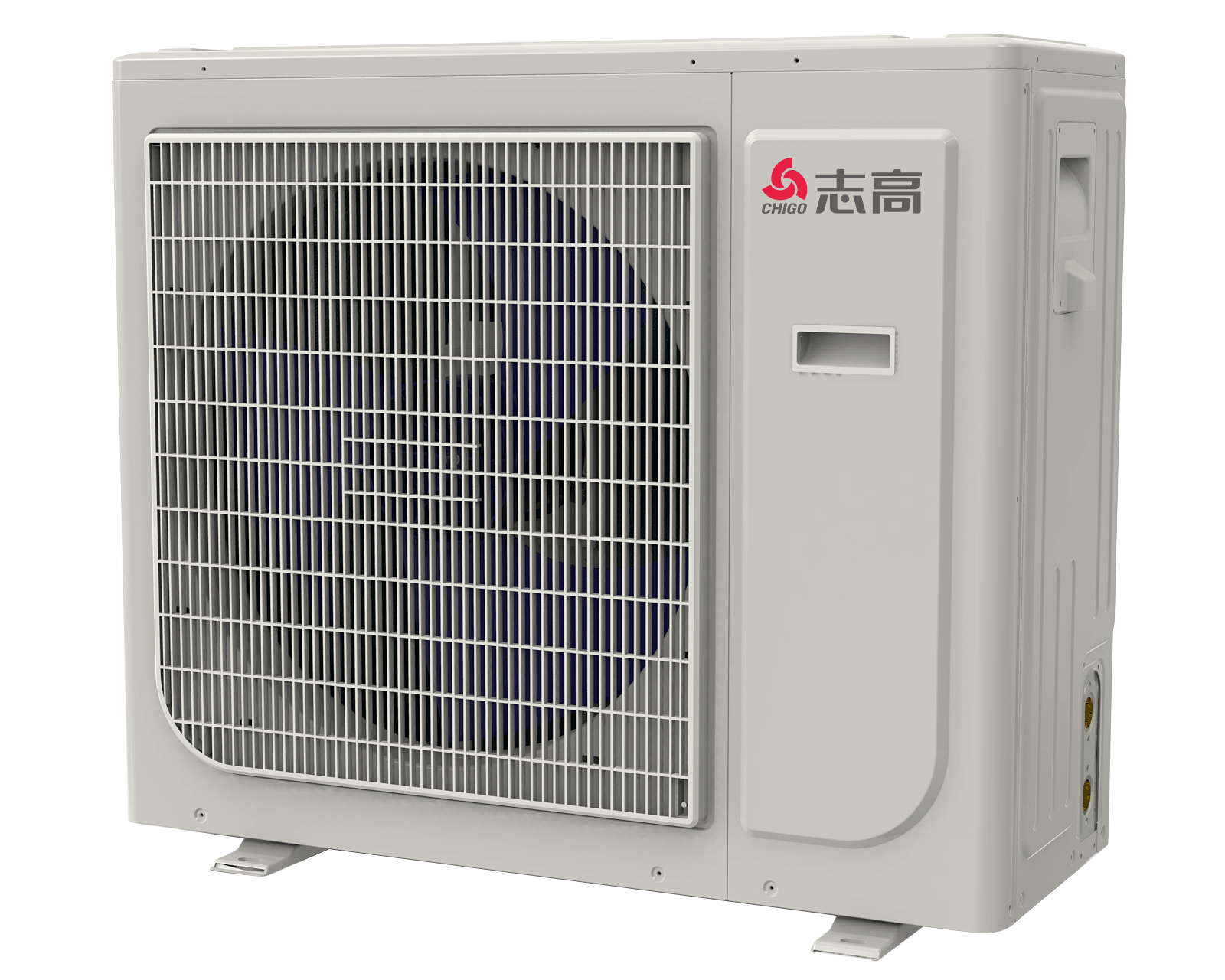

LSCN-7/DF3

Product model		LSZCN-7/DF3
Rated working condition (7 ℃, 45)	Heating capacity	8200W
	Input power/current	2400W/11.2A
	COP	3.36W/W
Refrigeration condition (35℃)	Refrigerating capacity	7000W
	Input power/current	2397W/11A
	COP	2.92W/W
Power specifications		220V/50Hz
Operating temperature range		-15～43℃
cryogen		R410A
Waterway interface		DN25 (internal tooth)
Rated water flow		1.21m³/h
Heat exchanger	Water side	High efficiency tank/plate replacement
	Windward side	Tube fin heat exchanger
noise		≤59dB(A)
Fan type		Axial flow fan × one
Air outlet form		be born of a concubine
Overall dimensions		one thousand and thirty × three hundred and eighty × 803mm (including footing)
Net weight		93kg
Rated working condition: measured at ambient temperature of 7 ℃/6 ℃ and effluent temperature of 45 ℃; Refrigeration working condition: under the ambient temperature of 35 ℃, the water temperature is 7 ℃; The above parameters are for reference only, see the nameplate of the product body for details
