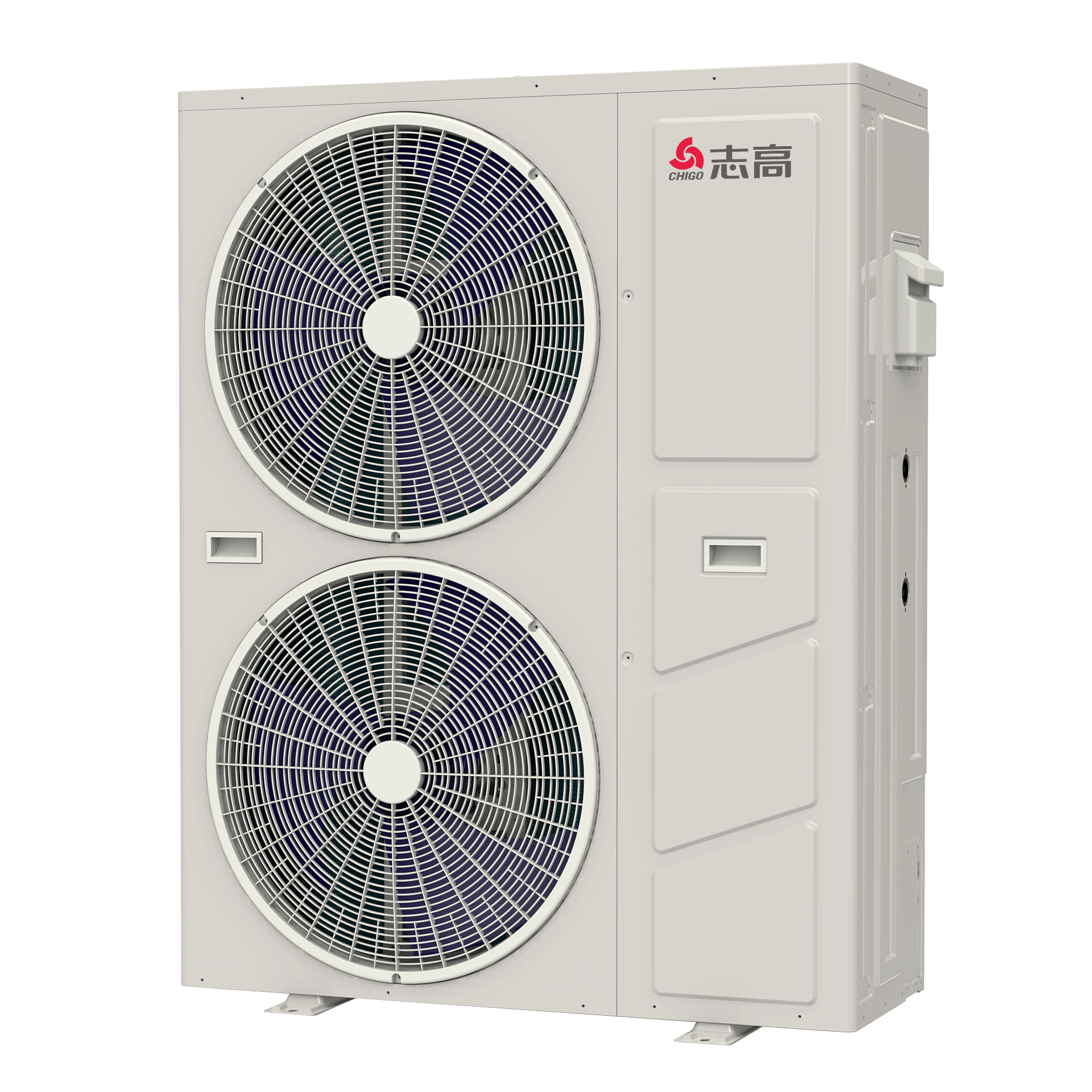

LSCN-17/DF3

Product model		LSZCN-17/DF3
Rated working condition (7 ℃, 45)	Heating capacity	18000W
	Input power/current	5200W/24.4A
	COP	3.46W/W
Refrigeration condition (35℃)	Refrigerating capacity	17000W
	Input power/current	5537W/25.7A
	COP	3.07W/W
Power specifications		220V/50Hz
Operating temperature range		-15～43℃
cryogen		R410A
Waterway interface		DN25 (internal tooth)
Rated water flow		2.92m³/h
Heat exchanger	Water side	High efficiency tank/plate replacement
	Windward side	Tube fin heat exchanger
noise		≤64dB(A)
Fan type		Axial flow fan × two
Air outlet form		be born of a concubine
Overall dimensions		one thousand and thirty × three hundred and eighty × 1330 (including footing)
Net weight		152kg
Rated working condition: measured at ambient temperature of 7 ℃/6 ℃ and effluent temperature of 45 ℃; Refrigeration working condition: under the ambient temperature of 35 ℃, the water temperature is 7 ℃; The above parameters are for reference only, see the nameplate of the product body for details
