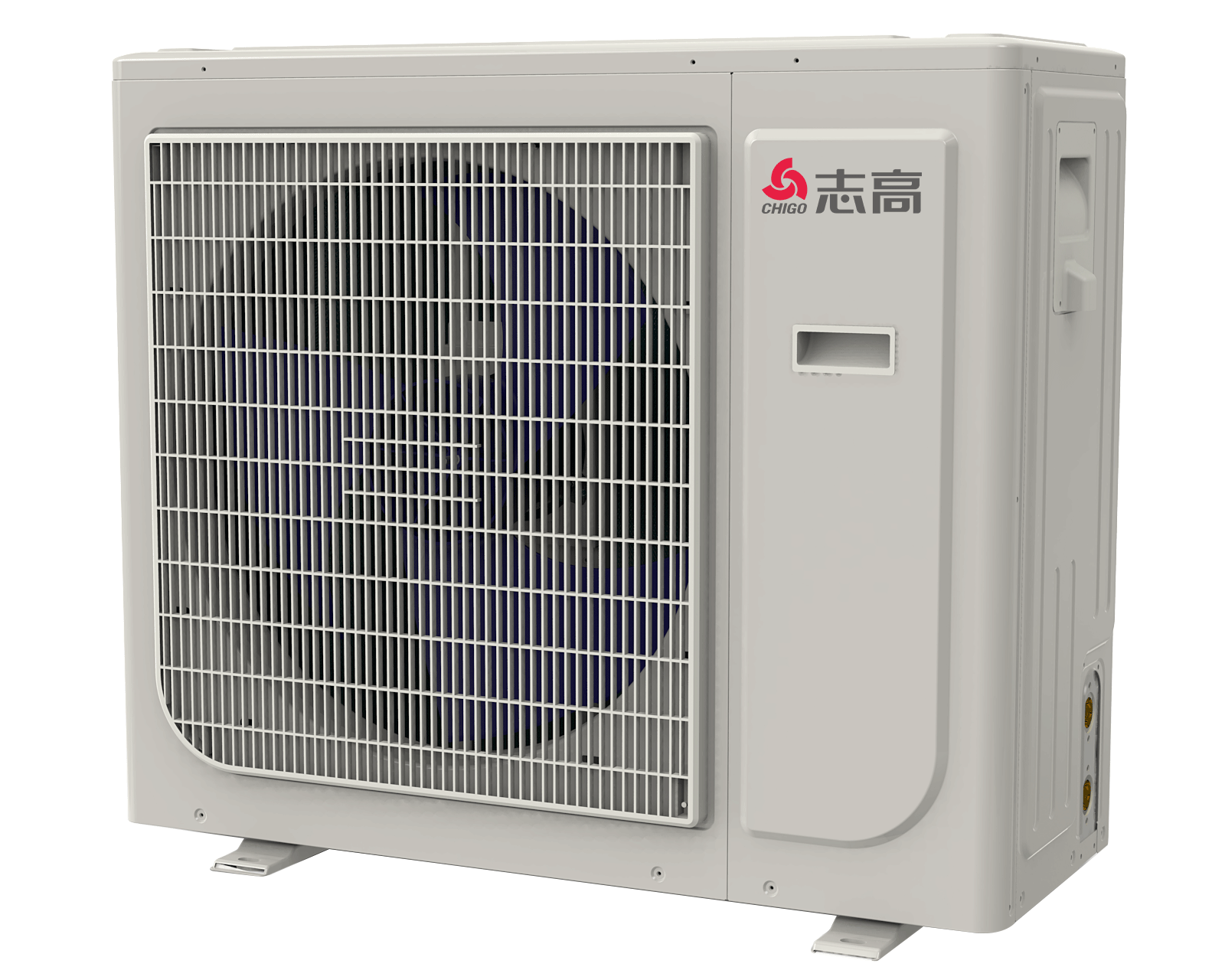

DKZCN-9/DFA

Product model		DKZCN-9/DFA
Rated working condition (7 ℃, 45)	Heating capacity	8200W
	Input power/current	2400W/11.2A
	COP	3.36W/W
Nominal working condition (- 12 ℃)	Heating capacity	6000W
	Input power/current	2597W/12.2A
	COP	2.31W/W
	IPLV(H)	2.71W/W
Refrigeration condition (35 ℃)	Refrigerating capacity	5300W
	Input power/current	2111W/9.9A
	COP	2.51W/W
Power specifications		220V/50Hz
Operating temperature range		-30～43℃
cryogen		R410A
Waterway interface		DN25 (internal tooth)
Water flow (low temperature - 12 ℃ is recommended)		1.03m³/h
Heat exchanger	Water side	Casing heat exchanger
	Windward side	Finned heat exchanger
noise		≤63dB(A)
Fan type		Axial flow fan × one
Air outlet form		be born of a concubine
Overall dimensions		one thousand and thirty × three hundred and eighty × 803mm (including footing)
Net weight		54kg
The above parameters are for reference only, see the nameplate of the product body for details
