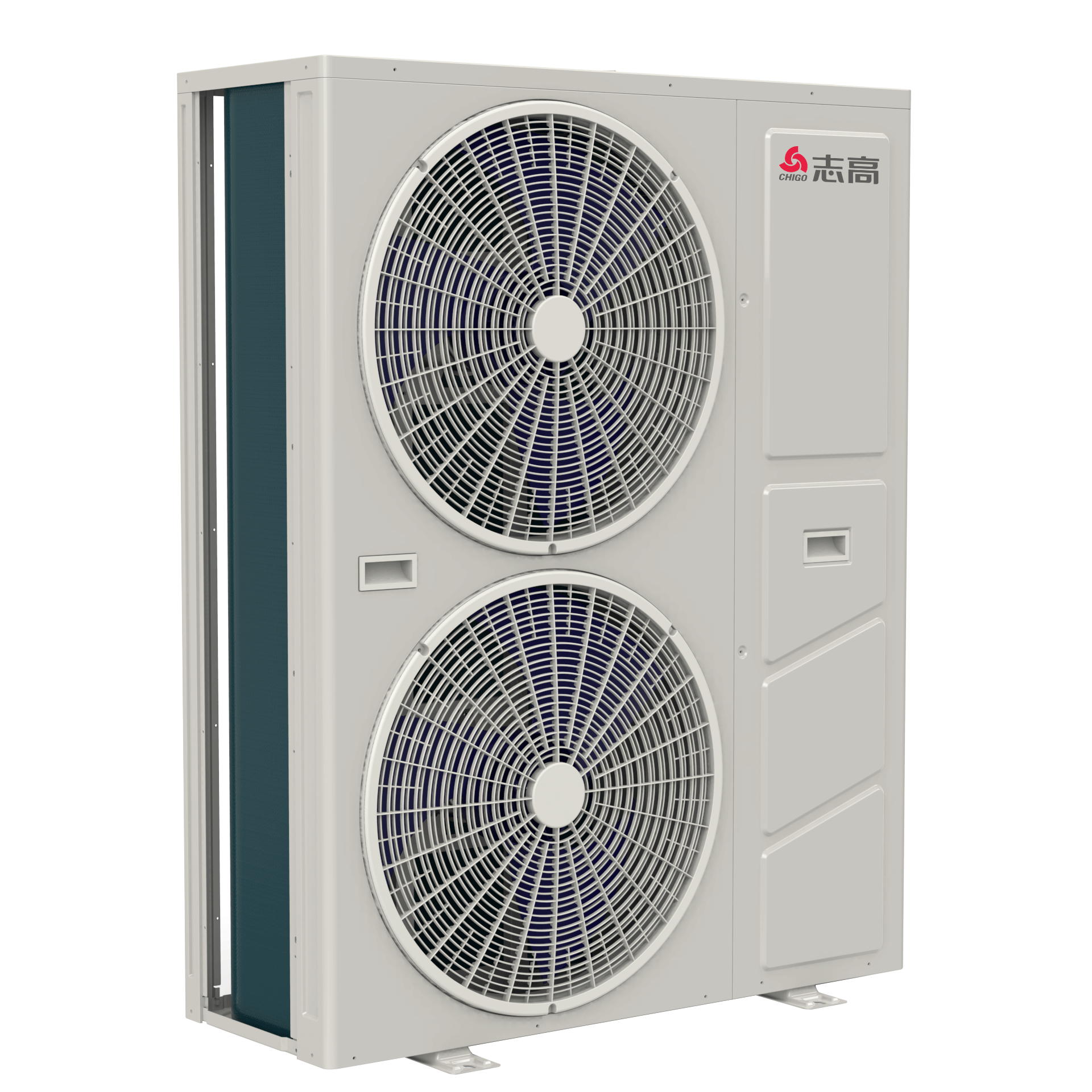

DKZN-24S/DF(380)

Product model		DKZN-24S/DF
Rated working condition (7 ℃, 45)	Heating capacity	22000W
	Input power/current	6567W/12.2A
	COP	3.35W/W
Nominal working condition (- 12 ℃)	Heating capacity	14000W
	Input power/current	6334W/11.8A
	COP	2.21W/W
	IPLV(H)	2.72W/W
Refrigeration condition (35 ℃)	Refrigerating capacity	12000W
	Input power/current	5128W/9.7A
	COP	2.30W/W
Power specifications		380V/50Hz
Operating temperature range		-30～43℃
cryogen		R410A
Waterway interface		DN25 (internal tooth)
Water flow (low temperature - 12 ℃ is recommended)		2.41m³/h
Heat exchanger	Water side	Casing heat exchanger
	Windward side	Finned heat exchanger
noise		≤65dB(A)
Fan type		Axial flow fan × two
Air outlet form		be born of a concubine
Overall dimensions		one thousand and thirty × three hundred and eighty × 1330mm (including footing)
Net weight		121kg
The above parameters are for reference only, see the nameplate of the product body for details
