| Product model | DKZCN-40S/D3 | |
| Low temperature heating rated working condition (7°C) | Heating capacity | 40000W |
| Input power | 11080W/20.5A | |
| COP | 3.61W/W | |
| Low temperature heating nominal working condition (-12°C) | Heating capacity | 26000W |
| Input power | 10000W/18.5A | |
| COP | 2.6W/W | |
| IPLV(H) | 2.81W/W | |
| Nominal refrigeration condition (35°C) | Cooling capacity | 32000W |
| Input power | 9876W/18.2A | |
| COP | 3.24W/W | |
| IPLV(C) | 4.01W/W | |
| Power supply specifications | 380V/50Hz | |
| Operating temperature range | -25℃~43℃ | |
| Refrigerant | R410A | |
| Waterway interface | DN40 (external tooth) | |
| Water flow rate (recommended at low temperature -12°C) | 4.5m³/h | |
| Heat exchanger | Water side | Sleeve heat exchanger |
| Waterside | Finned heat exchangers | |
| Inlet and outlet water pressure drop | 45Kpa | |
| noises | 68dB(A) | |
| Fan type | Axial fan*1 | |
| Air outlet form | Ejection | |

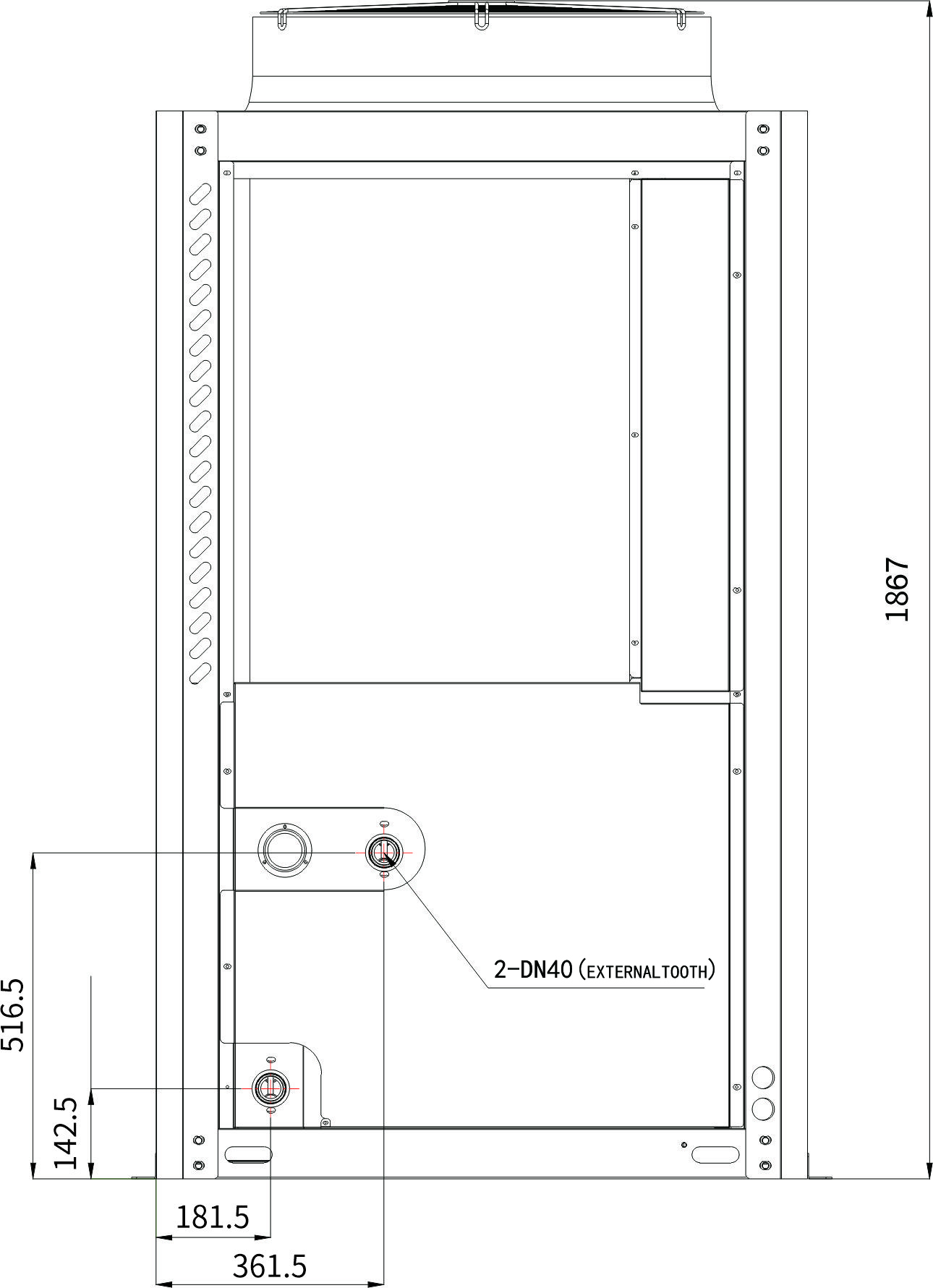

| Dimension(mm) | 1036*902*1867(Including foot) | |
| net weight | 380Kg | |
| Note: The above parameters and pictures are for reference only, the actual details shall be subject to the nameplate of the fuselage | ||
