| Product model | DKZCN-80S/T3 | |
| Low temperature heating rated working conditions（7℃） | Heating capacity | 80000W |
| Input power | 22160W/41.1A | |
| COP | 3.61W/W | |
| Low temperature heating nominal working condition（-12℃） | Heating capacity | 51000W |
| Input power | 19600W/36.3A | |
| COP | 2.6W/W | |
| IPLV(H) | 2.81W/W | |
| Refrigeration nominal working conditions（35℃） | Cooling capacity | 65000W |
| Input power | 20060W/37.2A | |
| COP | 3.24W/W | |
| IPLV(C) | 4.01W/W | |
| Power supply specifications | 380V/50Hz | |
| Operating temperature range | -25℃~43℃ | |
| Refrigerant | R410A | |
| Waterway interface | DN65(flange) | |
| Water flow rate (recommended at low temperature -12°C) | 8.8m³/h | |
| Heat exchanger | Water side | Wind side |
| Wind side | Finned heat exchangers | |
| Inlet and outlet water pressure drop | 55Kpa | |
| noise | 70dB(A) | |
| Fan type | Axial fans*2 | |
| Air outlet form | Ejection | |

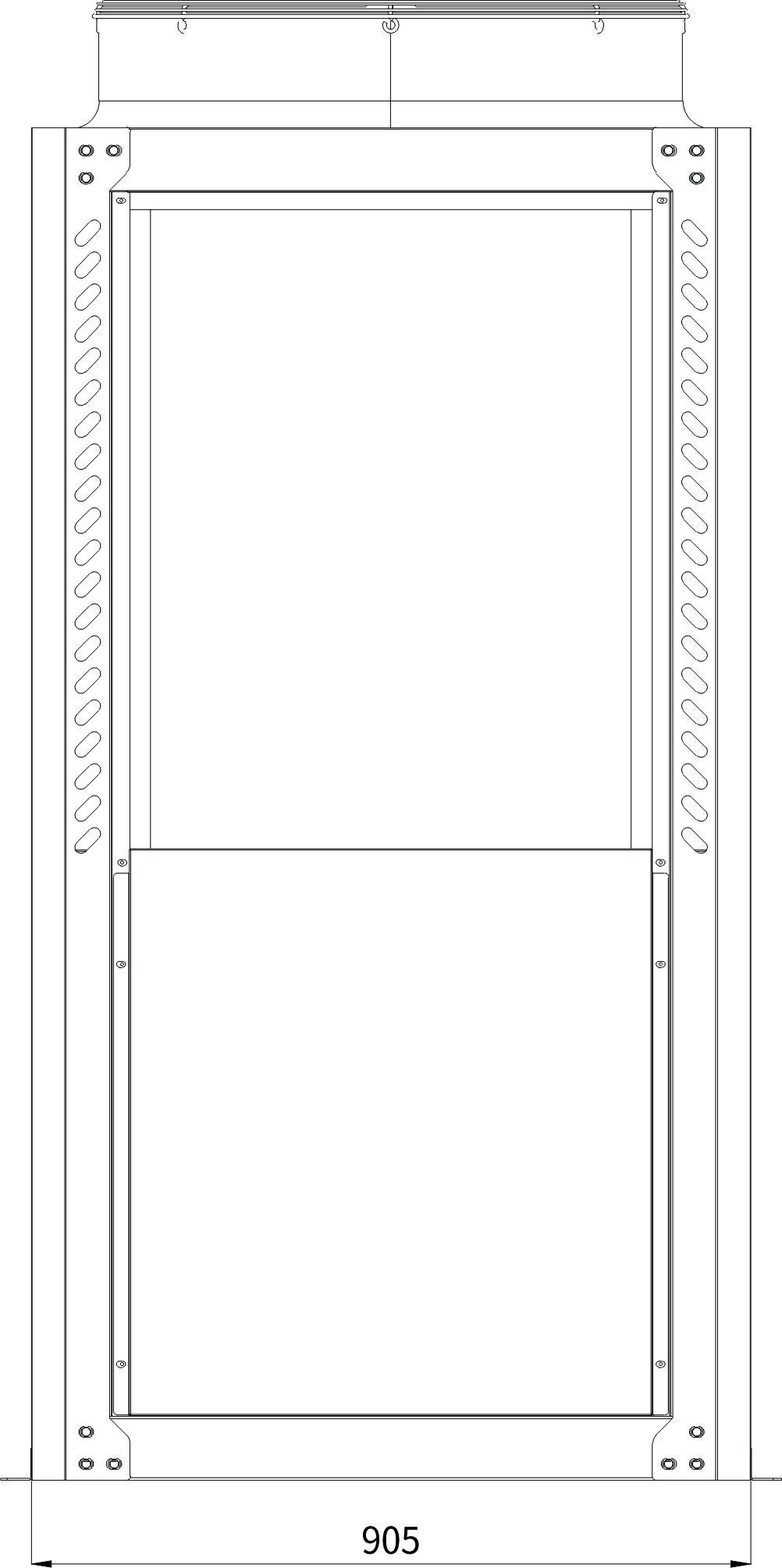

| Form factor（mm） | 1905*905*1875（Feet included） | |
| net weight | 680Kg | |
| Note: The above parameters and pictures are for reference only, the actual details shall be subject to the nameplate of the fuselage | ||
