Wind sideInlet and outlet water pressure dropnoisesFan typeAir outlet form

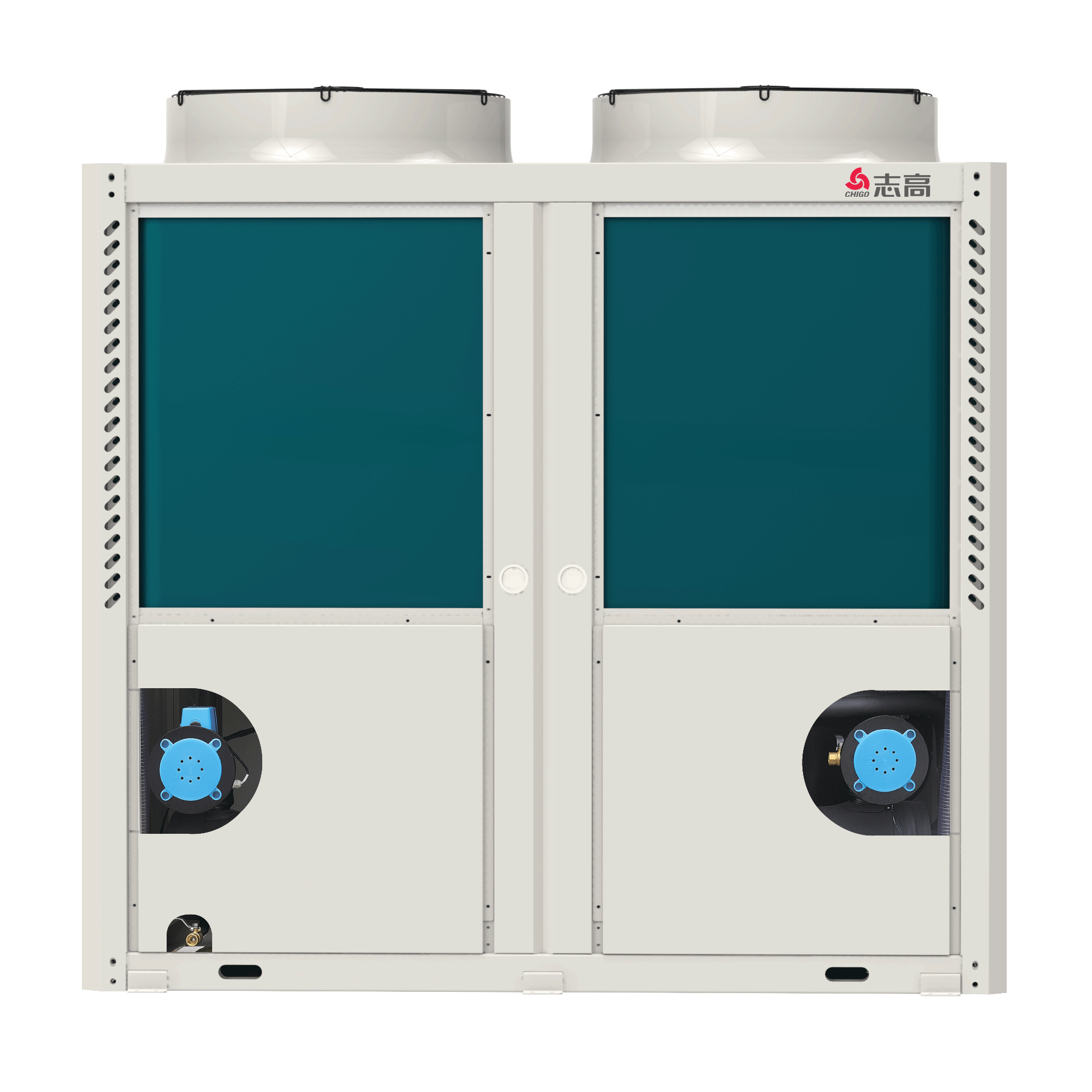

| Product model | DKZCN-90S/T3 | |
| Low temperature heating rated working conditions （7℃） | Heating capacity | 90000W |
| Input power | 24900W/46.1A | |
| COP | 3.61W/W | |
| Low temperature heating nominal working condition (-12°C) | Heating capacity | 60000W |
| Input power | 23000W/42.6A | |
| COP | 2.6W/W | |
| IPLV(H) | 2.81W/W | |
| Refrigeration nominal working conditions（35℃） | Cooling capacity | 70000W |
| Input power | 21600W/40.0A | |
| COP | 3.24W/W | |
| IPLV(C) | 4.01W/W | |
| Power supply specifications | 380V/50Hz | |
| Operating temperature range | -25℃~43℃ | |
| Refrigerant | R410A | |
| Waterway interface | DN65(flange) | |
| Water flow rate (recommended at low temperature -12°C) | 10.3m³/h | |
| Heat exchanger | Water side | Shell-and-tube heat exchangers |
| Finned heat exchangers | ||
| 55Kpa | ||
| 70dB(A) | ||

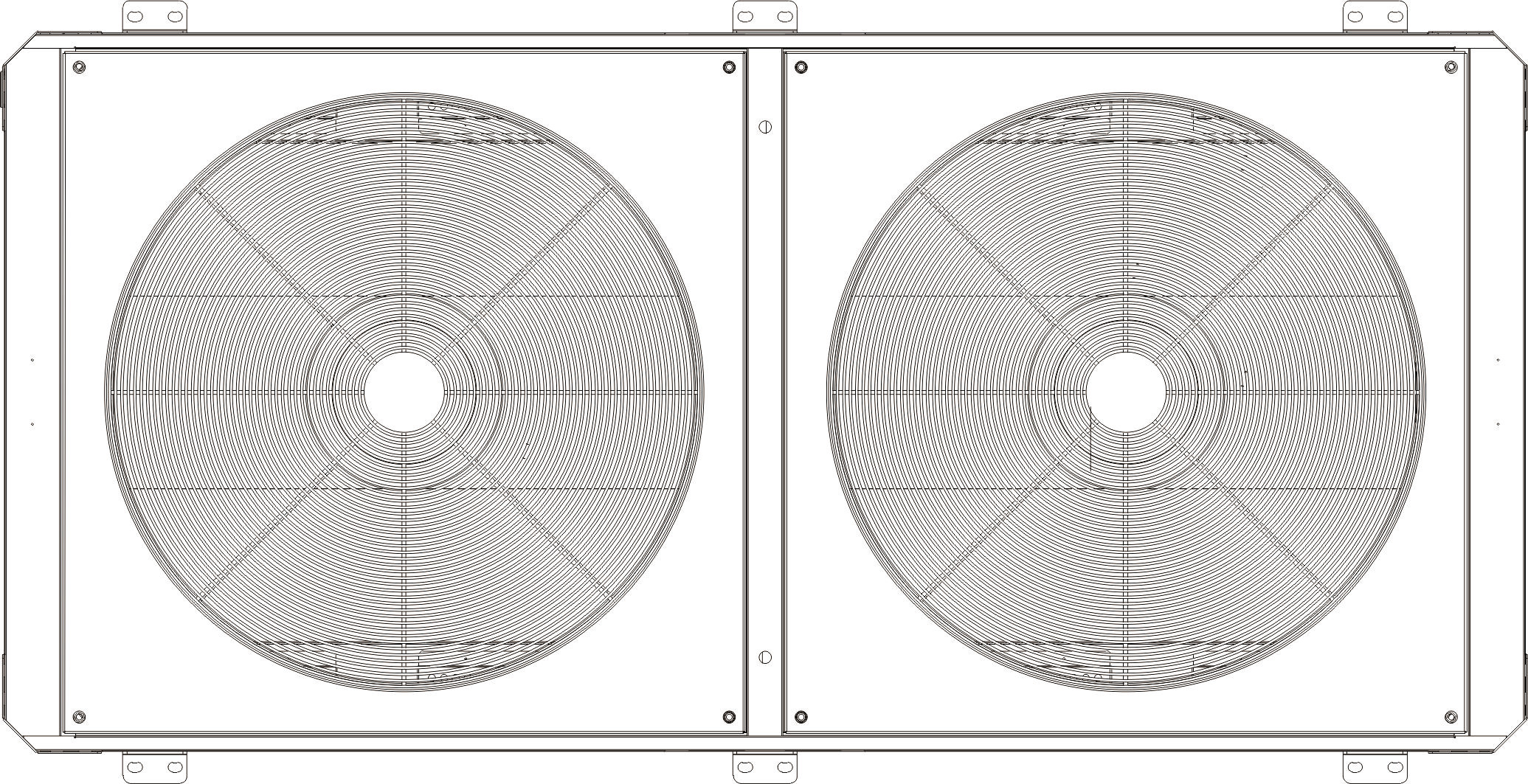

| Axial fans*2 | ||
| Ejection | ||

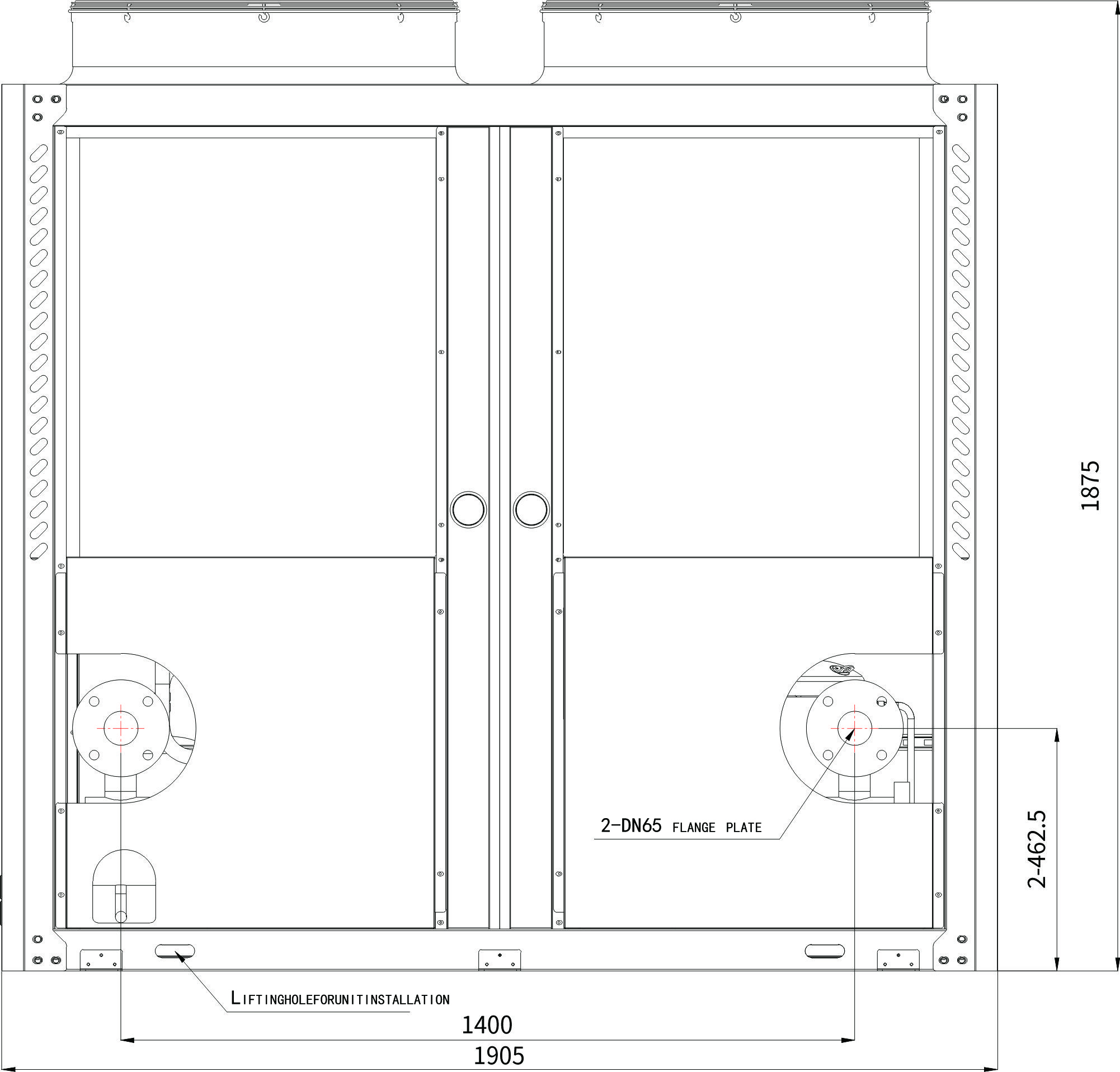

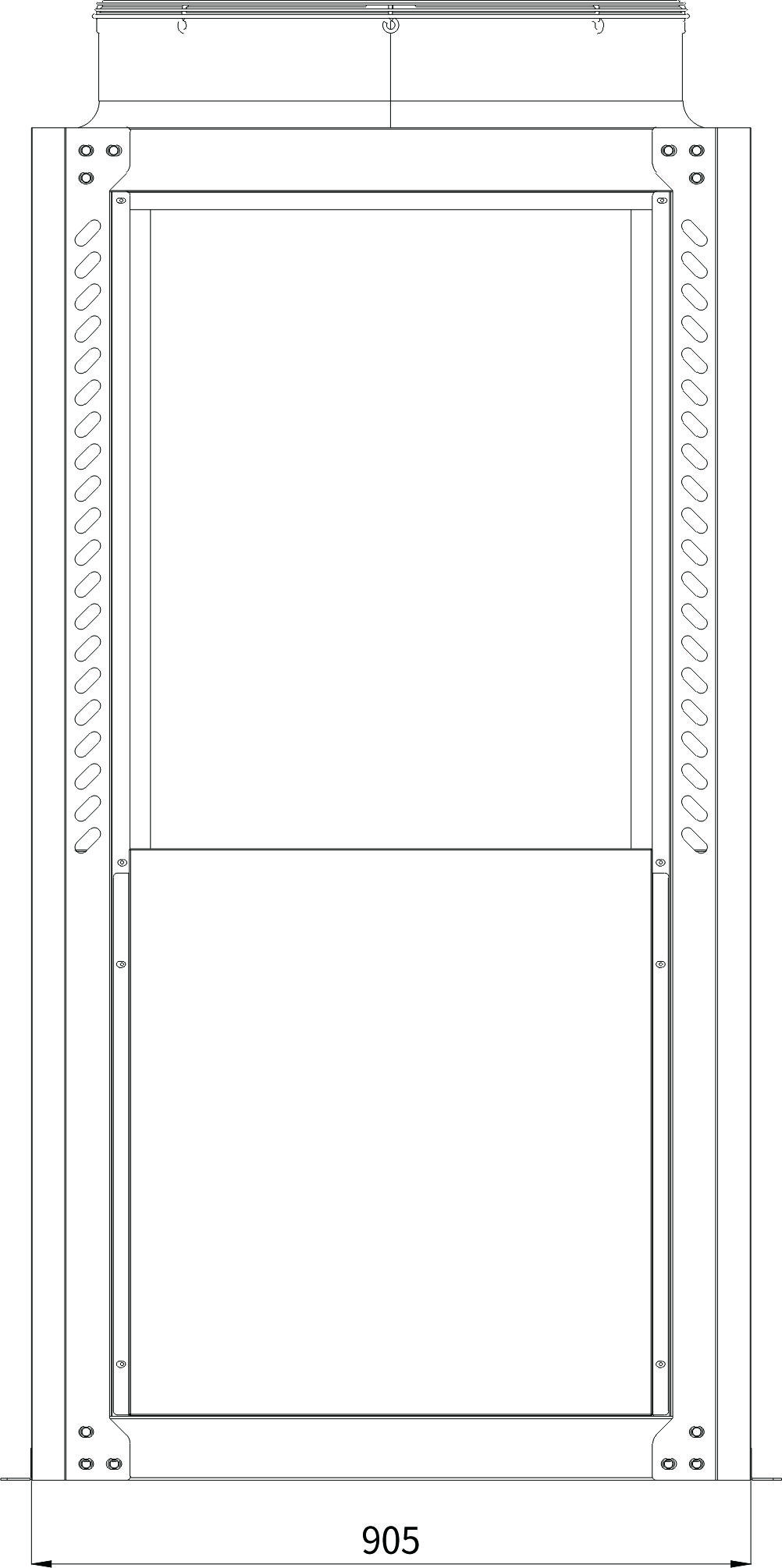

| Form factor（mm） | 1905*905*1875（Feet included） | |
| net weight | 700Kg | |
| Note: The above parameters and pictures are for reference only, the actual details shall be subject to the nameplate of the fuselage | ||
