Product modelnoises
| DKZCN-160S/F3 | ||
| Low temperature heating rated working condition (7°C) | Heating capacity | 160000W |
| Input powe | 44320W/82.1A | |
| COP | 3.61W/W | |
| Low temperature heating nominal working condition (-12°C)Heating capacity100000W | Heating capacity | |
| Input power | 38460W/71.3A | |
| COP | 2.6W/W | |
| IPLV(H) | 2.81W/W | |
| Nominal refrigeration condition (35°C) | Cooling capacity | 126000W |
| Input power | 29000W/72.3A | |
| COP | 3.23W/W | |
| IPLV(C) | 4.05W/W | |
| Power supply specifications | 380V/50Hz | |
| Operating temperature range | -25℃~43℃ | |
| Refrigerant | R410A | |

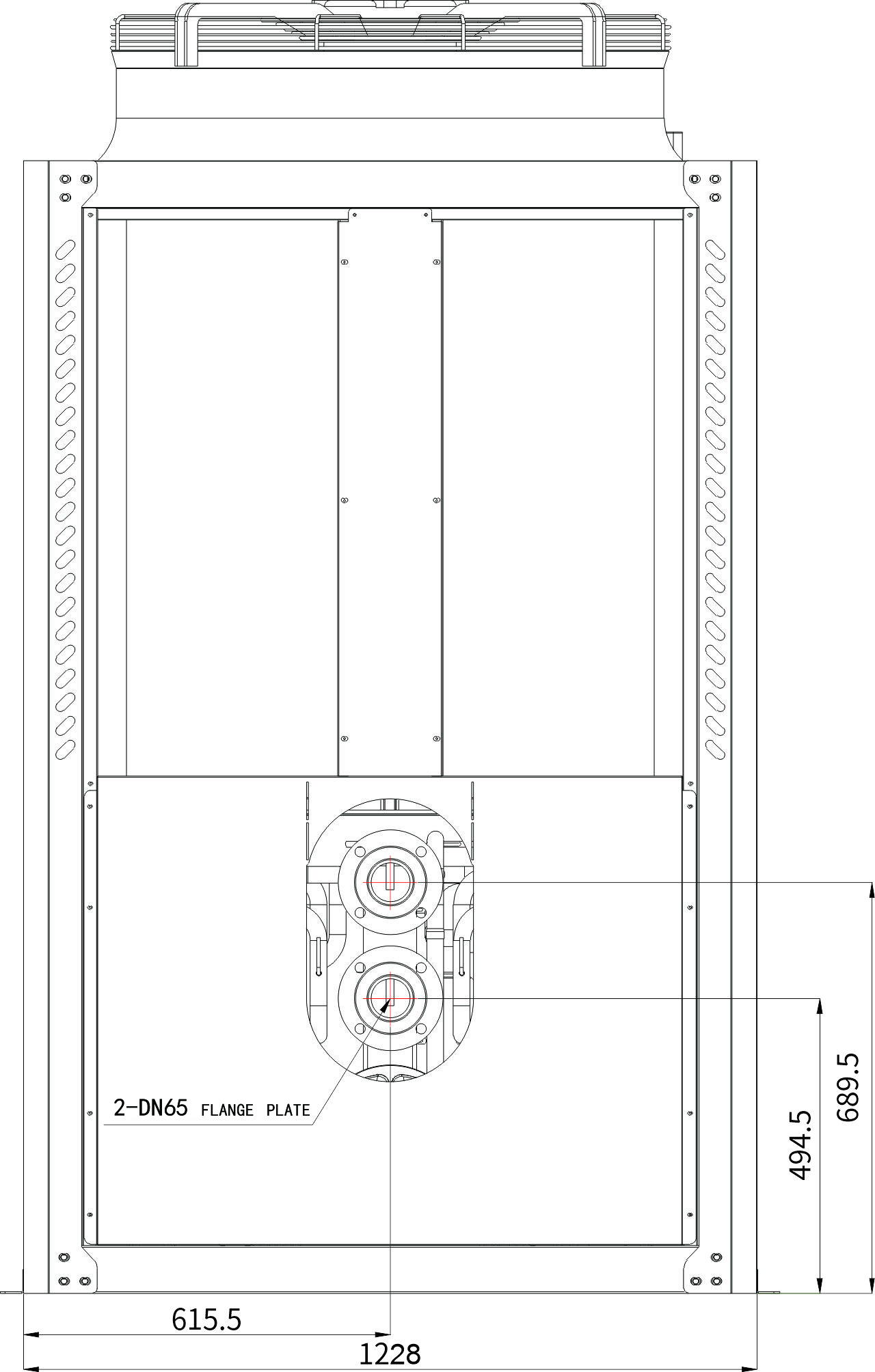

| Waterway interface | DN65(flange) | |
| Water flow rate (recommended at low temperature -12°C) | 17.2m³/h | |
| Heat exchanger | Water side | Shell-and-tube heat exchangers |
| Wind side | Finned heat exchangers | |
| Inlet and outlet water pressure drop | 50Kpa | |
| 75dB(A) | ||
| Fan type | Axial fans*2 | |
| Air outlet form | Ejection | |

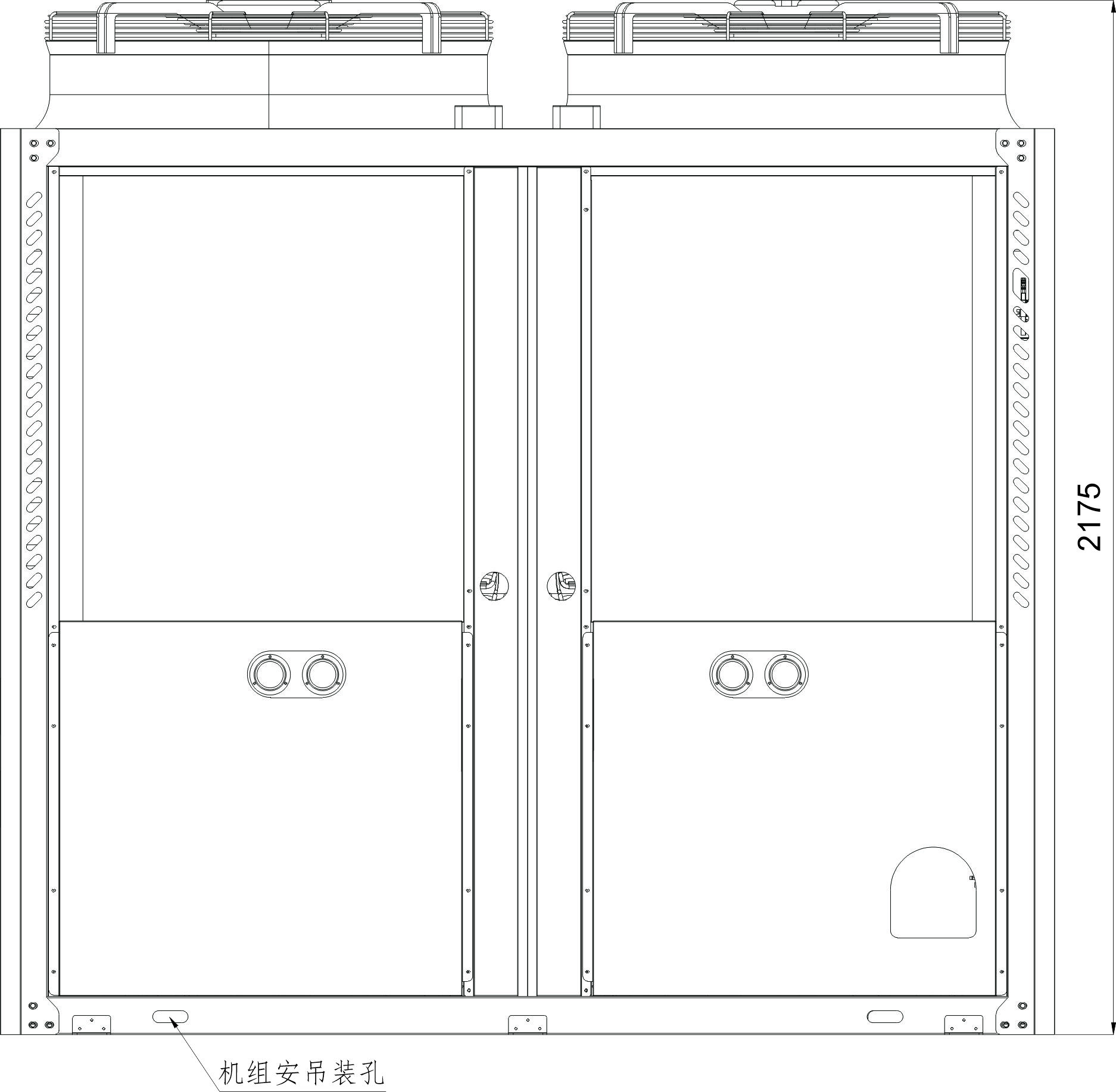

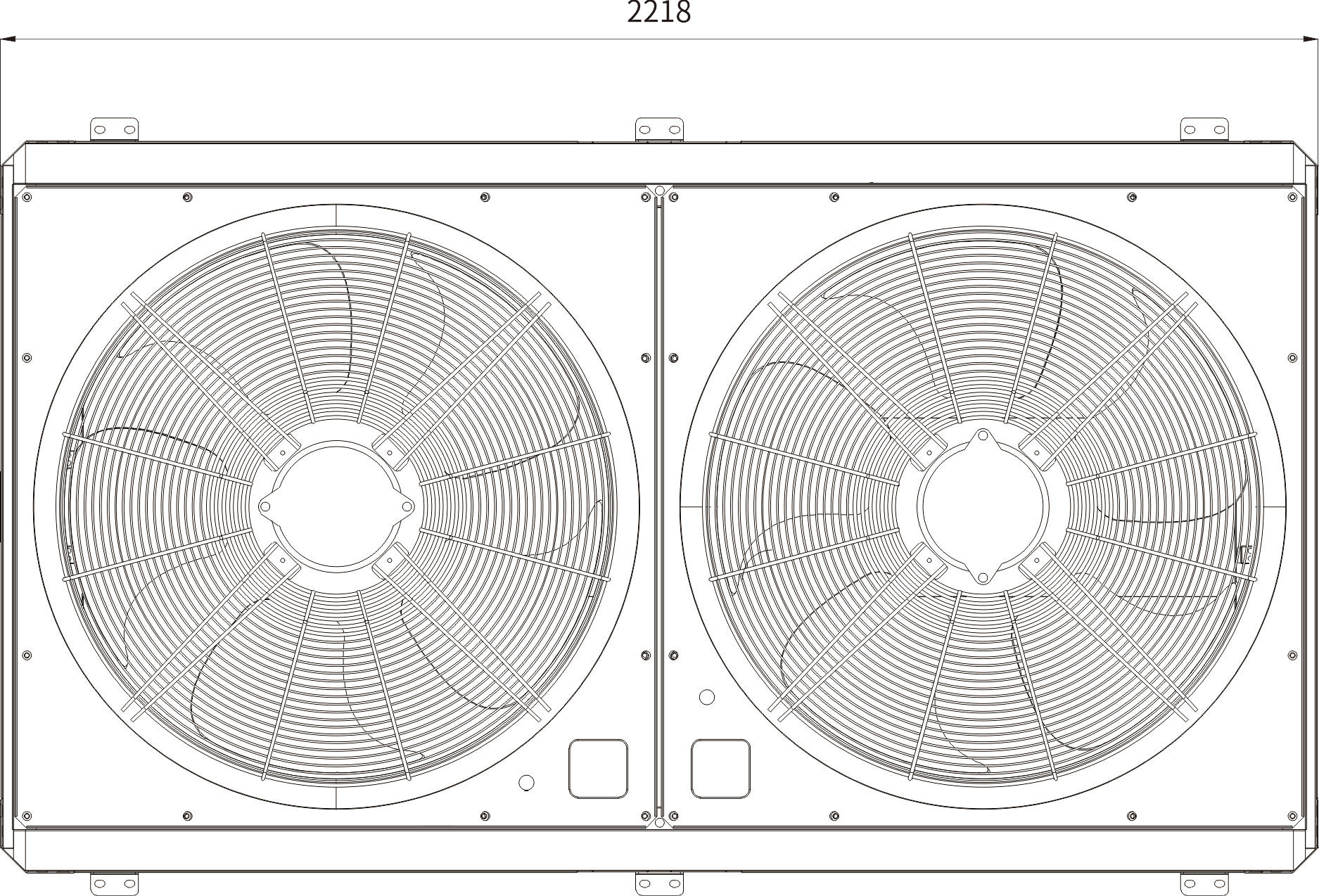

| Form factor（mm） | 2118*1228*2175（Feet included） | |
| net weight | 1250Kg | |
| Note: The above parameters and pictures are for reference only, the actual details shall be subject to the nameplate of the fuselage | ||
