notice: * A7/W35：Performance Condition: Outdoor air 7℃/6℃, Inlet/Outlet water 30℃/35℃ * A-7/W35：Performance Condition: Outdoor air -7℃/-8℃, Inlet/Outlet water 30℃/35℃ * A-7/W52：Performance Condition: Outdoor air -7℃/-8℃, Inlet/Outlet water 44℃/52℃ * A-10/W55：Performance Condition: Outdoor air -12℃/-10℃, Inlet/Outlet water 47℃/55℃ * A35/W7：Performance Condition: Outdoor air 35℃/24℃, Inlet/Outlet water 7℃/6℃ * A35/W18：Performance Condition: Outdoor air 35℃/24℃, Inlet/Outlet water 23℃/18℃ * The above data is for reference only; specific data is subject to the product nameplate. * The above models and specification are for reference only,we can also make the OEM or ODM as per the customer\\\\\\\\\\\\\\\'s needs.

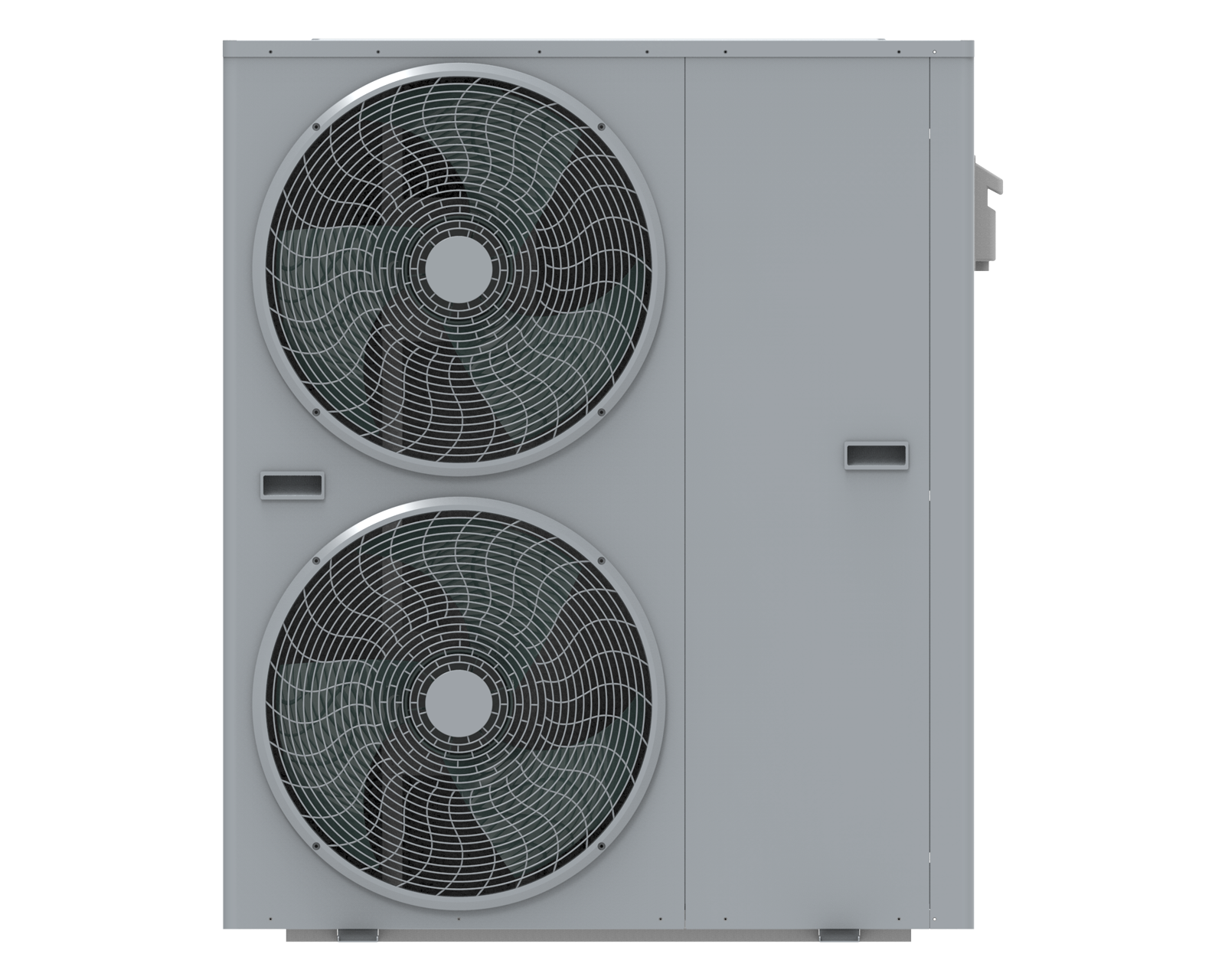

| Model | 8P/380V | |||
| Model Code | CHP-16Ⅲ/CD3 | |||
| Power Supply | V/ph/Hz | 380-420/3/50 | ||
| technical parameters | A7/W35 | Heating Capacity | KW | 16 |
| Heating Power Input | KW | 3.39 | ||
| COP | W/W | 4.72 | ||
| A-7/W35 | Heating Capacity | KW | 13.4 | |
| Heating Power Input | KW | 4.41 | ||
| COP | W/W | 3.04 | ||
| A-7/W52 | Heating Capacity | KW | 12.5 | |
| Heating Power Input | KW | 5.79 | ||
| COP | W/W | 2.16 | ||
| A-10/W55 | Heating Capacity | KW | 11.3 | |
| Heating Power Input | KW | 5.95 | ||
| COP | W/W | 1.9 | ||
| A35/W18 | Heating Capacity | KW | 13.4 | |
| Heating Power Input | KW | 3.54 | ||
| COP | W/W | 3.78 | ||
| A35/W7 | Heating Capacity | KW | 13.6 | |
| Heating Power Input | KW | 4.98 | ||
| EER | W/W | 2.73 | ||
| ErP Level (35℃) | / | A+++ | ||
| ErP Level (55℃) | / | A++ | ||
| Max input cerrent | A | 16 | ||
| Max input power | KW | 8 | ||
| Sound Power Level (EN12102 35℃) | dB(A) | 64 | ||
| Net/Gross weight | kg | 142/162 | ||
| Operating Ambient Temperature | ℃ | -30~43 | ||
| Water Flow | m3 /h | 2.75 | ||
| Water Connection | mm | DN25 | ||
| Unit indoor Dimensions (W/H/D) | mm | / | ||
| Unit outdoor Dimensions (W/H/D) | mm | 1121*424*1343 | ||
| Shipping Dimensions (W/H/D) | mm | 1180*490*1445 | ||
| standard features | Refrigerant | Type | / | R32 |
| Compressor | Type | / | Rotary | |
| Fan Motor | Type | / | DC Motor | |
| Control | Type | / | Digital LCD and wifi control | |
| Circulation Pump | Type | / | inverter driven pump | |
| Plate Heat Exchanger | Type | / | Plate Heat Exchanger | |
| Fin Evaporator | Type | / | Louverd&hydrophilic fin-tubes | |
| 4-way Valve | Type | / | 4-way Valve | |
