notice: * A7/W35：Performance Condition: Outdoor air 7℃/6℃, Inlet/Outlet water 30℃/35℃ * A-7/W35：Performance Condition: Outdoor air -7℃/-8℃, Inlet/Outlet water 30℃/35℃ * A-7/W52：Performance Condition: Outdoor air -7℃/-8℃, Inlet/Outlet water 44℃/52℃ * A-10/W55：Performance Condition: Outdoor air -12℃/-10℃, Inlet/Outlet water 47℃/55℃ * A35/W7：Performance Condition: Outdoor air 35℃/24℃, Inlet/Outlet water 7℃/6℃ * A35/W18：Performance Condition: Outdoor air 35℃/24℃, Inlet/Outlet water 23℃/18℃ * The above data is for reference only; specific data is subject to the product nameplate. * The above models and specification are for reference only,we can also make the OEM or ODM as per the customer\'s needs.

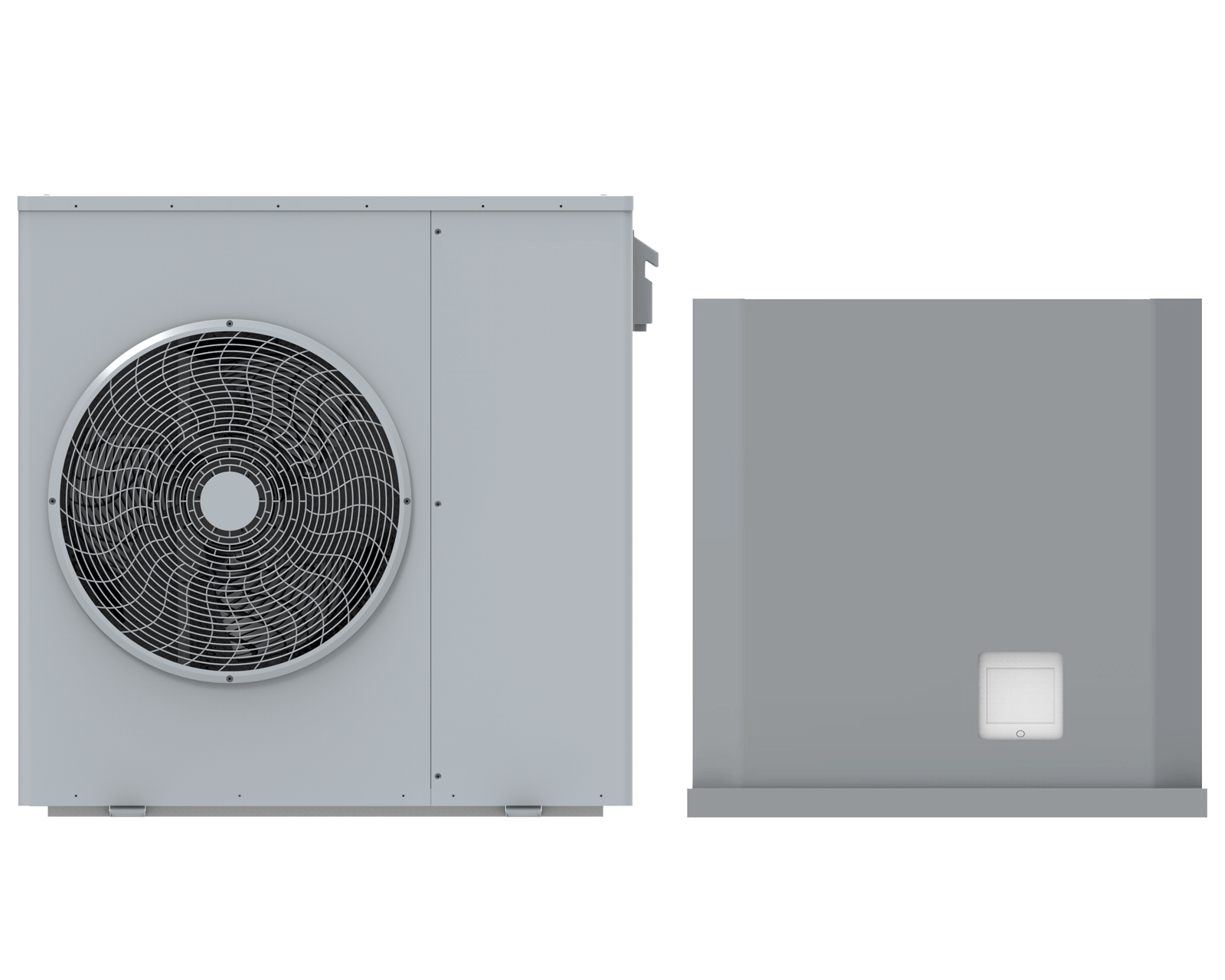

| Model Code | CHP-8Ⅱ/CD3 | ||||
| Power Supply | V/ph/Hz | 220-240/1/50 | |||
| technical parameters | A7/W35 | Heating Capacity | KW | 8 | |
| Heating Power Input | KW | 1.63 | |||
| COP | W/W | 4.91 | |||
| A-7/W35 | Heating Capacity | KW | 7.13 | ||
| Heating Power Input | KW | 2.3 | |||
| COP | W/W | 3.1 | |||
| A-7/W52 | Heating Capacity | KW | 6.72 | ||
| Heating Power Input | KW | 3.33 | |||
| COP | W/W | 2.02 | |||
| A-10/W55 | Heating Capacity | KW | 6.60 | ||
| Heating Power Input | KW | 3.79 | |||
| COP | W/W | 1.74 | |||
| A35/W18 | Heating Capacity | KW | 7.01 | ||
| Heating Power Input | KW | 1.58 | |||
| COP | W/W | 4.45 | |||
| A35/W7 | Cooling Capacity | KW | 6.4 | ||
| Cooling Power Input | KW | 2.18 | |||
| EER | W/W | 2.93 | |||
| ErP Level (35℃) | / | A+++ | |||
| ErP Level (55℃) | / | A++ | |||
| Max input cerrent | A | 22 | |||
| Max input power | KW | 4.4 | |||
| Sound Power Level (EN12102 35℃) | dB(A) | 56 | |||
| Net/Gross weight | kg | 115/125 | |||
| Operating Ambient Temperature | ℃ | -30~43 | |||
| Water Flow | m3/h | 1.38 | |||
| Water Connection | mm | DN25 | |||
| Unit indoor Dimensions (W/H/D) | mm | 790*288*505 | |||
| Unit outdoor Dimensions (W/H/D) | mm | 1121*424*1053 | |||
| Unit indoor Shipping Dimensions (W/H/D) | 810*298**605 | ||||
| Unit outdoor Shipping Dimensions (W/H/D) | mm | 1180*490*1155 | |||
| standard features | Refrigerant | Type | / | R32 | |
| Compressor | Type | / | Rotary | ||
| Fan Motor | Type | / | DC Motor | ||
| Control | Type | / | Digital LCD and wifi control | ||
| Circulation Pump | Type | / | inverter driven pump | ||
| Plate Heat Exchanger | Type | / | Plate Heat Exchanger | ||
| Fin Evaporator | Type | / | Louverd&hydrophilic fin-tubes | ||
| 4-way Valve | Type | / | 4-way Valve | ||
