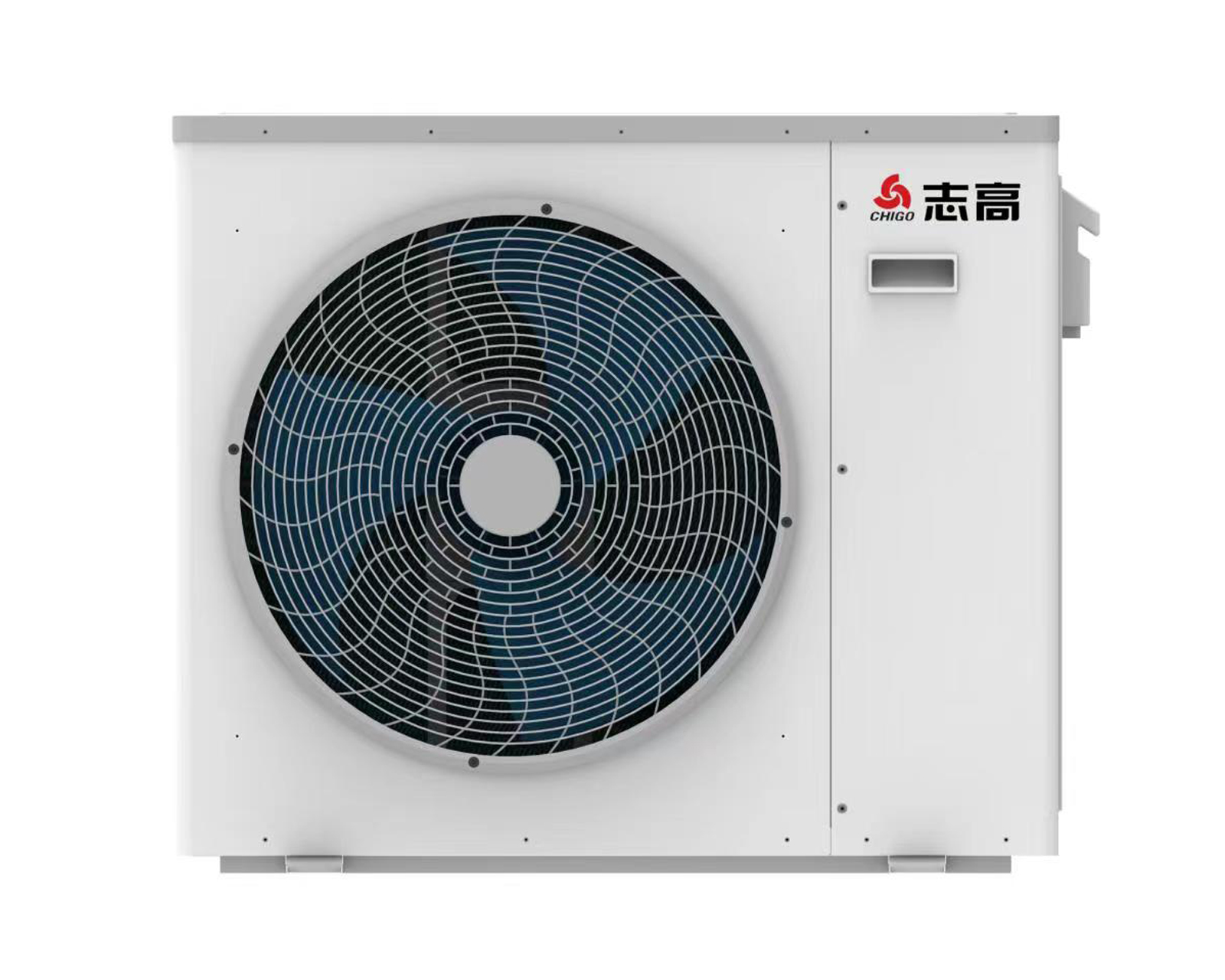

R410a/monoblock-CHP-6Ⅱ/CD4

notice: * A7/W35：Performance Condition: Outdoor air 7℃/6℃, Inlet/Outlet water 30℃/35℃ * A-7/W35：Performance Condition: Outdoor air -7℃/-8℃, Inlet/Outlet water 30℃/35℃ * A-7/W52：Performance Condition: Outdoor air -7℃/-8℃, Inlet/Outlet water 44℃/52℃ * A-10/W55：Performance Condition: Outdoor air -12℃/-10℃, Inlet/Outlet water 47℃/55℃ * A35/W7：Performance Condition: Outdoor air 35℃/24℃, Inlet/Outlet water 7℃/6℃ * A35/W18：Performance Condition: Outdoor air 35℃/24℃, Inlet/Outlet water 23℃/18℃ * The above data is for reference only; specific data is subject to the product nameplate. * The above models and specification are for reference only,we can also make the OEM or ODM as per the customer\'s needs.

Model Code					CHP-6Ⅱ/CD4
Power Supply				V/ph/Hz	220-240/1/50
technical parameters	A7/W35	Heating Capacity		KW	6
		Heating Power Input		KW	1.4
		COP		W/W	4.28
	A-7/W35	Heating Capacity		KW	5.08
		Heating Power Input		KW	1.79
		COP		W/W	2.84
	A-7/W52	Heating Capacity		KW	4.86
		Heating Power Input		KW	2.7
		COP		W/W	1.8
	A-10/W55	Heating Capacity		KW	4.52
		Heating Power Input		KW	2.86
		COP		W/W	1.58
	A35/W7	Cooling Capacity		KW	4.8
		Cooling Power Input		KW	1.83
		EER		W/W	2.6
	A35/W18	Cooling Capacity		KW	5.41
		Cooling Power Input		KW	1.36
		EER		W/W	4.0
	SCOP Level (35℃)			/	A++
	SCOP Level (55℃)			/	A++
	Max input cerrent			A	17
	Max input power			KW	3.5
	Sound Power Level (EN12102 35℃)			dB(A)	54
	Net/Gross weight			kg	88/98
	Operating Ambient Temperature			℃	-30~43
	Water Flow			m3/h	1.03m³/h
	Water Connection			mm	DN25
	Unit outdoor Dimensions (W/H/D)			mm	1056460945
	Shipping Dimensions (W/H/D)			mm	11004801045
standard features	Refrigerant		Type	/	R410a
	Compressor		Type	/	Rotary
	Fan Motor		Type	/	DC Motor
	Control		Type	/	Digital LCD and wifi control
	Circulation Pump		Type	/	Pump
	Plate Heat Exchanger		Type	/	Plate Heat Exchanger
	Fin Evaporator		Type	/	Louverd&hydrophilic fin-tubes
	4-way Valve		Type	/	4-way Valve
