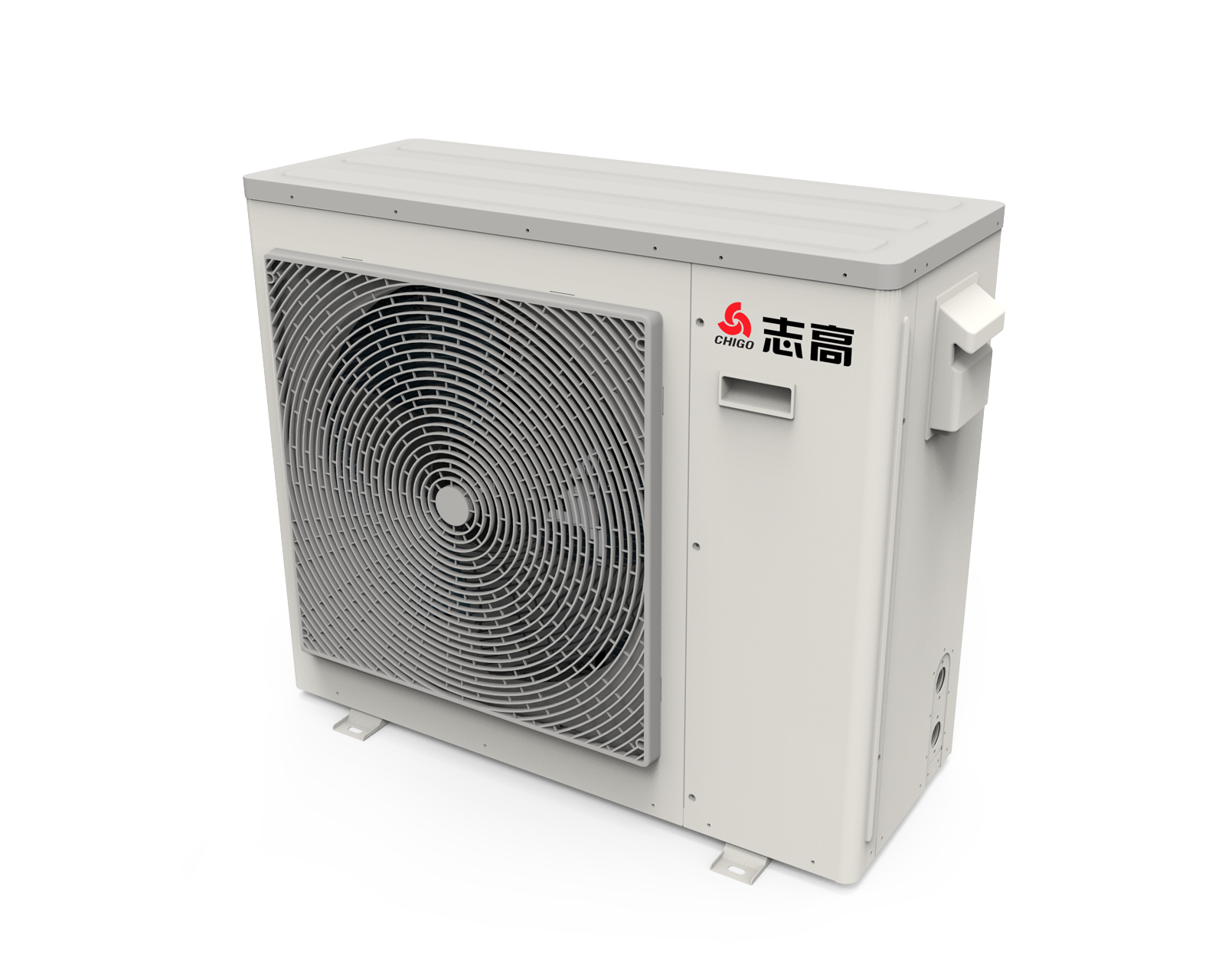

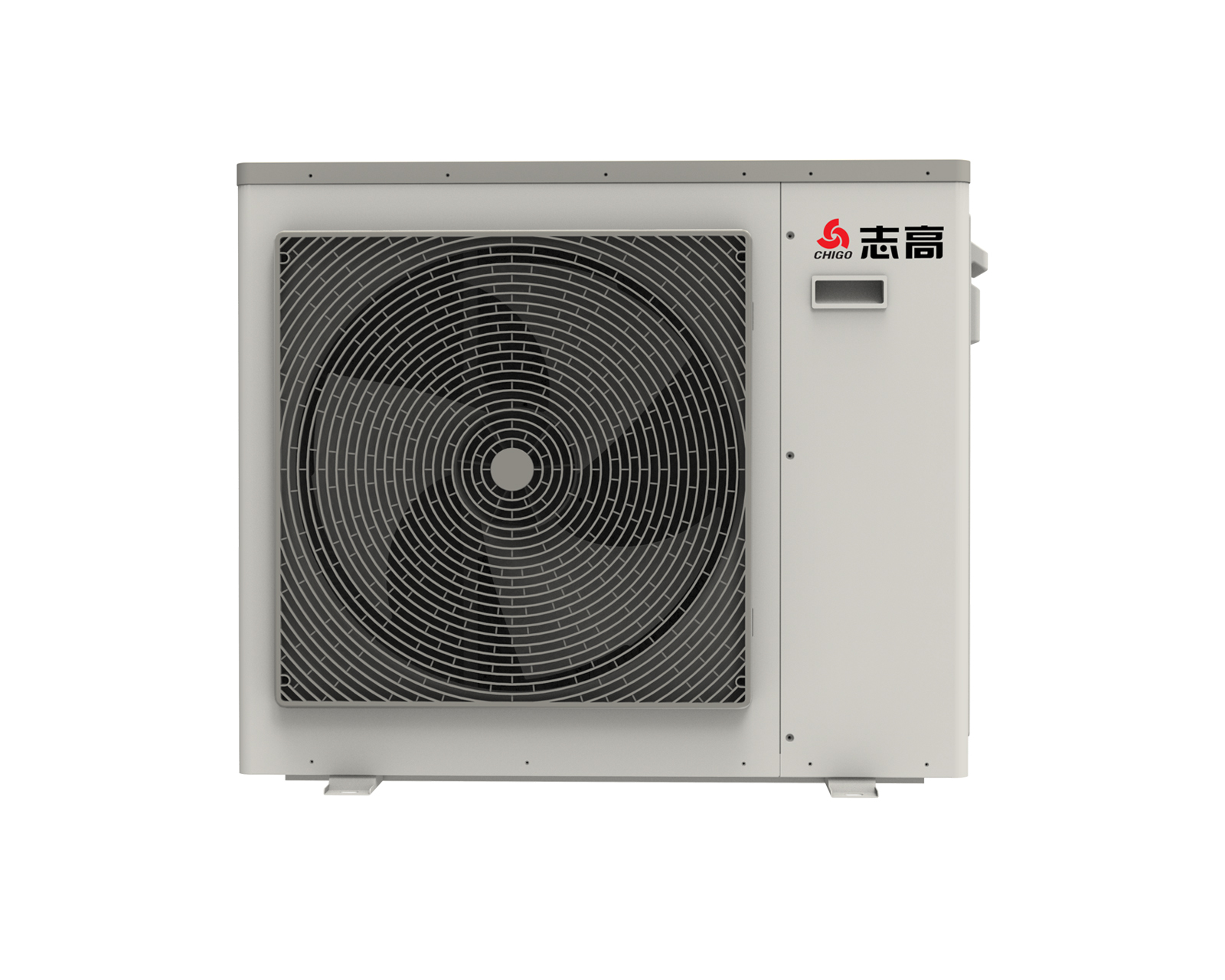

R410a/monoblock-CHP-8Ⅱ/CD4

notice: * A7/W35：Performance Condition: Outdoor air 7℃/6℃, Inlet/Outlet water 30℃/35℃ * A-7/W35：Performance Condition: Outdoor air -7℃/-8℃, Inlet/Outlet water 30℃/35℃ * A-7/W52：Performance Condition: Outdoor air -7℃/-8℃, Inlet/Outlet water 44℃/52℃ * A-10/W55：Performance Condition: Outdoor air -12℃/-10℃, Inlet/Outlet water 47℃/55℃ * A35/W7：Performance Condition: Outdoor air 35℃/24℃, Inlet/Outlet water 7℃/6℃ * A35/W18：Performance Condition: Outdoor air 35℃/24℃, Inlet/Outlet water 23℃/18℃ * The above data is for reference only; specific data is subject to the product nameplate. * The above models and specification are for reference only,we can also make the OEM or ODM as per the customer\\\'s needs.

Model Code					CHP-8Ⅱ/CD4
Power Supply				V/ph/Hz	220-240/1/50
technical parameters	A7/W35	Heating Capacity		KW	8
		Heating Power Input		KW	1.77
		COP		W/W	4.51
	A-7/W35	Heating Capacity		KW	6.82
		Heating Power Input		KW	2.3
		COP		W/W	2.96
	A-7/W52	Heating Capacity		KW	6.3
		Heating Power Input		KW	3.18
		COP		W/W	1.98
	A-10/W55	Heating Capacity		KW	6.02
		Heating Power Input		KW	3.5
		COP		W/W	1.72
	A35/W7	Cooling Capacity		KW	6.4
		Cooling Power Input		KW	2.45
		EER		W/W	2.6
	A35/W18	Cooling Capacity		KW	7.01
		Cooling Power Input		KW	1.69
		EER		W/W	4.2
	SCOP Level (35℃)			/	A++
	SCOP Level (55℃)			/	A++
	Max input cerrent			A	22
	Max input power			KW	4.4
	Sound Power Level (EN12102 35℃)			dB(A)	56
	Net/Gross weight			kg	105/115
	Operating Ambient Temperature			℃	-30~43
	Water Flow			m3/h	1.52m³/h
	Water Connection			mm	DN25
	Unit outdoor Dimensions (W/H/D)			mm	11254801100
	Shipping Dimensions (W/H/D)			mm	11705001200
standard features	Refrigerant		Type	/	R410a
	Compressor		Type	/	Rotary
	Fan Motor		Type	/	DC Motor
	Control		Type	/	Digital LCD and wifi control
	Circulation Pump		Type	/	Pump
	Plate Heat Exchanger		Type	/	Plate Heat Exchanger
	Fin Evaporator		Type	/	Louverd&hydrophilic fin-tubes
	4-way Valve		Type	/	4-way Valve
