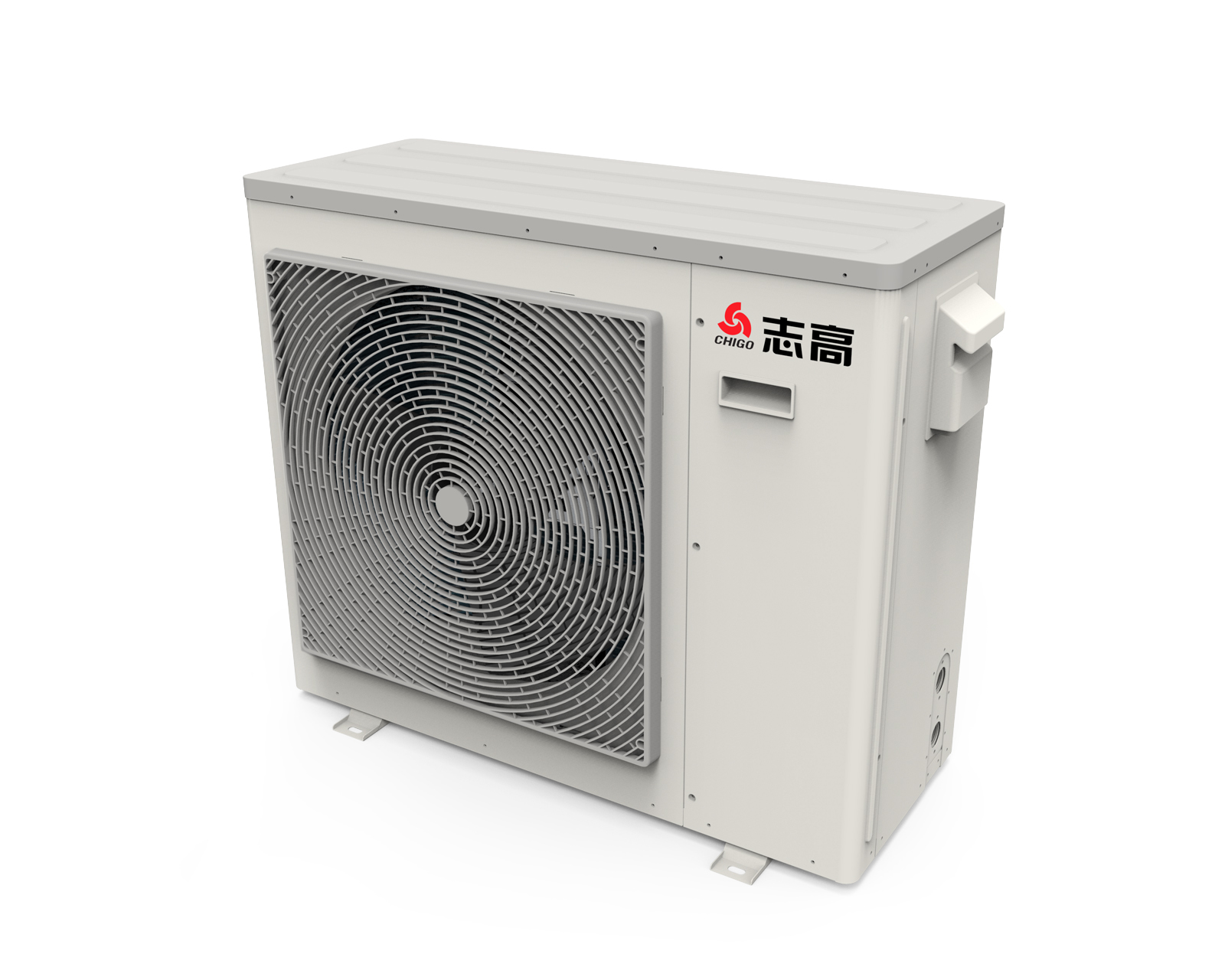

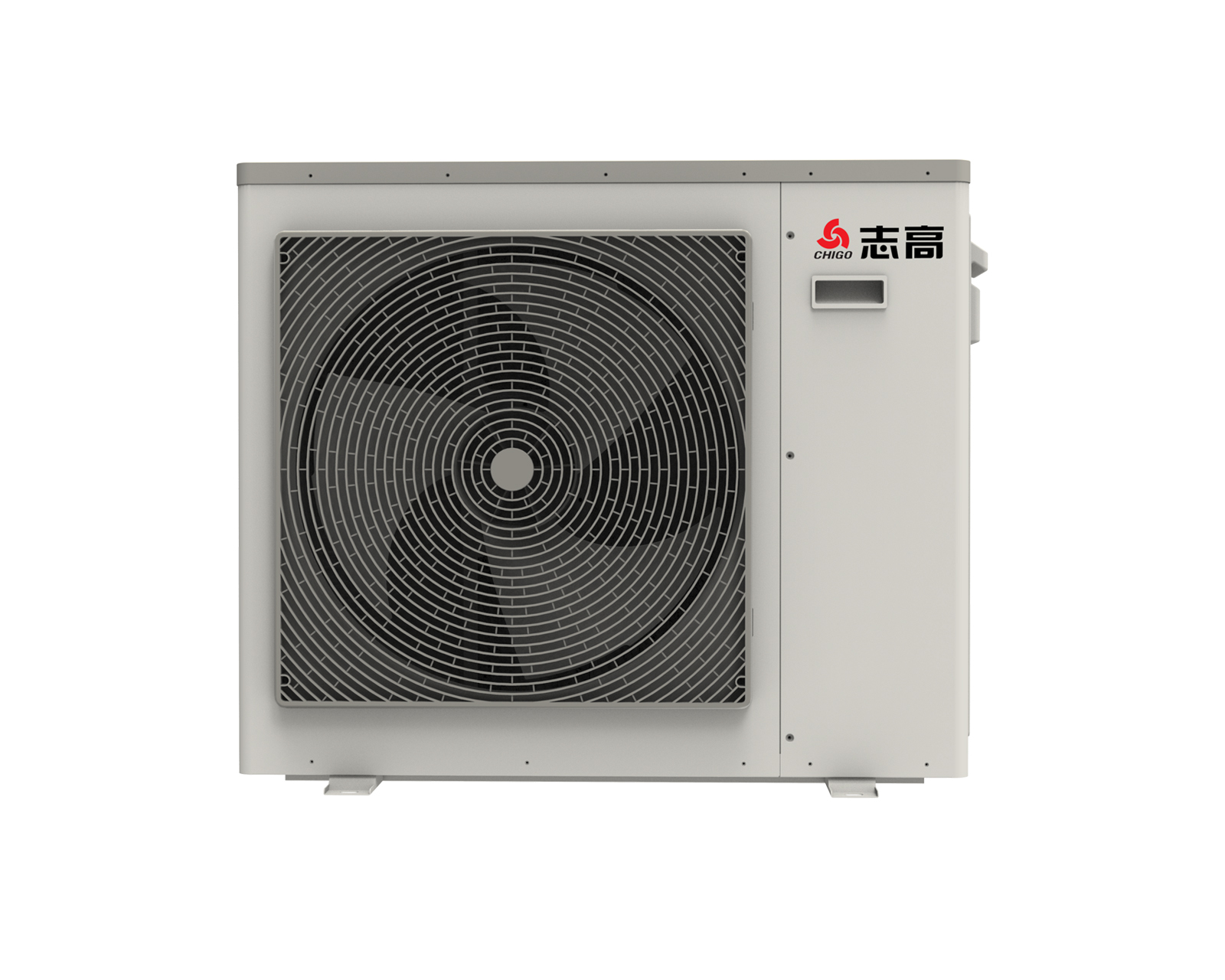

R410a/monoblock-CHP-10Ⅱ/CD4

notice: * A7/W35：Performance Condition: Outdoor air 7℃/6℃, Inlet/Outlet water 30℃/35℃ * A-7/W35：Performance Condition: Outdoor air -7℃/-8℃, Inlet/Outlet water 30℃/35℃ * A-7/W52：Performance Condition: Outdoor air -7℃/-8℃, Inlet/Outlet water 44℃/52℃ * A-10/W55：Performance Condition: Outdoor air -12℃/-10℃, Inlet/Outlet water 47℃/55℃ * A35/W7：Performance Condition: Outdoor air 35℃/24℃, Inlet/Outlet water 7℃/6℃ * A35/W18：Performance Condition: Outdoor air 35℃/24℃, Inlet/Outlet water 23℃/18℃ * The above data is for reference only; specific data is subject to the product nameplate. * The above models and specification are for reference only,we can also make the OEM or ODM as per the customer\\\'s needs.

Model Code					CHP-10Ⅱ/CD4
Power Supply				V/ph/Hz	220-240/1/50
technical parameters	A7/W35	Heating Capacity		KW	10
		Heating Power Input		KW	2.32
		COP		W/W	4.31
	A-7/W35	Heating Capacity		KW	7.96
		Heating Power Input		KW	2.98
		COP		W/W	2.67
	A-7/W52	Heating Capacity		KW	7.16
		Heating Power Input		KW	3.65
		COP		W/W	1.96
	A-10/W55	Heating Capacity		KW	7.01
		Heating Power Input		KW	4.27
		COP		W/W	1.64
	A35/W7	Cooling Capacity		KW	7.9
		Cooling Power Input		KW	2.97
		EER		W/W	2.7
	A35/W18	Cooling Capacity		KW	8.7
		Cooling Power Input		KW	1.95
		EER		W/W	4.5
	SCOP Level (35℃)			/	A++
	SCOP Level (55℃)			/	A++
	Max input cerrent			A	26
	Max input power			KW	5.3
	Sound Power Level (EN12102 35℃)			dB(A)	58
	Net/Gross weight			kg	105/115
	Operating Ambient Temperature			℃	-30~43
	Water Flow			m3/h	1.52m³/h
	Water Connection			mm	DN25
	Unit outdoor Dimensions (W/H/D)			mm	11254801100
	Shipping Dimensions (W/H/D)			mm	11705001200
standard features	Refrigerant		Type	/	R410a
	Compressor		Type	/	Rotary
	Fan Motor		Type	/	DC Motor
	Control		Type	/	Digital LCD and wifi control
	Circulation Pump		Type	/	Pump
	Plate Heat Exchanger		Type	/	Plate Heat Exchanger
	Fin Evaporator		Type	/	Louverd&hydrophilic fin-tubes
	4-way Valve		Type	/	4-way Valve
