notice: * A7/W35：Performance Condition: Outdoor air 7℃/6℃, Inlet/Outlet water 30℃/35℃ * A-7/W35：Performance Condition: Outdoor air -7℃/-8℃, Inlet/Outlet water 30℃/35℃ * A-7/W52：Performance Condition: Outdoor air -7℃/-8℃, Inlet/Outlet water 44℃/52℃ * A-10/W55：Performance Condition: Outdoor air -12℃/-10℃, Inlet/Outlet water 47℃/55℃ * A35/W7：Performance Condition: Outdoor air 35℃/24℃, Inlet/Outlet water 7℃/6℃ * A35/W18：Performance Condition: Outdoor air 35℃/24℃, Inlet/Outlet water 23℃/18℃ * The above data is for reference only; specific data is subject to the product nameplate. * The above models and specification are for reference only,we can also make the OEM or ODM as per the customer\'s needs.

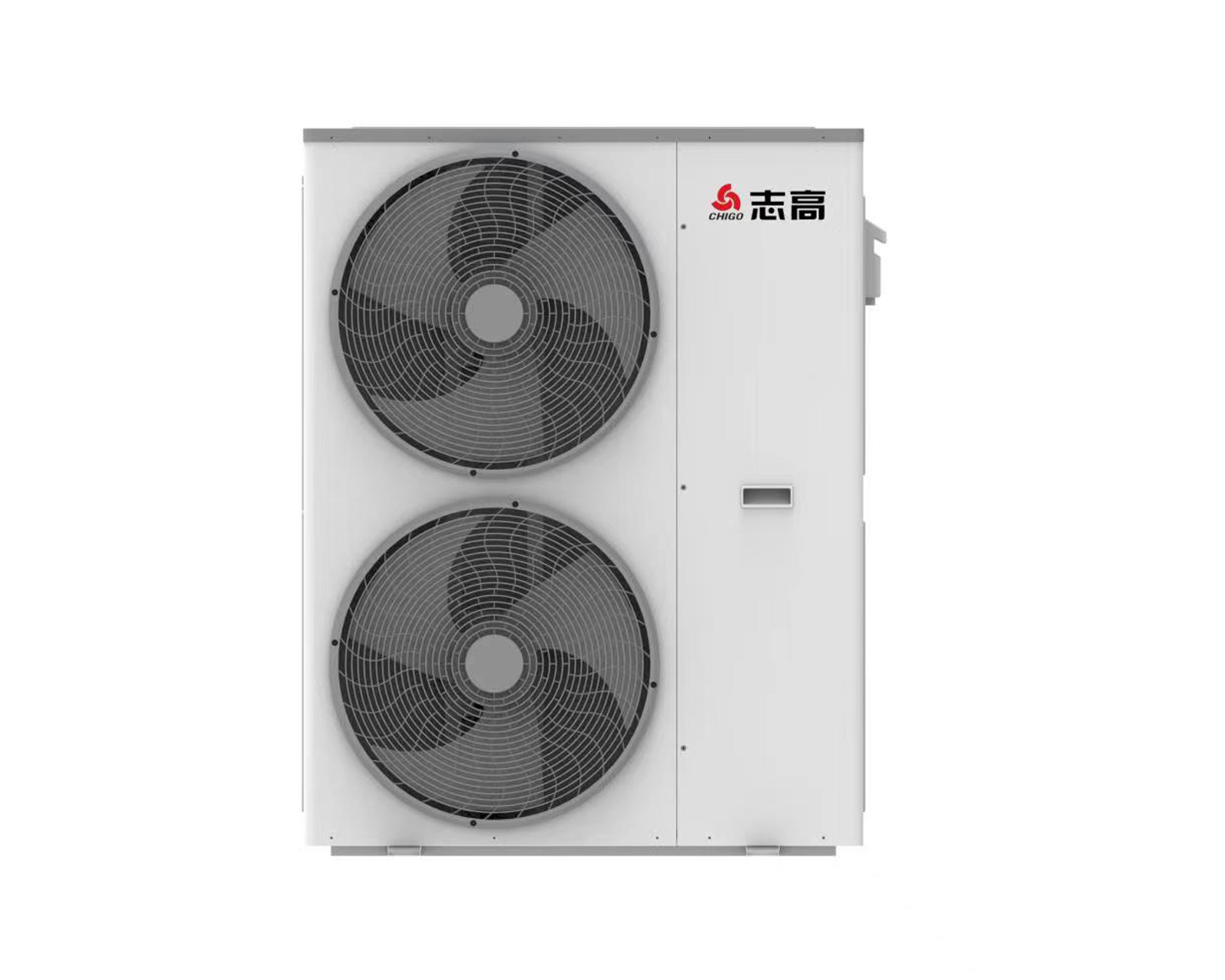

| Model Code | CHP-14Ⅲ/CD4 | ||||
| Power Supply | V/ph/Hz | 380-420/3/50 | |||
| technical parameters | A7/W35 | Heating Capacity | KW | 14 | |
| Heating Power Input | KW | 3.24 | |||
| COP | W/W | 4.32 | |||
| A-7/W35 | Heating Capacity | KW | 12.3 | ||
| Heating Power Input | KW | 4.29 | |||
| COP | W/W | 2.87 | |||
| A-7/W52 | Heating Capacity | KW | 11.7 | ||
| Heating Power Input | KW | 5.91 | |||
| COP | W/W | 1.98 | |||
| A-10/W55 | Heating Capacity | KW | 10.6 | ||
| Heating Power Input | KW | 5.89 | |||
| COP | W/W | 1.8 | |||
| A35/W7 | Cooling Capacity | KW | 12 | ||
| Cooling Power Input | KW | 4.6 | |||
| EER | W/W | 2.6 | |||
| A35/W18 | Cooling Capacity | KW | 12.6 | ||
| Cooling Power Input | KW | 3.17 | |||
| EER | W/W | 4.0 | |||
| SCOP Level (35℃) | / | A++ | |||
| SCOP Level (55℃) | / | A++ | |||
| Max input cerrent | A | 15 | |||
| Max input power | KW | 7.4 | |||
| Sound Power Level (EN12102 35℃) | dB(A) | 62 | |||
| Net/Gross weight | kg | 125/140 | |||
| Operating Ambient Temperature | ℃ | -30~43 | |||
| Water Flow | m3/h | 1.98m³/h | |||
| Water Connection | mm | DN25 | |||
| Unit outdoor Dimensions (W/H/D) | mm | 1150*480*1480 | |||
| Shipping Dimensions (W/H/D) | mm | 1200*500*1580 | |||
| standard features | Refrigerant | Type | / | R410a | |
| Compressor | Type | / | Rotary | ||
| Fan Motor | Type | / | DC Motor | ||
| Control | Type | / | Digital LCD and wifi control | ||
| Circulation Pump | Type | / | Pump | ||
| Plate Heat Exchanger | Type | / | Plate Heat Exchanger | ||
| Fin Evaporator | Type | / | Louverd&hydrophilic fin-tubes | ||
| 4-way Valve | Type | / | 4-way Valve | ||
