Selling points of heating
One machine for multiple purposes, heating in winter, cooling in summer
Patented defrosting technology, more stable heating
Under low temperature environment, the outlet water temperature can still reach 50 ℃, which can not only meet the requirements of floor heating and fan panel heating water temperature, but also meet the requirements of radiator heating water temperature
Modular design to meet different heating needs
Twelve protection functions, fault self diagnosis and information prompt, faster and more convenient after-sales maintenance
Adopt environment-friendly refrigerant, zero emission to the atmosphere
The technology of air supplement and enthalpy increase is adopted to ensure stable operation above - 30 ℃ and low operating noise;
Applicable to: household and central heating (such as families, schools, governments, hospitals, factories, hotels, villas, beauty salons, etc.)

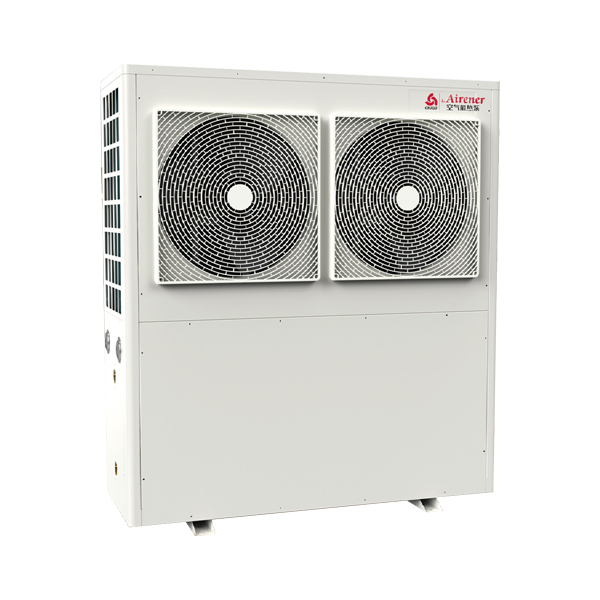

Model @ @ DKZN-24S/DF
Heating capacity under rated working condition (7 ° C) @ @ 22000W
Input power/current @ @ 6567W/30.8A
COP
3.35W/W
Heating capacity under nominal working condition (- 12 ° C) @ @ 14000W
Input power/current @ @ 6334W/29.7A
COP
2.21W/W
IPLV(H)
2.72W/W
Refrigerating capacity under refrigeration condition (35 ° C) @ @ 14000W
Input power/current @ @ 5577W/26.2A
COP
2.51W/W
Recommended heating area @ @ 100~160m ³
Recommended cooling area @ @ 50~90m ³
Power specification @ @ 220V/50Hz
Operating temperature range @ @ - 30~43 ° C
Refrigerant @ @ R410N
Compressor @ @ rotor compressor x2

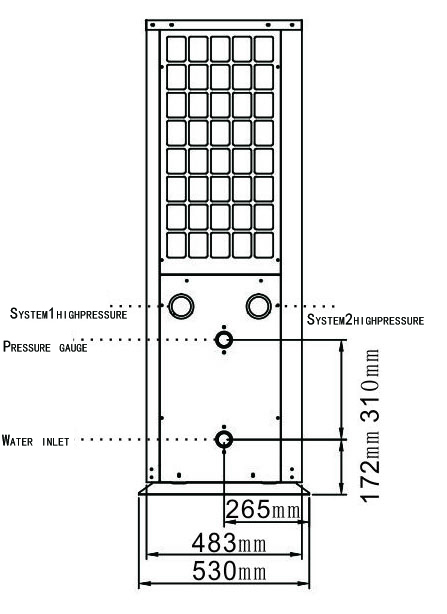

Waterway interface @ @ DN40 (internal thread)
Water flow (- 12 ° C) @ @ 2.41m ³/ h
Heat exchanger water side @ @ high efficiency tank
Wind side @ @ fin heat exchanger
Noise @ @ 64dB (A)
Fan type @ @ axial flow fan x2
Air outlet form @ @ side outlet

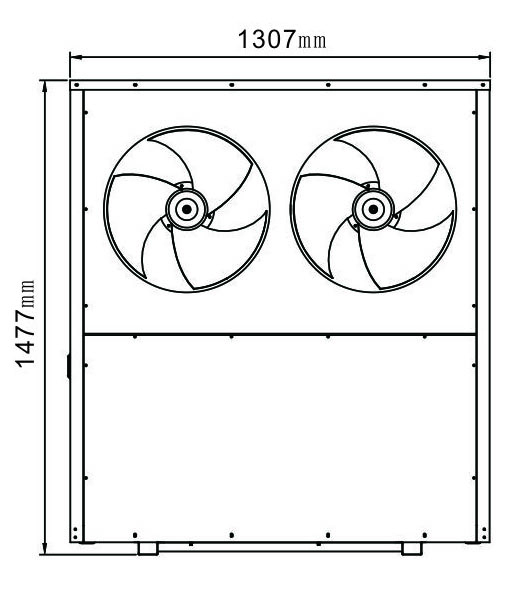

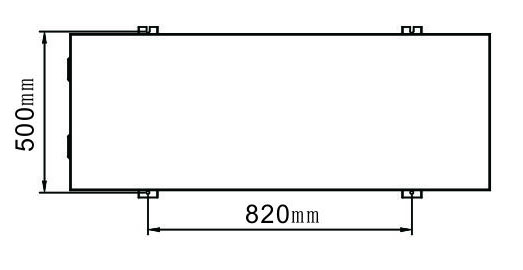

Boundary dimension @ @ 1307x500x1477mm (including footing)
Net weight @ @ 240kg
| Technical parameters of heating constant frequency low temperature cooling and heating water circulation | ||
| Product model | DKZN-24S/DF（380） | |
Rated working condition (7℃) | Heating capacity | 22000W |
| Input power/current | 6567W/12.2A | |
| COP | 3.35W/W | |
Nominal working condition (-12℃) | Heating capacity | 14000W |
| Input power/current | 6334W/11.7A | |
| COP | 2.21W/W | |
| IPLV(H) | 2.72W/W | |
Refrigeration condition (35℃) | Refrigerating capacity | 14000W |
| Input power/current | 5577W/10.3A | |
| COP | 2.51W/W | |
| Power specifications | 380V/50Hz | |
| Operating temperature range | -30～43℃ | |
| cryogen | R410A | |
| Waterway interface | DN40 (internal tooth) | |
| Water flow (35 ℃ cooling is recommended) | 2.41m3/h | |
Heat exchanger | Water side | High efficiency tank |
| Windward side | Finned heat exchanger | |
| noise | 64dB(A) | |
| Fan type | Axial flow fan × two | |
| Air outlet form | be born of a concubine | |
| Overall dimensions | one thousand three hundred and seven × five hundred × 1477mm (including footing) | |
| Net weight | 240kg | |
Rated working condition: under the ambient temperature of 7 ℃/6 ℃ and the effluent temperature of 45 ℃; Nominal working condition: under the ambient temperature of - 12 ℃/- 14 ℃, the water temperature is 41 ℃; Refrigeration working condition: under the ambient temperature of 35 ℃, the water temperature is 7 ℃; The above parameters are for reference only, see the nameplate of the product body for details | ||
