DKZCN-9/DFA

  • 1

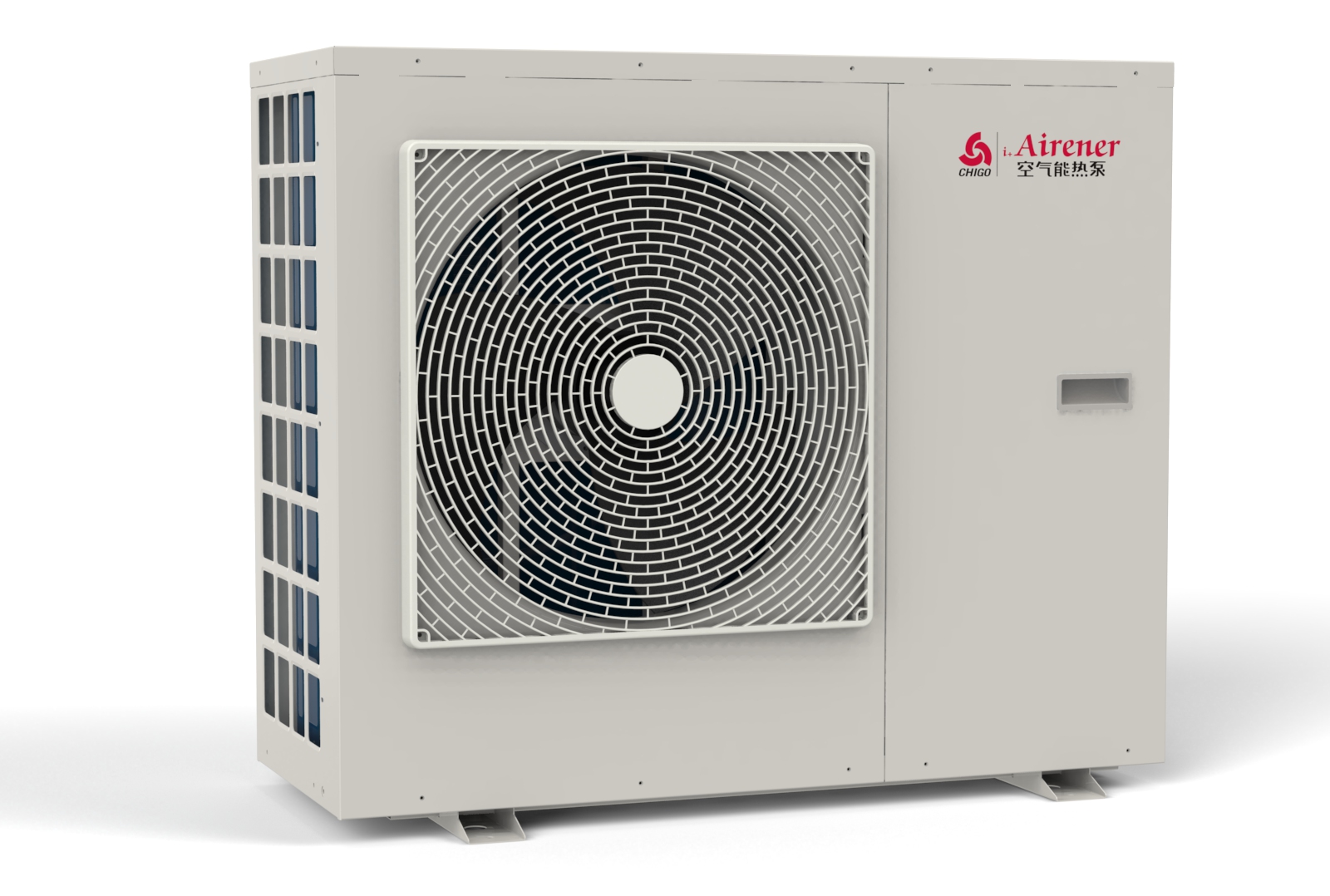

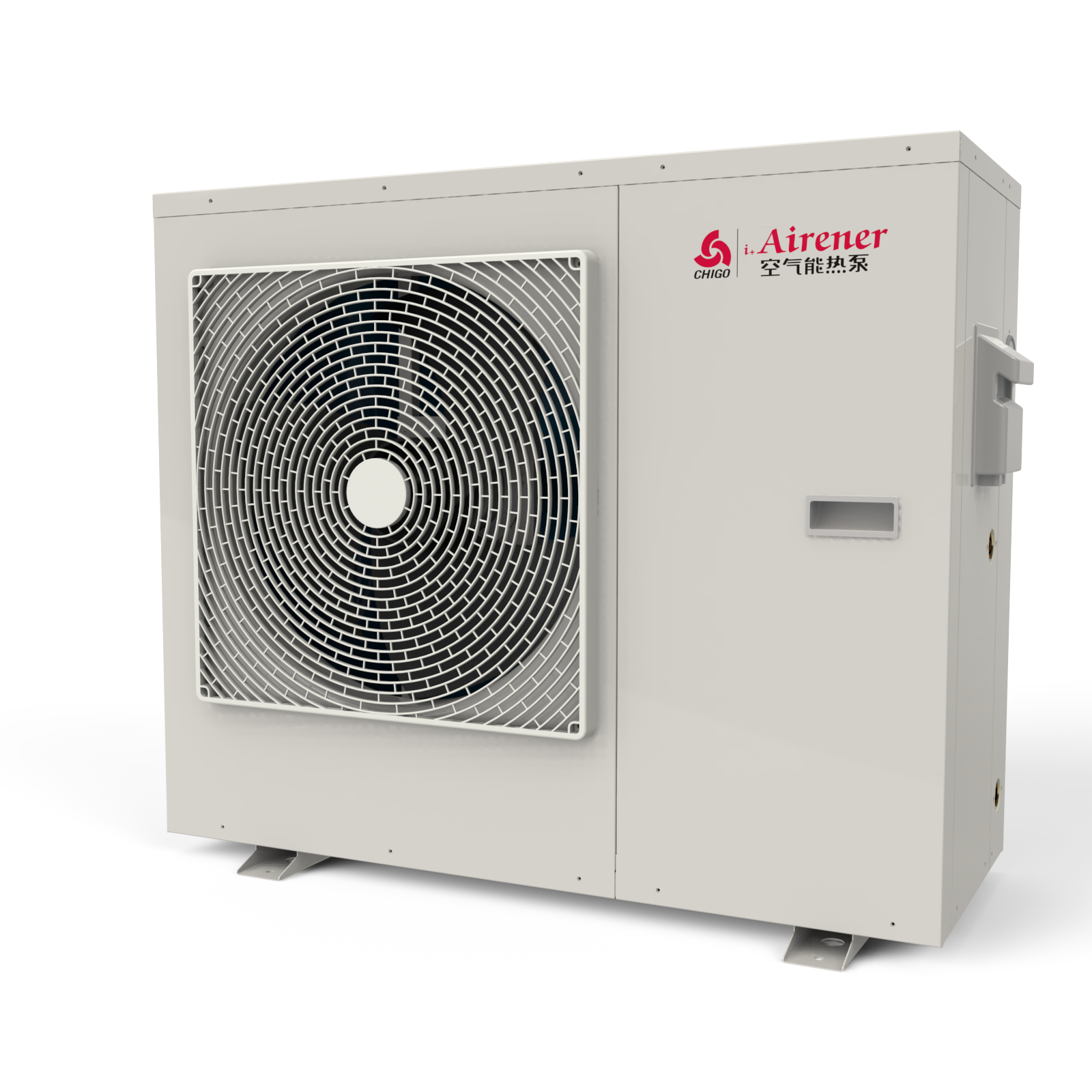

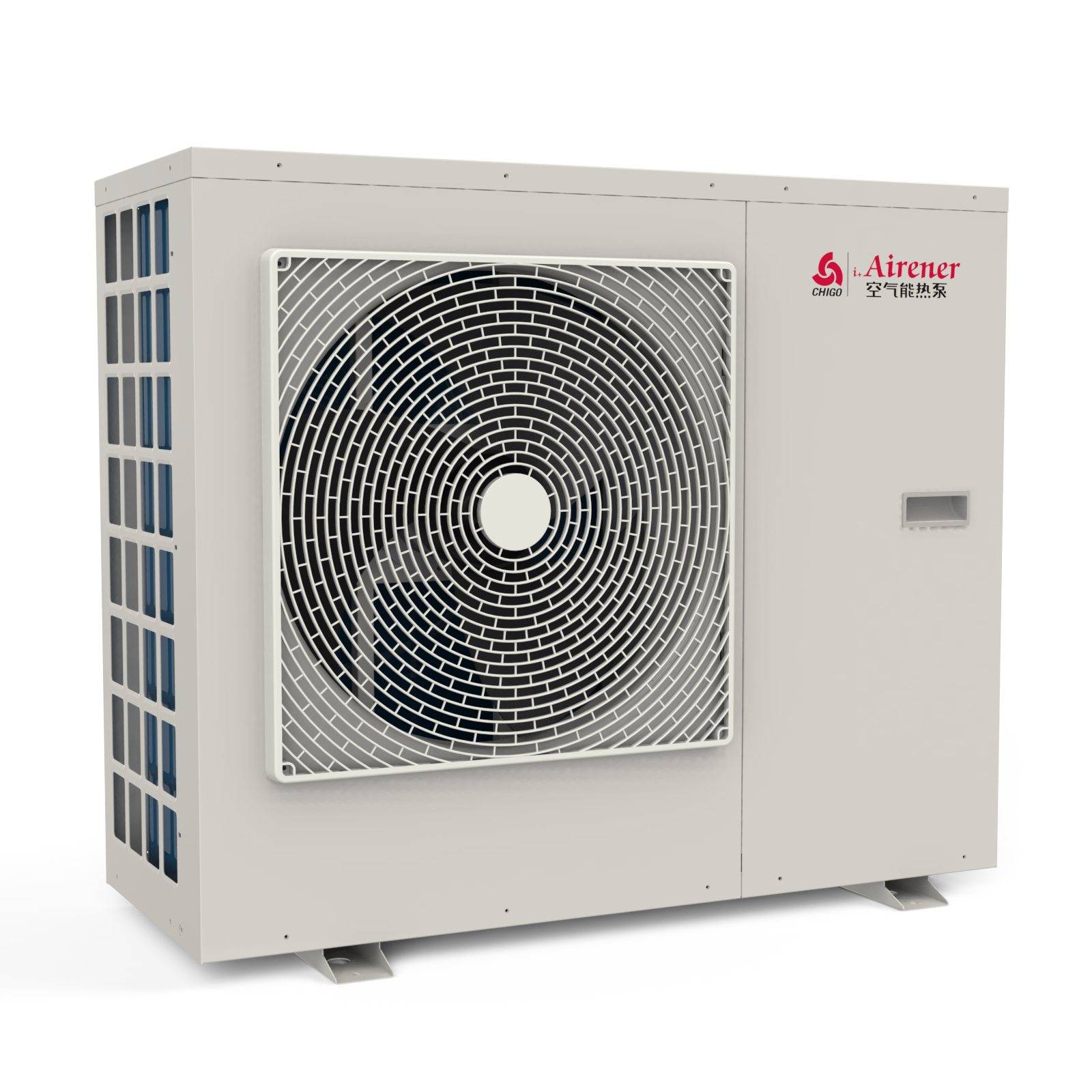

    Product main drawing

  • 2

    Product features

  • 3

    Detail drawing1

  • 4

    Detail drawing2

  • 5

    Detail drawing3

  • 6

    Detail drawing4

  • 7

    Detail drawing5

  • 8

    Detail drawing6

  • 9

    Detail drawing7

  • 10

    Detail drawing8

  • 11

    Detail drawing9

  • 12

    Detail drawing10

  • 13

    Detail drawing11

  • Selling points of heating

    One machine for multiple purposes, heating in winter, cooling in summer

    Patented defrosting technology, more stable heating

    Under low temperature environment, the outlet water temperature can still reach 50 ℃, which can not only meet the requirements of floor heating and fan panel heating water temperature, but also meet the requirements of radiator heating water temperature

    Modular design to meet different heating needs

    Twelve protection functions, fault self diagnosis and information prompt, faster and more convenient after-sales maintenance

    Adopt environment-friendly refrigerant, zero emission to the atmosphere

    The technology of air supplement and enthalpy increase is adopted to ensure stable operation above - 30 ℃ and low operating noise;

    Applicable to: household and central heating (such as families, schools, governments, hospitals, factories, hotels, villas, beauty salons, etc.)






technical parameter

  • 型号

    DKZCN-9/DFA

  • 额定工况(7°C) 制热量

    8200W

  • 输入功率/电流

    2400W/11.2A

  • COP

    3.36W/W

  • 名义工况（-12°C） 制热量

    6000W

  • 输入功率/电流

    2597W/12.2A

  • COP

    2.31W/W

  • IPLV(H)

    2.71W/W

  • 制冷工况（35°C） 制冷量

    5300W

  • 输入功率/电流

    2111W/9.9A

  • COP

    2.51W/W

  • 建议供热面积

    40~60m³

  • 电源规格

    220V/50Hz

  • 工作温度范围

    -30~43°C

  • 制冷剂

    R410A

  • 压缩机

    变频（滚动活塞）旋转式压缩机x1

  • 水路接口

    DN25（内牙）

  • 水流量

    1.03m³/h

  • 换热器 水侧

    高效罐

  • 风侧

    翅片式换热器

  • 噪音

    63dB(A)

  • 风机类型

    轴流风机x1

  • 出风形式

    侧出

  • 外形尺寸

    1040x450x850mm（含底脚）

  • 净重

    93kg

Technical parameters of heating constant frequency low temperature cooling and heating water circulation
  Product modelDKZCN-9/DFA


Rated working condition

(7℃)


Heating capacity8200W
Input power/current2440W/11.2A
COP3.36W/W


Nominal working condition

(-12℃)


Heating capacity5500W
Input power/current2488W/11.7A
COP2.21W/W
IPLV(H)2.71W/W


Refrigeration condition

(35℃)


Refrigerating capacity5000W
Input power/current1992W/9.3A
COP2.51W/W
Power specifications220V/50Hz
Operating temperature range-30～43℃
cryogenR22
Waterway interfaceDN25 (internal tooth)
Water flow (35 ℃ cooling is recommended)0.95m³/h

Heat exchanger

Water sideHigh efficiency tank
Windward sideFinned heat exchanger
noise63dB(A)
Fan typeAxial flow fan × one
Air outlet formbe born of a concubine

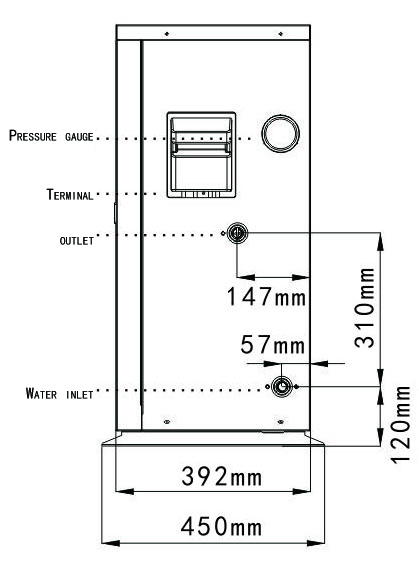

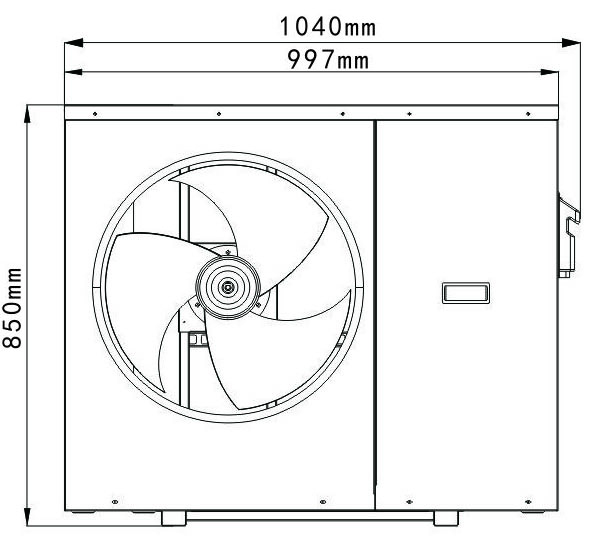

Overall dimensions

one thousand and forty × four hundred × 850mm (including footing)

Net weight93kg

Rated working condition: under the ambient temperature of 7 ℃/6 ℃ and the effluent temperature of 45 ℃;

Nominal working condition: under the ambient temperature of - 12 ℃/- 14 ℃, the water temperature is 41 ℃;

Refrigeration working condition: under the ambient temperature of 35 ℃, the water temperature is 7 ℃;

The above parameters are for reference only, see the nameplate of the product body for details
